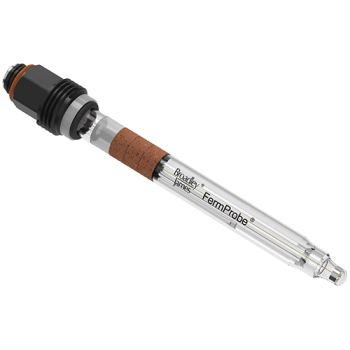

F-935 ORP FermProbe with S8 Metric Cap

B2–LS104–020–M30

B5-13202-5T7

B5-11005-07-J

B2-LS103-015-M30

B4-21006-020-M10

B4-35005-020-M10

B4-41001-2T9-M10

B4-21005-015-M10

B4-35004-015-M10

B4-31024-8T9-B06

B4-31004-8T9-B06

B4-32023-5T7-B03

B4-21004-007-M10

B4-35002-005-M10

B4-31003-5T7-B06

B4-53008-020-M10

B4-22005-020-M10

B4-12004-020-M10

B2-LS202-020-M69

B5-11315-020

B5-11007-20-R

B4-82004-8T9-M27

B4-53007-015-M10

B4-22004-015-M10

B4-12003-015-M10

B4-44002-8T9-M27

B4-42002-8T9-M27

B4-72003-8T9-M27

B4-32005-8T9-B03

B4-32004-8T9-B03

B2-LS201-015-M69

B5-11314-015

B5-11006-15-R

B5-13103-8T9

B5-12103-8T9

B5-11355-07J

B4-21002-003-M10

B4-31002-2T3-B06

B4-35001-2T3-M06

B4-53006-007-M10

B4-22003-007-M10

B4-12002-007-M10

B4-32003-5T7-B03

B2-LS102-007-M30

B5-11313-007

B5-11004-07-R

B4-22002-005-M10

B5-11312-005

B5-11003-05-R

B5-13102-5T7

B5-12102-5T7

B5-11321-03J

B5-11002-03-J

B5-13201-003

B4-82002-2T7-G34

B4-82001-2T7-M18

B4-81003-2T9-M12

B4-81002-2T9-M10

B4-81001-2T3-M06

B5-51001-2T9-006

B4-53005-2T5-M10

B4-23001-2T9-M10

B4-22202-015

B4-22001-003-M10

B4-12001-2T5-M10

B4-44001-2T7-M18

B4-42001-2T7-M18

B4-72002-2T7-G34

B4-72001-2T7-M18

B4-32002-2T3-B03

B2-LS101-2T5-M30

B5-11311-2T3

B5-11001-03-R

B5-13101-003

B5-12101-003

  • Fits all suitable FermProbe housings
  • Works with standard FermProbe cables
  • Steam sterilizable to 135º
  • Compatible with pH transmitters that have a millivolt display mode, such as the Models 30, 40, and 50
  • Uses standard metric S8 cap to fit European housings
Category:

Reasons to Measure ORP in Fermentation Media

The metabolic activity of microorganisms depends on many factors, including the ORP potential of the culture environment. Measuring the ORP potential allows the vessel operator to monitor the addition of reducing agents while ensuring that the potential is in the proper range for initiation of growth. It is also important to monitor the ORP potential just before inoculation.

Ph electrode and Redox electrode

Anaerobic fermentation

ORP sensors are most commonly used to maintain anaerobic conditions in a culture media. They can be used to measure trace amounts (<1 ppm) of dissolved oxygen, at levels that are too low for D.O. sensors.

Downstream Processing

Sometimes used in steps performed downstream of the fermentation process, ORP sensors can monitor changes in concentration or the absence or presence of specific chemicals. Monitoring the ORP potential is an effective way of tracking chemical conversions in the process.

Protein folding

The close regulation of ORP potential is crucial to allow efficient formation of disulfide bonds, which facilitate folding and the stability of the folded protein. Overly oxidizing conditions can result in misfolding due to the formation of incorrect bonds.

Metabolic pathways

Measuring the ORP potential is an effective way to determine its influence on the metabolic pathways of microorganisms. This is useful for substrate utilization or the production of specific metabolites.

Specification

  • ± 5000 mV range
  • Steam sterilizable to 135°C
  • 150 psig maximum pressure
  • Double junction, Ag-AgCl reference system
  • Metric Pg13.5 threaded disconnect cap

For a K9 cable connector use the F-995 Redox FermProbe instead. For an S8 cable connector but with a T-Pull handle you'll need the F-915 Redox FermProbe.

How to Order a Redox Electrode

  1. Choose Electrode Model – If the electrode needs to fit an existing cable, check the cable connector and note its color. If the cable connector is black and has an S8 connector, use the F-915 or this F-935 Redox FermProbe. If the cable connector is red or orange and has a K9 connector, use the F-995 Redox FermProbe.
  2. Choose Electrode Length – If you have already chosen a housing, select an electrode length with the same Class designation as the housing. The housing ordering information box also lists the correct electrode length to order. If you have not already chosen the housing, please review the recommendations next to each electrode model below.
  3. Confirm Cable Length and Connector.

Model F-935 requires disconnect cable and connector assemblies.

Series F-900 Redox FermProbes

Electrode Model Class Use with these Housing Models Electrode Length Electrode Part Number
F-915 A 320, 330, 326, 336, 350, 357, 370 130 mm F-915-B130-DH
F-935 D 325, 335 120 mm F-935-B120-DH
F-995 D 325, 335 120 mm F-995-B120-DK

Recommended Housings

The F-935 Redox FermProbe has a metric Pg13.5 threaded polymer cap allowing it to be used with European style housings.We would recommend the following Broadley-James sensor housings for use with the  Model F-935 Redox FermProbe:

Compatible Cables

The F-935 Redox FermProbe uses a standard S8 detachable cable connection. We recommend the following cables for use with it:

Cable Type Sensor Connector & Device Connector Device Terminal
HP Plug to BNC Plug, Type A HP Plug to BNC Plug Type A BNC jack
HP Plug to BNC Plug, Type M HP Plug to BNC Plug Type M BNC jack
HP Plug to DIN Plug, Type M HP Plug to DIN Plug Type M DIN jack
 HP Plug to Crimped Ferrules, Type M  HP Plug to Crimped Ferrules Type M  terminal block
 HP Plug to Ferrules, Solution Ground, Type N
 HP Plug to Ferrules Solution Ground Type N  terminal block

Additional information

Application

Bioprocess

Cap / Connector

Pg13.5, S8

Connection Type / Size

Pg13.5

Features

Autoclavable, Steam Sterilizable

Installation

In-Line

Measurement

ORP (Redox)

Regulatory

FDA Compliant

Size / Type

12 mm

  • The terms are interchangeable in meaning: ORP = Oxidation-Reduction Potential (Redox)
  • The term ORP is more commonly used for bioprocess applications in Europe and the U.S.
  • The term Redox is more commonly used for industrial chemical process applications in the U.S.
  • The ORP potential of a media is related to the overall availability of electrons in the media, specifically the ratio of positive and negative ions in the solution. Note that ORP measurements vary significantly with changing pH.
