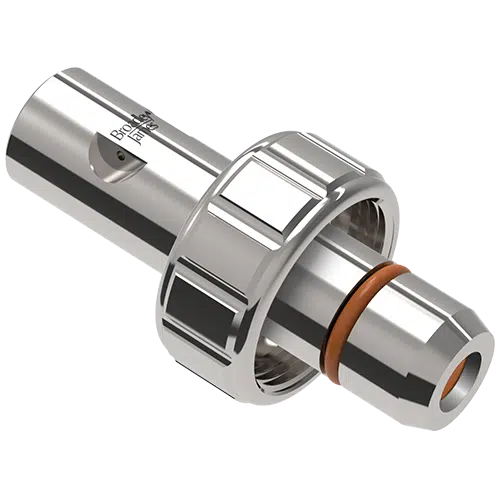

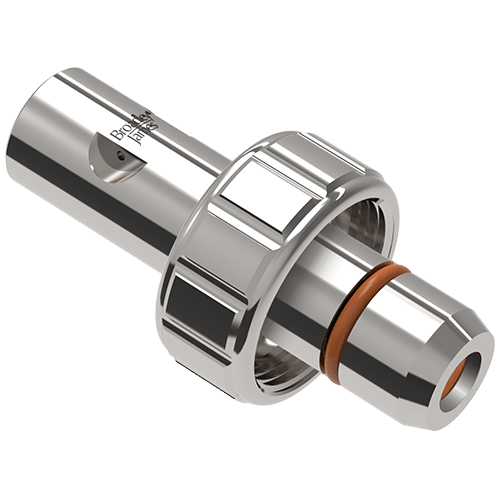

Model 325 Housing (Standard 25 mm port – Pg13.5)

Model 325 Housing (Standard 25 mm port – Pg13.5)

B2–LS104–020–M30

B5-13202-5T7

B5-11005-07-J

B2-LS103-015-M30

B4-21006-020-M10

B4-35005-020-M10

B4-41001-2T9-M10

B4-21005-015-M10

B4-35004-015-M10

B4-31024-8T9-B06

B4-31004-8T9-B06

B4-32023-5T7-B03

B4-21004-007-M10

B4-35002-005-M10

B4-31003-5T7-B06

B4-53008-020-M10

B4-22005-020-M10

B4-12004-020-M10

B2-LS202-020-M69

B5-11315-020

B5-11007-20-R

B4-82004-8T9-M27

B4-53007-015-M10

B4-22004-015-M10

B4-12003-015-M10

B4-44002-8T9-M27

B4-42002-8T9-M27

B4-72003-8T9-M27

B4-32005-8T9-B03

B4-32004-8T9-B03

B2-LS201-015-M69

B5-11314-015

B5-11006-15-R

B5-13103-8T9

B5-12103-8T9

B5-11355-07J

B4-21002-003-M10

B4-31002-2T3-B06

B4-35001-2T3-M06

B4-53006-007-M10

B4-22003-007-M10

B4-12002-007-M10

B4-32003-5T7-B03

B2-LS102-007-M30

B5-11313-007

B5-11004-07-R

B4-22002-005-M10

B5-11312-005

B5-11003-05-R

B5-13102-5T7

B5-12102-5T7

B5-11321-03J

B5-11002-03-J

B5-13201-003

B4-82002-2T7-G34

B4-82001-2T7-M18

B4-81003-2T9-M12

B4-81002-2T9-M10

B4-81001-2T3-M06

B5-51001-2T9-006

B4-53005-2T5-M10

B4-23001-2T9-M10

B4-22202-015

B4-22001-003-M10

B4-12001-2T5-M10

B4-44001-2T7-M18

B4-42001-2T7-M18

B4-72002-2T7-G34

B4-72001-2T7-M18

B4-32002-2T3-B03

B2-LS101-2T5-M30

B5-11311-2T3

B5-11001-03-R

B5-13101-003

B5-12101-003

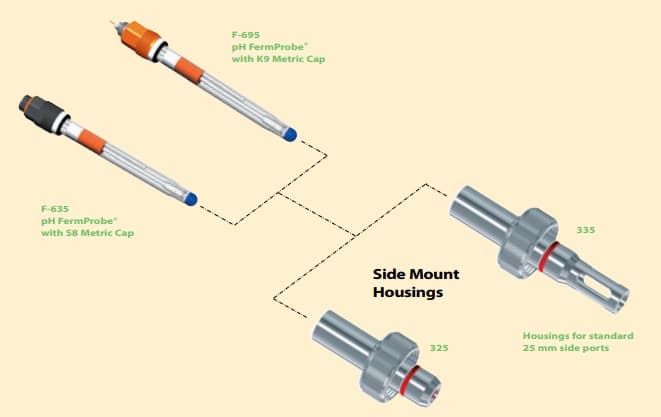

These housings are designed to be used with models F-635 and F-695 Metric FermProbe® electrodes and models D140 and D145 12 mm OxyProbe® sensors. They are also compatible with any sensor that has Pg13.5 threads. These housings fit nearly all standard 25 mm ports found on production and pilot plant vessels. Different housing lengths are available to accommodate various application or vessel requirements.

Category:
Get Quote / More Info

BJC Model 325 Housing 25mm

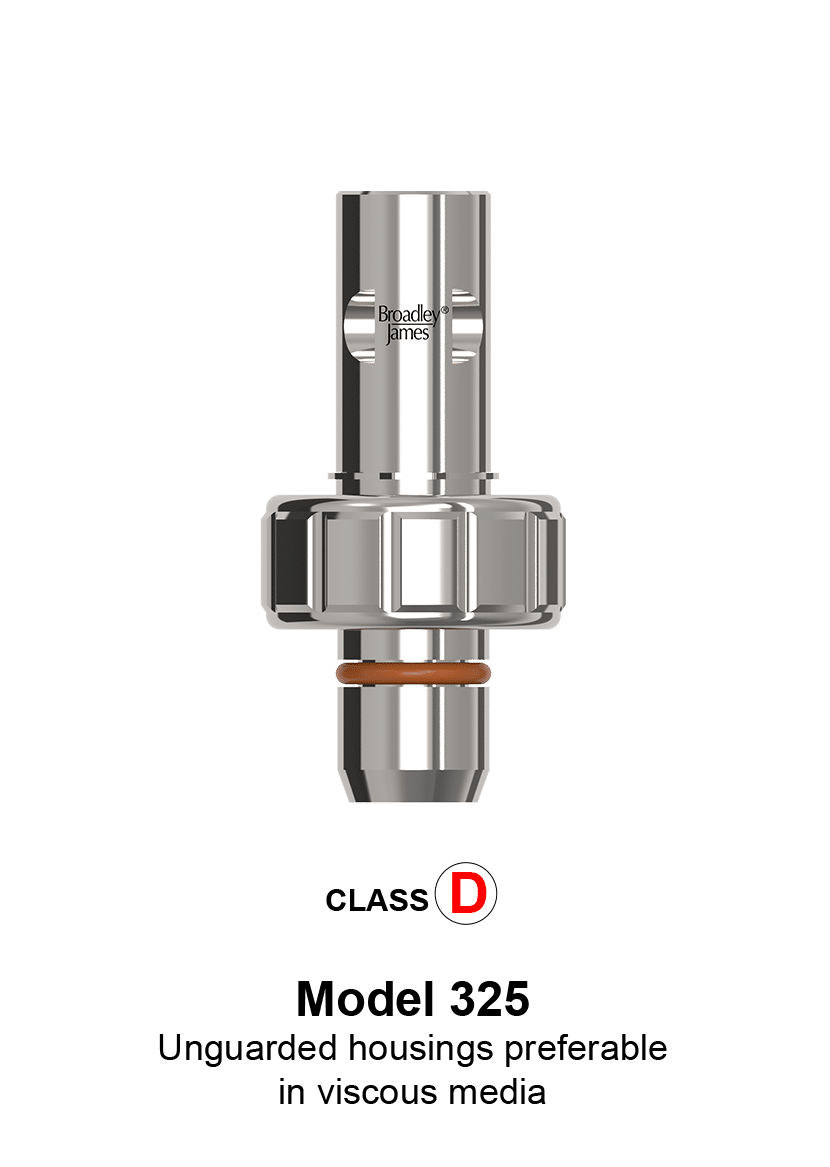

The 325 unguarded electrode housing is designed to be used with F-635 autoclavable pH electrode or F-695 Metric FermProbe® electrodes. The sensor threads directly into this metric housing, eliminating the threaded retainer ring. In order to prevent twisting the cable, the metric FermProbes have a detachable cable.

A guarded version is also available (model 335). Using a guarded housing is highly recommended for pH electrodes to provide maximum protection against damage to the sensing bulb. However, highly viscous media is prone to clog the guard.

The pH electrode or D.O. sensor threads directly into this metric housing, eliminating the need for a threaded retainer nut. In order to prevent twisting the cable, the metric FermProbes have a detachable cable.

Specification

  • 316L stainless steel construction.
  • Serialized for traceability to mill steel specifications.
  • RA32 finish with electropolish on all wetted parts.
  • Permanently secured port retainer ring for additional operator safety.

Additional features

  • Guarded version for rugged handling while protecting the pH glass bulb in a production environment.
  • Guarded version for viscous media also available (model 335)
  • Custom designs and modifications promptly quoted.
Housing Model Class Typical Vessel Insertion Length Used With pH Electrode Models Used With Electrode Length Housing Part Number
Model 325 D 37 mm ( 1.5″) F-695, F-635, F-800, D-140, D-145 120 mm 325-61-H070
Model 325 F 113 mm ( 4.5″) F-695, F-635, F-800, D-140, D-145 200 mm 325-61-H150
    1. Confirm the opening is a standard 25 mm side port (for assistance with this please see our FAQ for ‘How do I choose a housing style’).
    2. Determine whether the application will permit the use of a bulb guard on the housing. The bulb guard is highly recommended for all applications except when the media is very viscous. Highly viscous media is prone to clog the guard. If the application will permit the use of a bulb guard then please see Model 335 Guarded Housing instead.
    3. Determine how far the housing and sensor should extend into the vessel.
    4. Confirm the sensor is a metric FermProbe, models D540 or D545 OxyProbe II or European sensor with Pg13.5 threads.
