Commonly used in both the food and pharmaceutical industries, the Model 350 and 357 housings are suitable for sanitary pipe systems with CIP requirements. More often found in downstream processes such as purification.

Category:
Get Quote / More InfoDownload the Technical Info

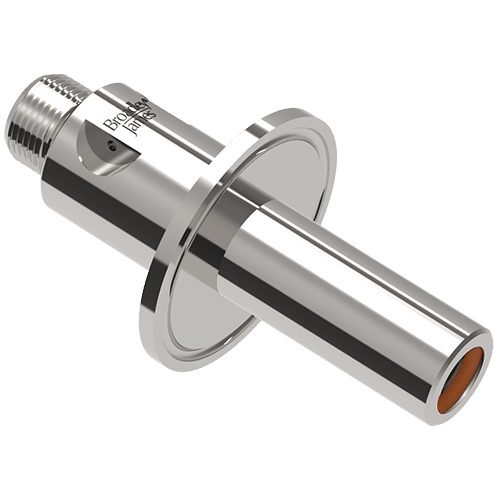

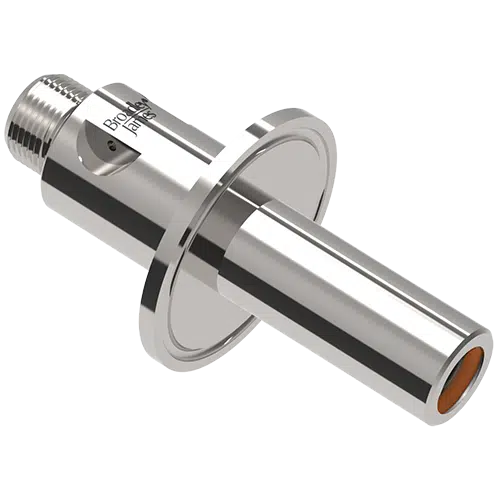

The housings are secured into a sanitary pipe tee with a standard flange clamp sealed with a flange gasket. The pH electrode is then inserted into the housing for on-line measurements. When using a standard sanitary tee, the sensor should be positioned such that the tip of the sensor is in the middle of the process flow. Standard and T-Pull® FermProbes® are both compatible with these housings.

These housing are also compatible with NovAseptic side ports.

Specification

  • 316L stainless steel construction.
  • Serialized for traceability to mill steel specifications.
  • RA32 finish with electropolish on all wetted parts.
Housing Model Class Typical Vessel Insertion Length Used With pH Electrode Models Used With Electrode Length Housing Part Number

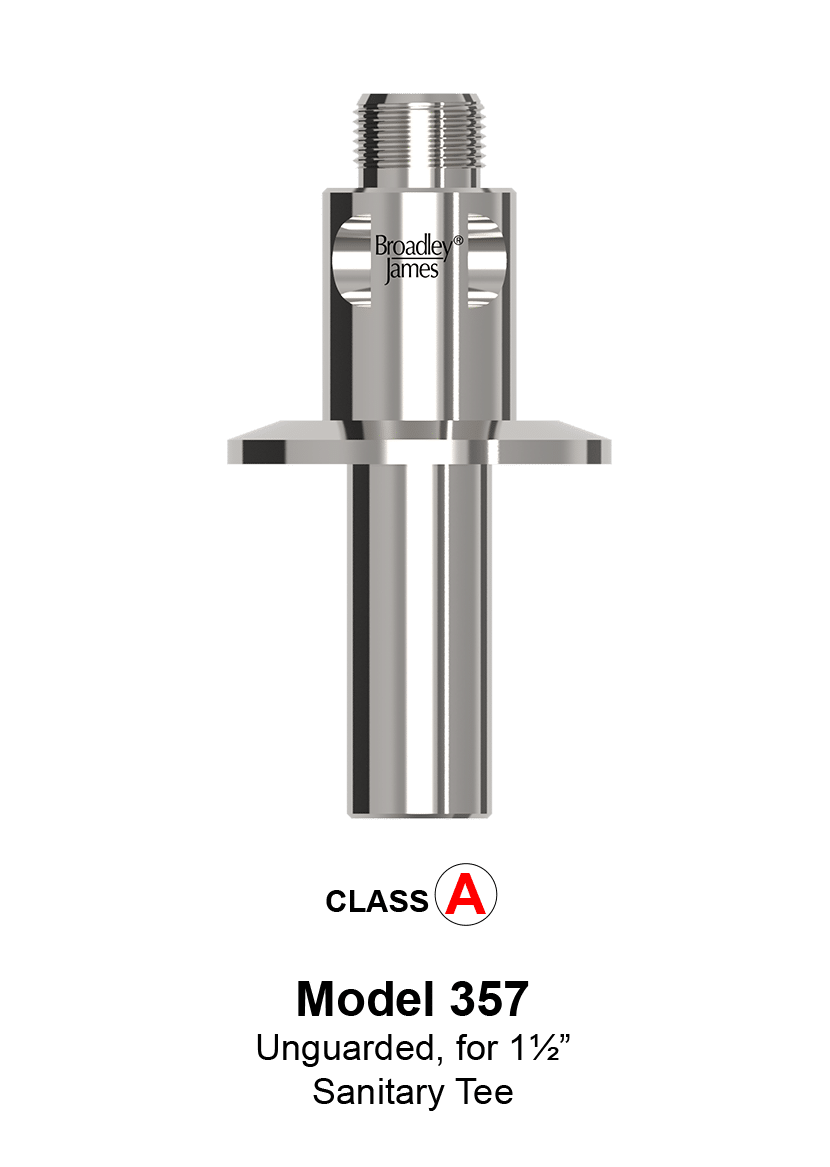

Model 357 for 1.5″ Sanitary Tee Fitting A 75 mm (3.0″) F-615, F-607, F-600 130 mm 357-61-H075

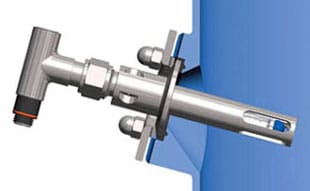

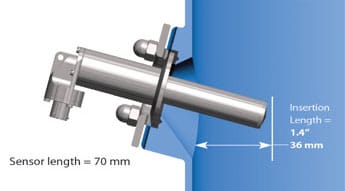

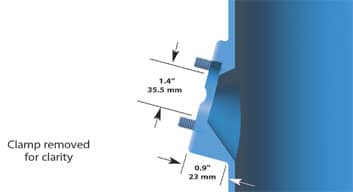

Sometimes found on vessels in biotech facilities, this style of port is flush to the vessel wall to minimize crevices. The unique design of the port offers increased drainage around the port and more effective Clean-In-Place (CIP). The NA-connect® port from NovAseptic is compatible with a special sanitary housing, which is secured to the port by a clamp. The port is installed at a 15° angle to allow for proper electrode performance. See the cutaway drawing to the right for typical installation dimensions.

novaseptic-port

NovA-in-port1

d215-nova-installed
