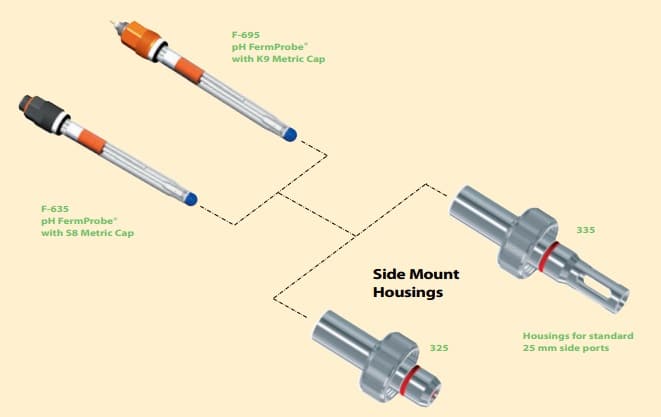

These sensor housings are designed to be used with model F-235, F-285F-635, F-695, F-835 and F-895 Metric FermProbes® and models D540 or D545 12 mm OxyProbe® II dissolved oxygen sensors. They are also compatible with any 12 mm sensor that has Pg13.5 threads.

These housings fit nearly all standard 25 mm ports found on production and pilot plant vessels. Different housing lengths are available to accommodate various application or vessel requirements.

Category:
Get Quote / More InfoDownload the Technical Info

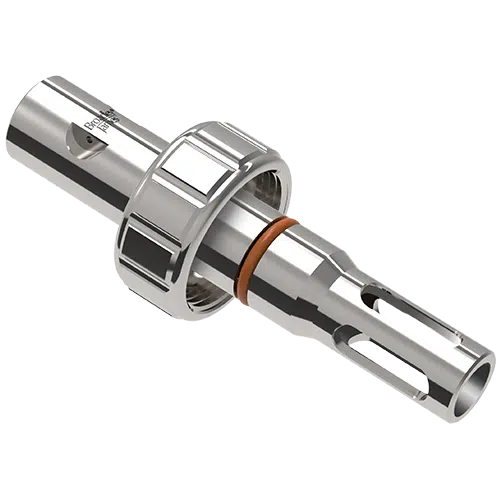

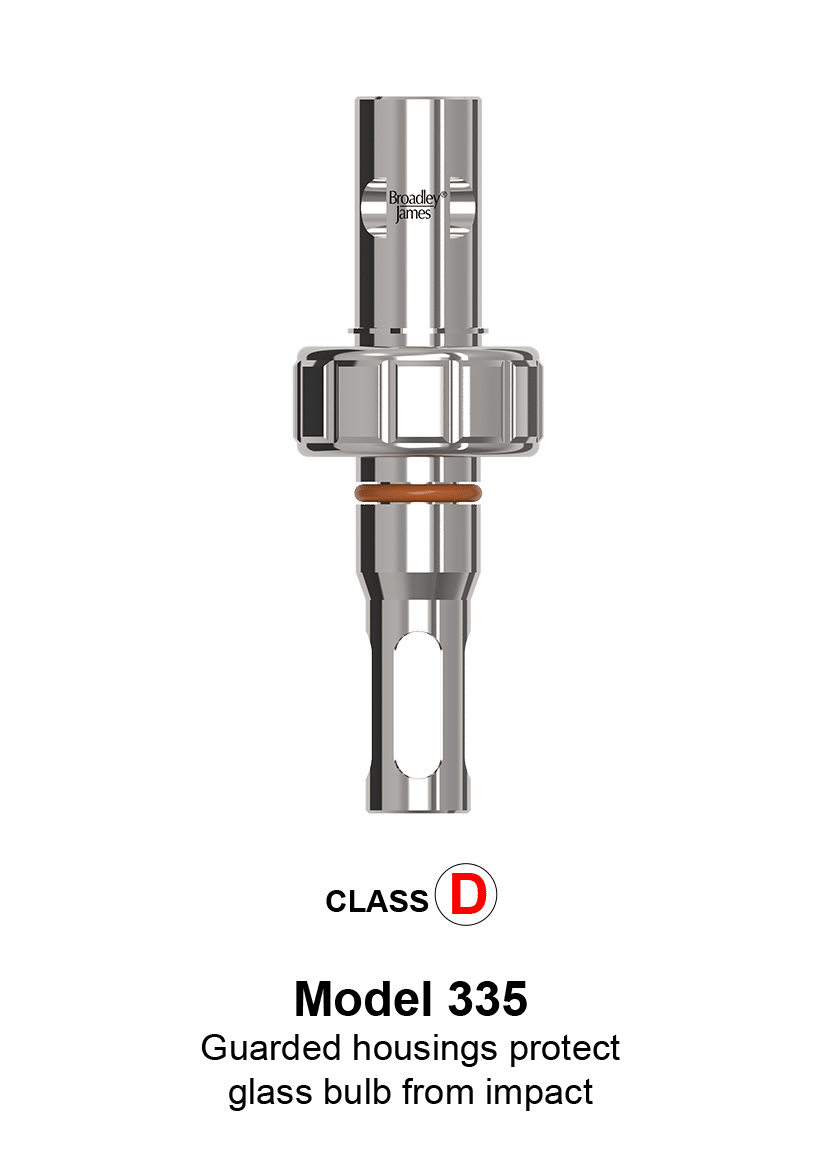

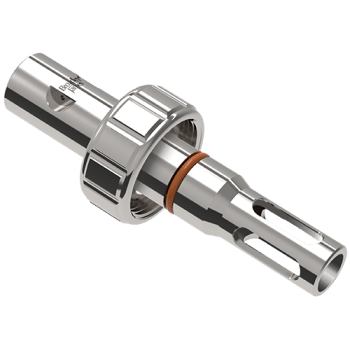

Model 335 guarded housingThe 335 guarded electrode housing is designed to be used with F-635 autoclavable pH electrode or F-695 Metric FermProbe® electrodes. The sensor threads directly into this metric housing, eliminating the threaded retainer ring. In order to prevent twisting the cable, the metric FermProbes have a detachable cable. An unguarded version is also available (model 325).

Using a guarded housing is highly recommended for pH electrodes to provide maximum protection against damage to the sensing bulb. However, highly viscous media is prone to clog the guard.

The pH electrode or D.O. sensor threads directly into this metric housing, eliminating the need for a threaded retainer nut. In order to prevent twisting the cable, the metric FermProbes have a detachable cable.

Specification

  • 316L stainless steel construction.
  • Serialized for traceability to mill steel specifications.
  • RA32 finish with electropolish on all wetted parts.
  • Permanently secured port retainer ring for additional operator safety.

Additional features

  • Guarded version for rugged handling while protecting the pH glass bulb in a production environment.
  • An unguarded version is also available (model 325).
  • Custom designs and modifications promptly quoted.

Guarded Housings

Housing ModelClassTypical Vessel Insertion LengthUsed With pH Electrode ModelsUsed With Electrode LengthHousing Part Number

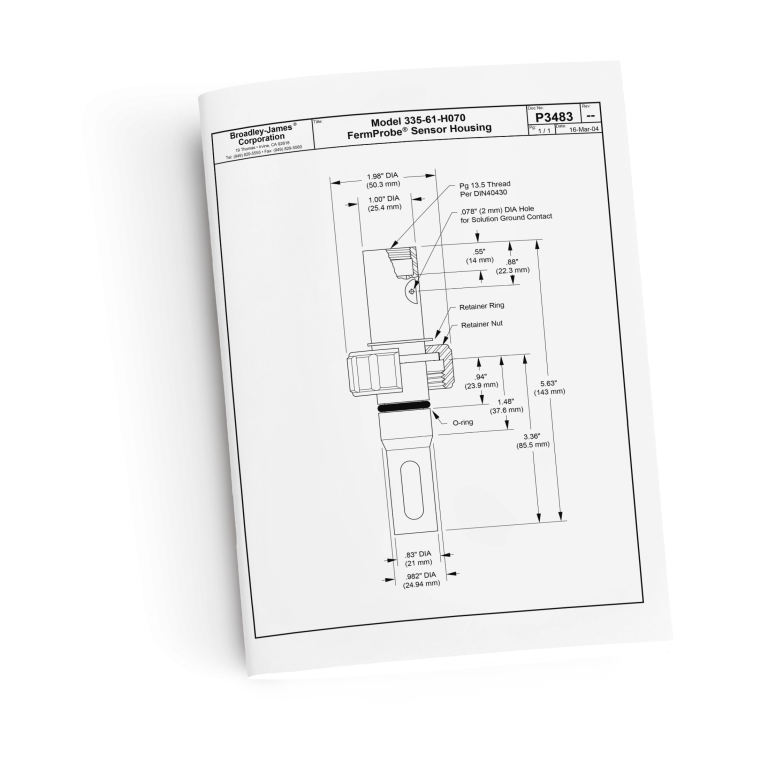

Model 335D52 mm (2.1″)F-235, F-285, F-635, F-695, F-835 and F-895120 mm335-61-H070

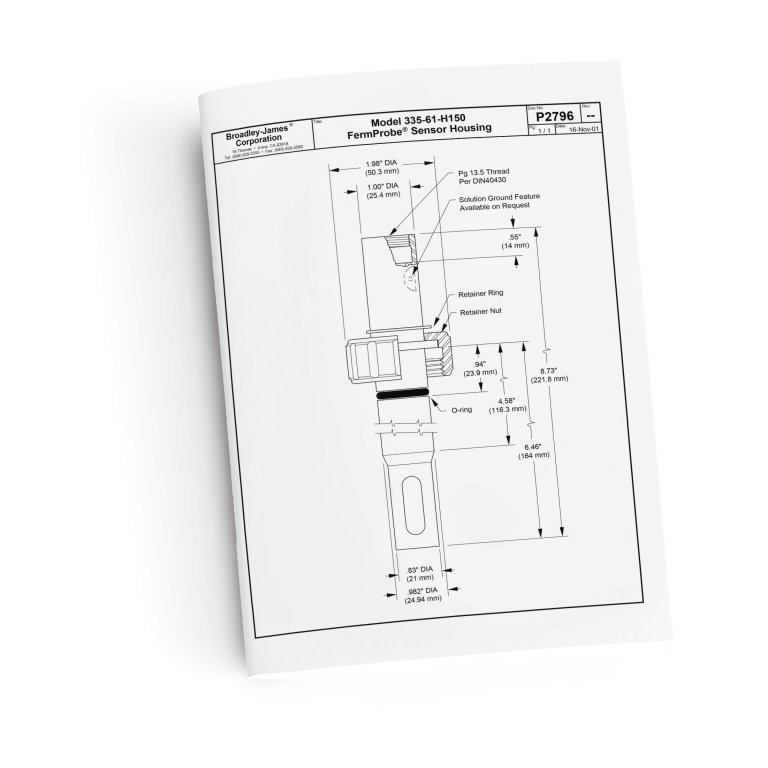

Model 335F128 mm (5.0″)F-235, F-285, F-635, F-695, F-835 and F-895200 mm335-61-H150



You can download the technical literature for Model 335 Housing here:

    1. Confirm the opening is a standard 25 mm side port (for assistance with this please see our FAQ for ‘How do I choose a housing style’).
    2. Determine whether the application will permit the use of a bulb guard on the housing. The bulb guard is highly recommended for all applications except when the media is very viscous. Highly viscous media is prone to clog the guard.
    3. Determine how far the housing and sensor should extend into the vessel.
    4. Confirm the sensor is a metric FermProbe, models D540 or D545 OxyProbe II or European sensor with Pg13.5 threads.
