SingleSense®
ModelSU800-16

Single-Use pH Sensor for Preinstallation in BPC

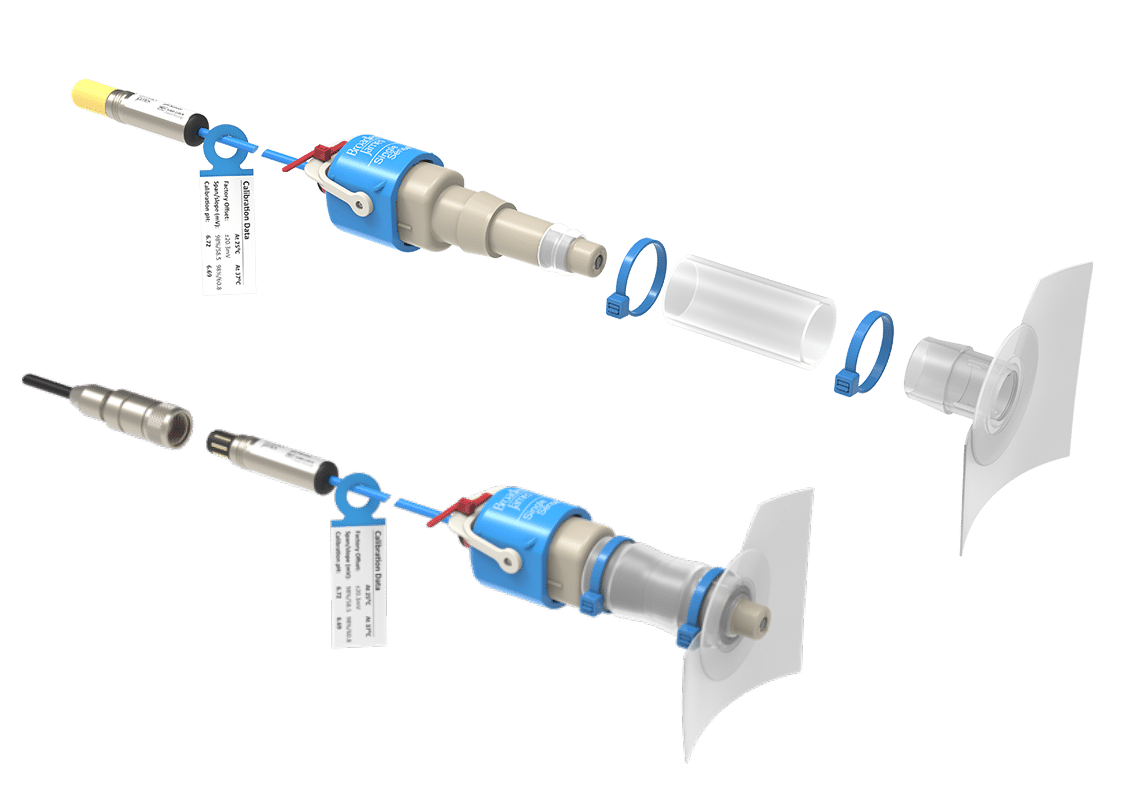

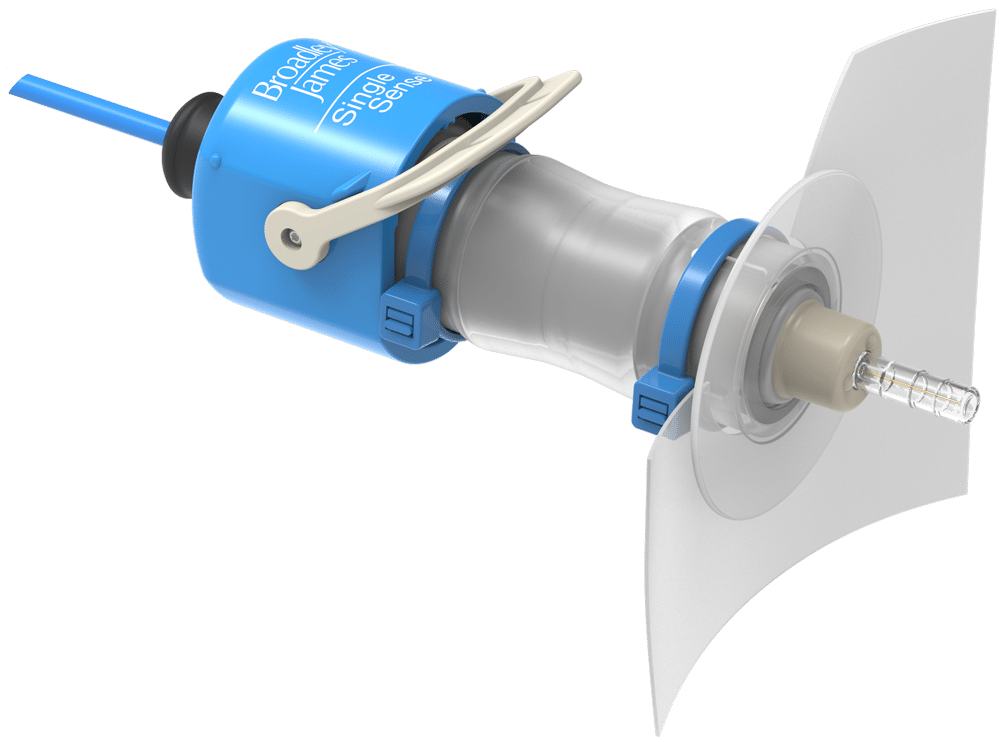

The SingleSense® Model SU800-16 Single-Use pH Sensor is gamma irradiation compatible and designed for pre-installation into a bioprocess container (BPC) via a 1-inch hose barb port. The sensor can be used for upstream and downstream BPC applications including media mixing, buffer preparation, and cell culture in single-use bioreactors.

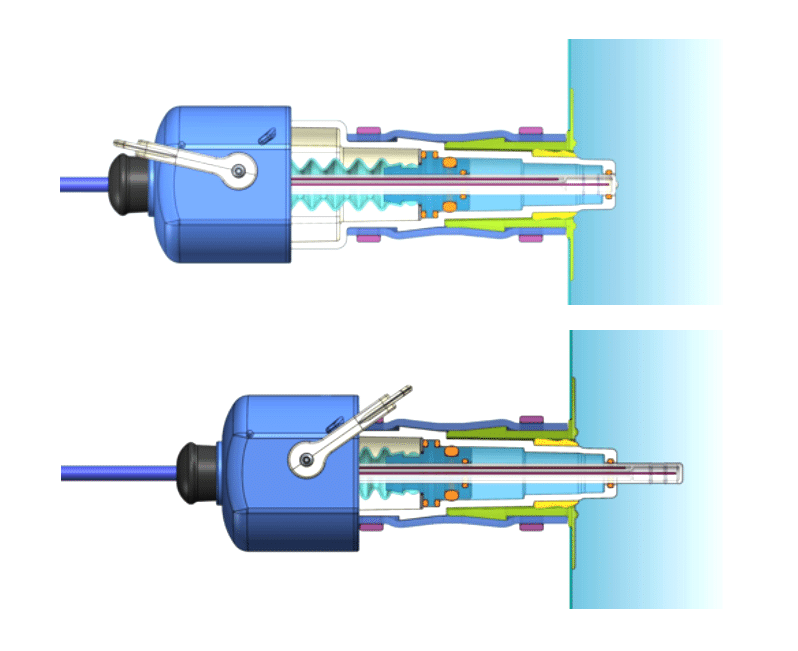

pH sensor retracts into the buffer storage chamber to enable one-point standardization without the need for sampling
Sensor can be inserted and retracted multiple times
Sensor is ready to use with no rehydration or wet-in time required

Ordering Information

Looking for a quote or to discuss your needs?

Our global team are on hand to help

Get a Quote

You can also review the documentation for technical details and purchasing information.

The SingleSense® Model SU800-16 Single-Use pH Sensor is gamma irradiation compatible and designed for pre-installation into a bioprocess container (BPC) via a 1-inch hose barb port. The sensor can be used for upstream and downstream BPC applications including media mixing, buffer preparation, and cell culture in single-use bioreactors.

Sensor Specifications

Measurement Range 2–11 pH
Operational Temp. Range 4°–50° C [39°–122° F]
Shelf Life 36 months
Gamma Tolerance Level 50 kGy
Process Connection 1-inch Hose Barb
Sensor Connector 8-pin Variopin



How to Purchase

Please review the product purchasing sheet for product specifications and purchasing information.

Contact our sales team for more information.

Technical Sales

Documentation

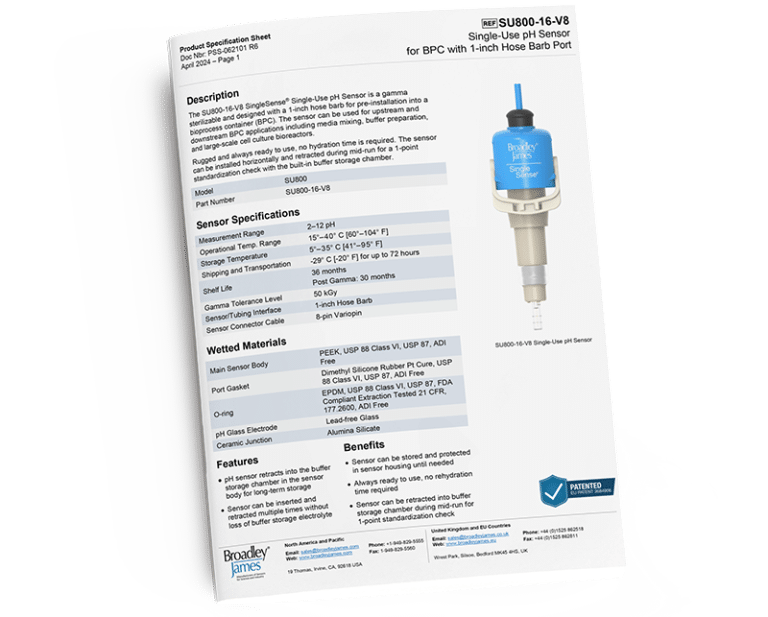

Product Specification

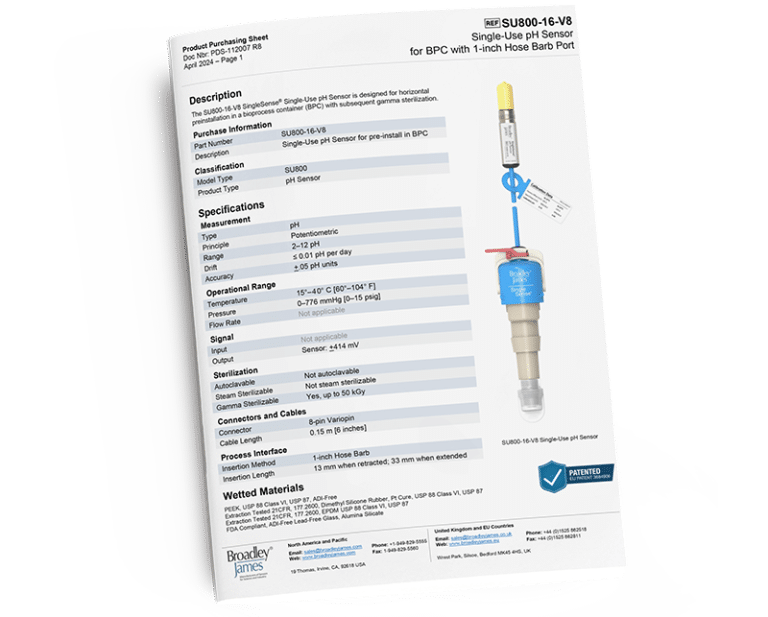

Purchasing Sheet

Installation Manual

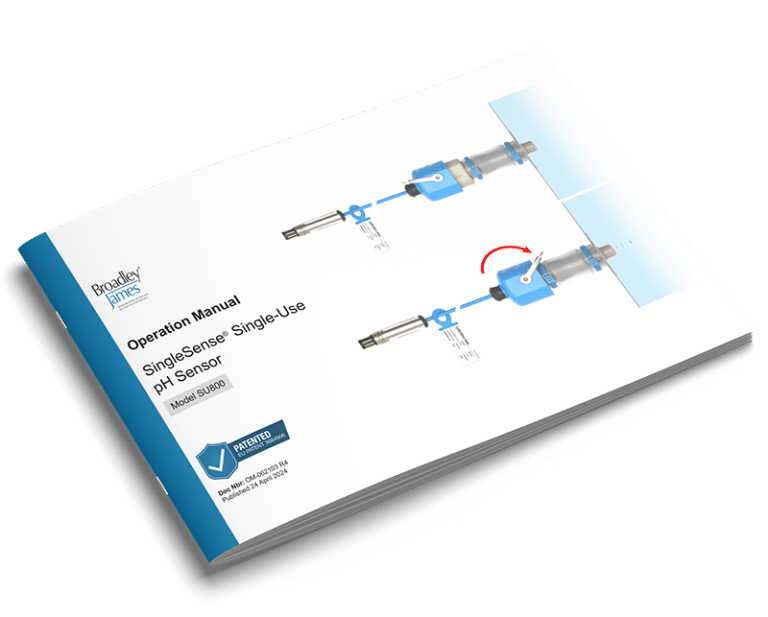

Operation Manual
