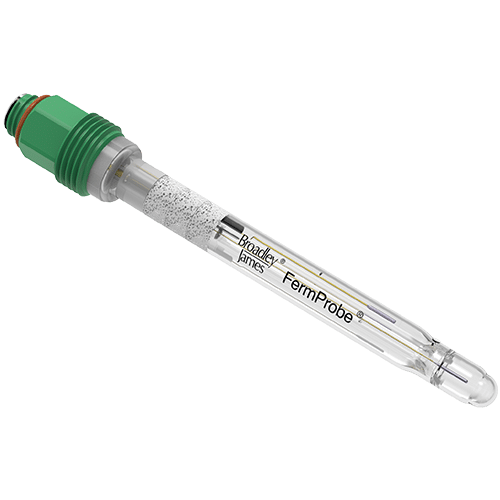

F-835 Autoclavable pH Electrode

B5-13202-5T7

B5-11005-07-J

B2-LS103-015-M30

B4-21006-020-M10

B4-35005-020-M10

B4-41001-2T9-M10

B4-21005-015-M10

B4-35004-015-M10

B4-31024-8T9-B06

B4-31004-8T9-B06

B4-32023-5T7-B03

B4-21004-007-M10

B4-35002-005-M10

B4-31003-5T7-B06

B4-53004-020-M10

B4-22005-020-M10

B4-12004-020-M10

B2-LS202-020-M69

B5-11315-020

B5-11007-20-R

B4-82004-8T9-M27

B4-53003-015-M10

B4-22004-015-M10

B4-12003-015-M10

B4-44002-8T9-M27

B4-42002-8T9-M27

B4-72003-8T9-M27

B4-32005-8T9-B03

B4-32004-8T9-B03

B2-LS201-015-M69

B5-11314-015

B5-11006-15-R

B5-13103-8T9

B5-12103-8T9

B5-11355-07J

B4-21002-003-M10

B4-31002-2T3-B06

B4-35001-2T3-M06

B4-53002-007-M10

B4-22003-007-M10

B4-12002-007-M10

B4-32003-5T7-B03

B2-LS102-007-M30

B5-11313-007

B5-11004-07-R

B4-22002-005-M10

B5-11312-005

B5-11003-05-R

B5-13102-5T7

B5-12102-5T7

B5-11321-03J

B5-11002-03-J

B5-13201-003

B4-82002-2T7-G34

B4-82001-2T7-M18

B4-81003-2T9-M12

B4-81002-2T9-M10

B4-81001-2T3-M06

B5-51001-2T9-006

B4-53001-2T5-M10

B4-23001-2T9-M10

B4-22202-015

B4-22001-003-M10

B4-12001-2T5-M10

B4-44001-2T7-M18

B4-42001-2T7-M18

B4-72002-2T7-G34

B4-72001-2T7-M18

B4-32002-2T3-B03

B2-LS101-2T5-M30

B5-11311-2T3

B5-11001-03-R

B5-13101-003

B5-12101-003

The new F-835 offers the same form, fit and function as the F-635 with improved performance and USP Class VI materials. The unique construction methods used by Broadley-James allows this SIP and autoclavable pH electrode to exhibit virtually zero drift sterilization.

Get Quote / More InfoDownload the Datasheet

The Model F835 steam sterilizable and autoclavable pH FermProbe® is built to withstand repeated high temperature sterilization by pressurized steam. The Pg13.5 cap design provides for insertion and removal of the electrode from its housing.

Each FermProbe is steam sterilized for one hour at 135°C before final QA tests in order to insure the highest level of electrode reliability.

All FermProbes have two built-in electrolyte chambers that act to protect and isolate the sensitive inner AgCl reference half-cell. This “double junction”, dual chamber design effectively prevents the most common failure modes of pH electrodes in bio-pharmaceutical applications.

Metric FermProbe pH Electrodes

This FermProbe style features a metric Pg13.5 threaded polymer cap that allows it to be used with European style electrode housings. Autoclavable as well as steam sterilizable, this style of pH FermProbe is the first choice for use with small autoclavable benchtop vessels. Available only in the disconnect cap style. Cables must be ordered separately.

Features

  • Double-Junction Silver/Silver Chloride reference element for the ultimate in stability and resistance to contamination.
  • Specifically designed for multiple SIP, CIP, or Autoclave cycles.
  • Withstands exposure to harsh CIP solutions.
  • Metric threaded PG13.5 cap is compatible with a wide range of bioprocess electrode housings.
  • Rugged, low-impedance pH bulb provides fast and precise pH measurements even after prolonged steam exposure.

Specifications

  • 0 – 13 pH range
  • Steam sterilizable to 135° C
  • 150 psig max. pressure
  • Double junction, Ag-AgCl reference system
  • Metric Pg13.5 threaded disconnect cap

Choose Electrode Model

If the electrode needs to fit an existing cable, check cable connector. If it has a male connector, an F-635 or F-835 FermProbe is required. Another guideline is to note the connector’s color. If the cable connector is black, use the F-635 or F-835 Fermprobe.

Choose Electrode Length

Benchtop Applications

The electrode length is from the base of the cap to the tip of the electrode (the glass part of the electrode).

SIP Tank Applications

If you have already chosen a housing, select an electrode length with the same Class designation as the housing. The housing ordering information box also lists the correct electrode length to order. If you have not already chosen the housing, please review the recommendations next to each electrode model below.

Confirm Cable Length and Connector

Model F-835 pH electrodes require disconnect cable and connector assemblies.

Ordering Information

Model F-835 pH FermProbe with Standard Metric Cap

Electrode Model Use with these Housing Models or Benchtop vessel sizes Electrode Length Cable Length Connector Electrode Part Number
F-835 325, 335 Class D<1L Vessel 120 mm Order Separately F-835-B120-DH
F-835 325, 335 Class F1-3L Vessel 200 mm F-835-B200-DH
F-835  3L-5L Vessel 225 mm F-835-B225-DH
F-835 7L-15L Vessel 325 mm F-835-B325-DH
F-835 15L-20L Vessel 420 mm F-835-B420-DH
F-835  Many other lengths available, contact for information XXX mm F-835-B480-DH

Note: the vessel sizes are for guidance only – check your own vessel dimensions or the length of the electrode you are replacing.

Recommended Housings

The F-835 pH Electrode has a metric Pg13.5 threaded polymer cap allowing it to be used with European style housings.We would recommend the following Broadley-James sensor housings for use with the  Model F-835 FermProbe® steam sterilizable and autoclavable pH electrode:

Compatible Cables

The F-835 Autoclavable pH Electrode uses a standard S8 detachable cable connection. We recommend the following cables for use with it:

Cable Type Sensor Connector & Device Connector Device Terminal
HP Plug to BNC Plug, Type A
HP Plug to BNC Plug, Type M
HP Plug to DIN Plug, Type M
 HP Plug to Crimped Ferrules, Type M
 HP Plug to Ferrules, Solution Ground, Type N




Additional information

Application

Bioprocess

Cap / Connector

Pg13.5, S8

Connection Type / Size

Pg13.5

Features

Autoclavable, Low Drift, Steam Sterilizable

Installation

In-Line

Measurement

pH

Regulatory

FDA Compliant, USP Class VI

Size / Type

12 mm
