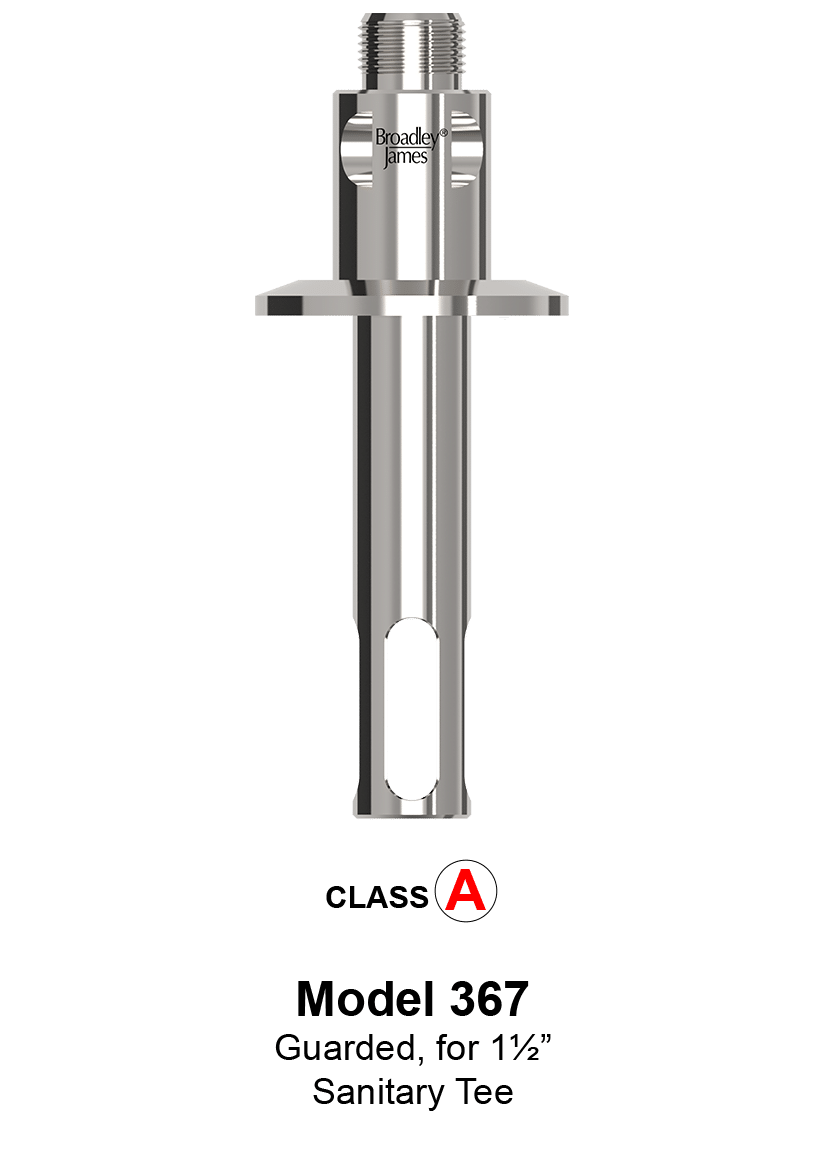

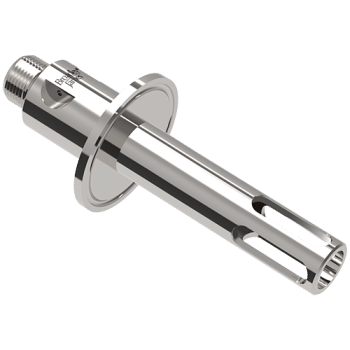

The housings are secured into a sanitary pipe tee with a standard flange clamp sealed with a flange gasket. The pH electrode is then inserted into the housing for on-line measurements. When using a standard sanitary tee, the sensor should be positioned such that the tip of the sensor is in the middle of the process flow. Standard and T-Pull® FermProbes® are both compatible with these housings.
These housings are also compatible with NovAseptic side ports.
- 316L stainless steel construction.
- Serialized for traceability to mill steel specifications.
- RA32 finish with electropolish on all wetted parts.
