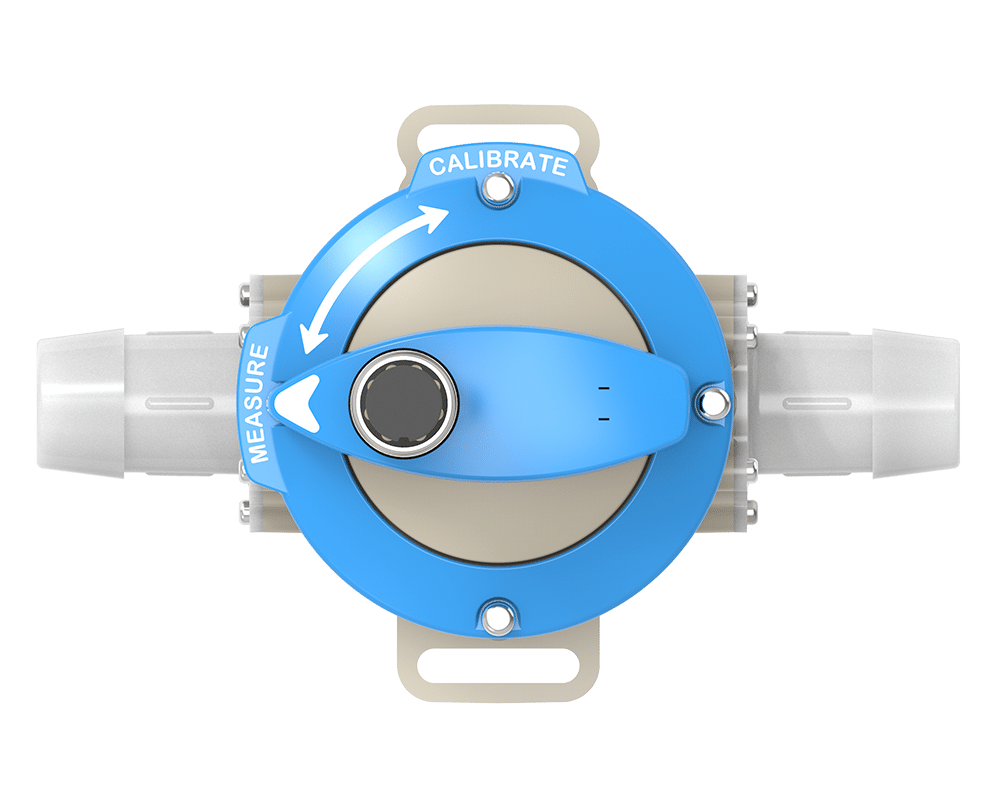

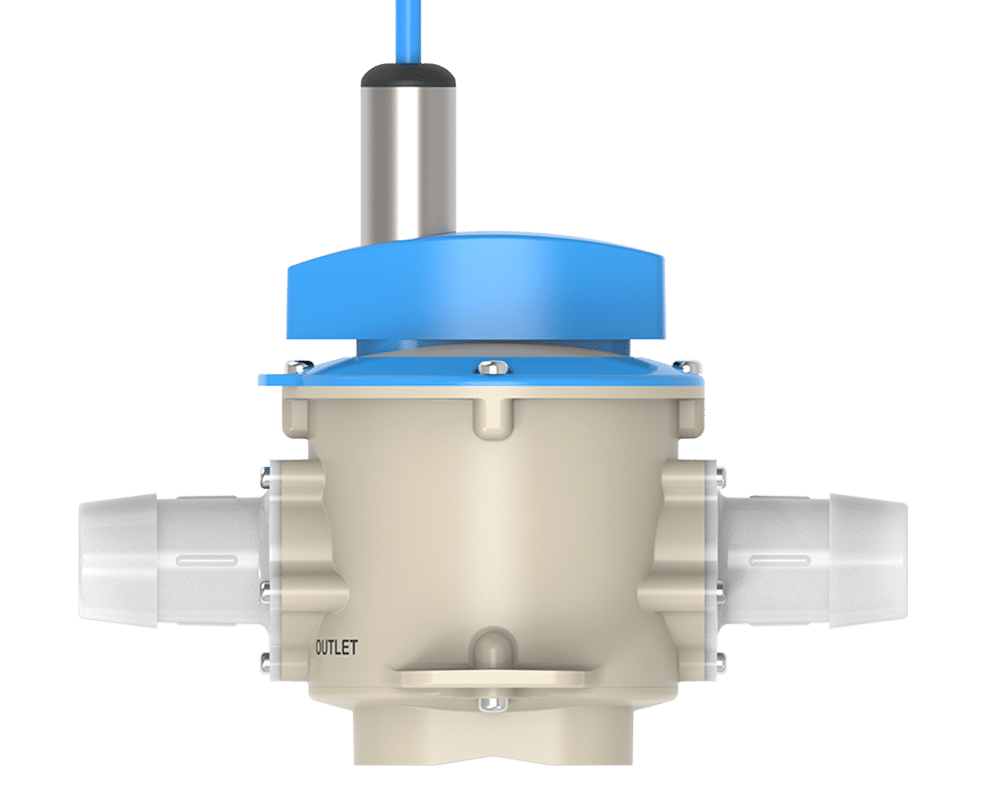

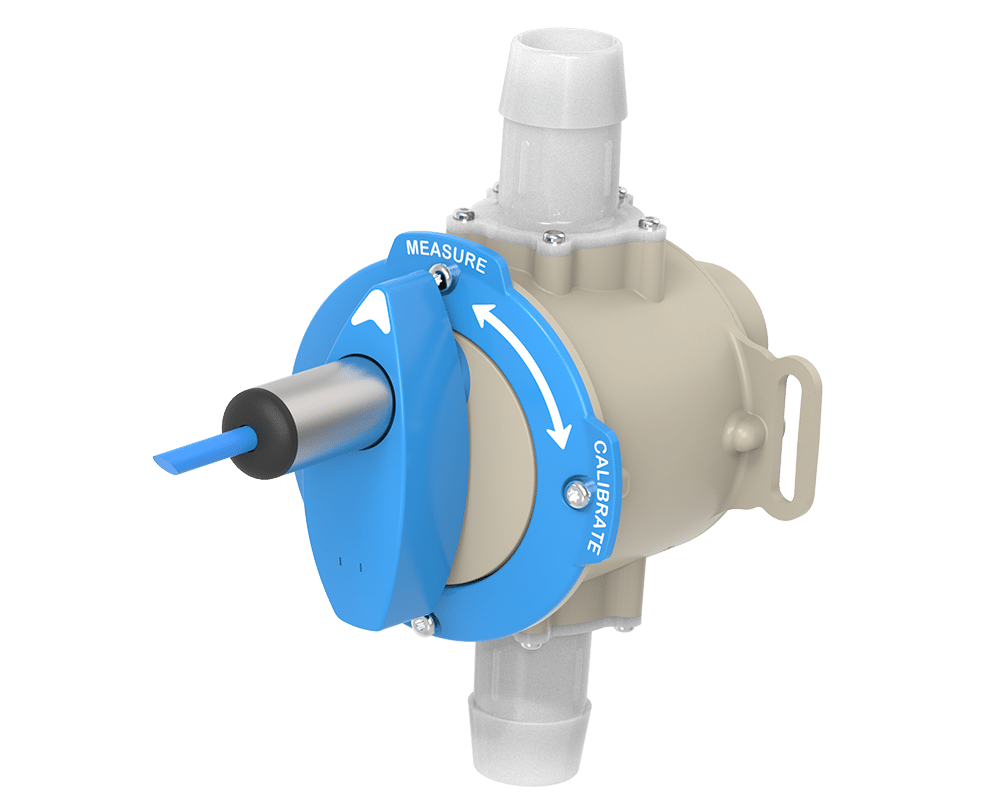

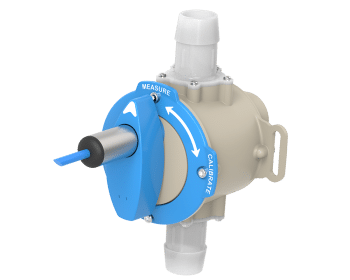

The SU680-12 SingleSense® single-use, flow-through pH sensor is designed for downstream applications where pH must be measured while process solution is flowing through 3/4-inch flexible tubing.
Rugged, always ready to use, no hydration time is required. The sensor can be rotated into the buffer storage chamber for a 1-point standardization check or to avoid exposure to CIP process solution.
Sensor Specification
| Measurement Range | 2–12 pH |
| Operational Temp. Range | 15°–50° C [60°–122° F] |
| Storage Temperature | 5°–35° C [41°–95° F] |
| Shelf Life | 36 months Post Gamma: 30 months |
| Gamma Tolerance Level | 50 kGy |
| Sensor/Tubing Interface | 3/4-inch Hose Barbs |
| Sensor Connector Cable | 8-pin Variopin |
