SG320 Irradiated pH Sensor

Name: SG320 Irradiated pH Sensor
SKU: SG320
Availability: InStock

Single-Use Gamma Irradiated pH Sensor with Insertion Assembly and Kleenpak Connector

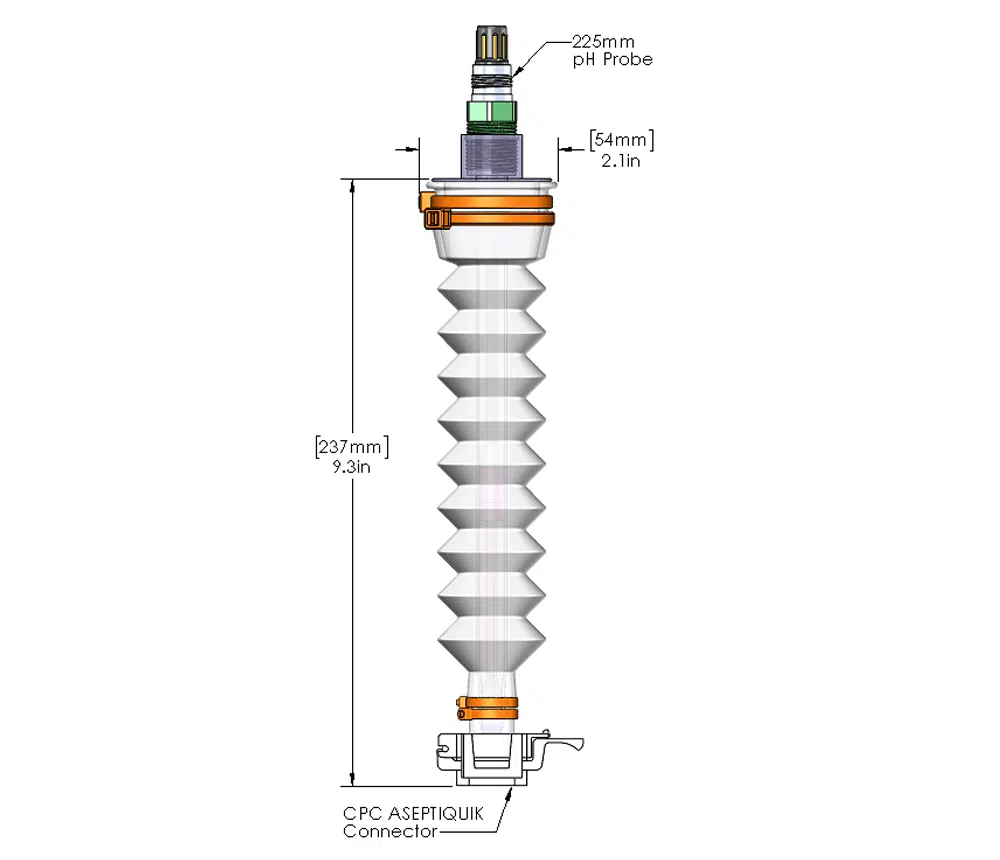

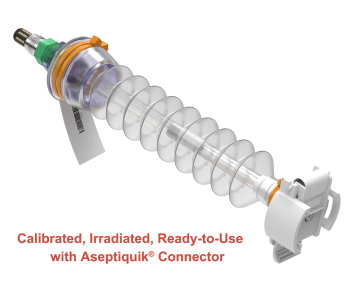

The SingleSense® Model SG320 is a single-use gamma irradiated pH sensor and bellows insertion assembly equipped with an AseptiQuik® connector for aseptic attachment to a bioprocess
container (BPC). The entire SG320 assembly is assembled and double bagged in an ISO 7 cleanroom and then gamma irradiated.

Saves time, reduces risk

Calibration Tag Supplies Sensor Offset and Span

All Wetted Surfaces USP Class VI, BSE/TSE/ADI Free

The SingleSense^® Model SG320 is a single-use gamma irradiated pH sensor and bellows insertion assembly equipped with an AseptiQuik^® connector for aseptic attachment to a bioprocess container (BPC). The entire SG320 assembly is assembled and double bagged in an ISO 7 cleanroom and then gamma irradiated.

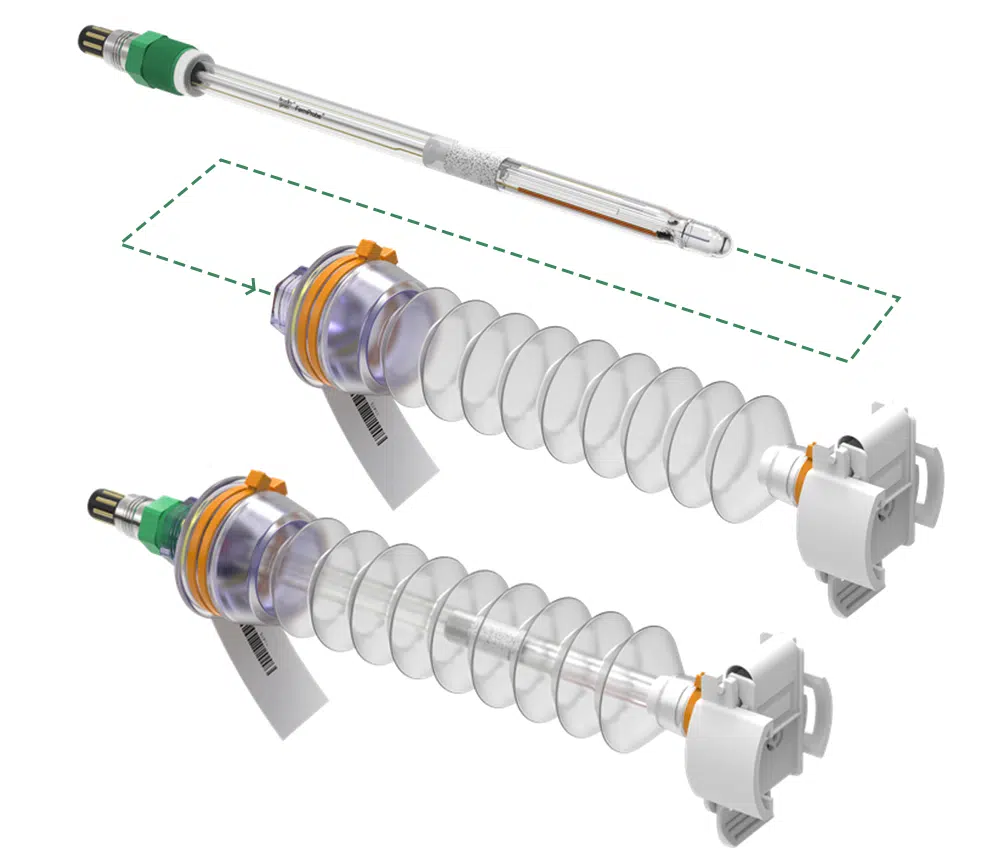

This enables users to quickly connect the pH sensor assembly to the BPC and aseptically insert the sensor into the media. This saves operator time and reduces risk.

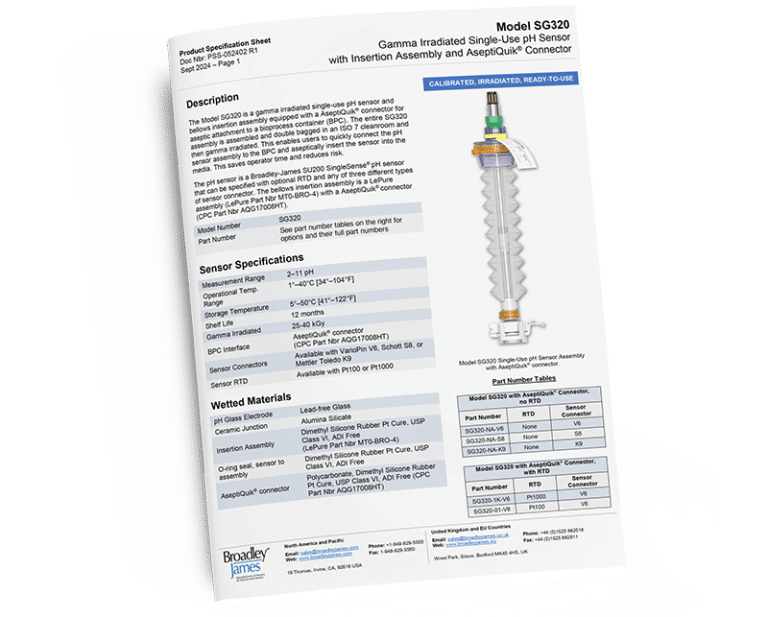

Sensor Specifications

Measurement Range	2–11 pH
Operational Temp. Range	4°–50°C [39°–122°F]
Shelf Life Post Gamma Irradiated	12 months
Gamma Tolerance Level	25-40 kGy
Process Connection	Aseptiquik^® connector
Sensor Connector	V6, S8, or K9 connector options available
Sensor RTD	Available with Pt 100 or Pt 1000

How to Purchase

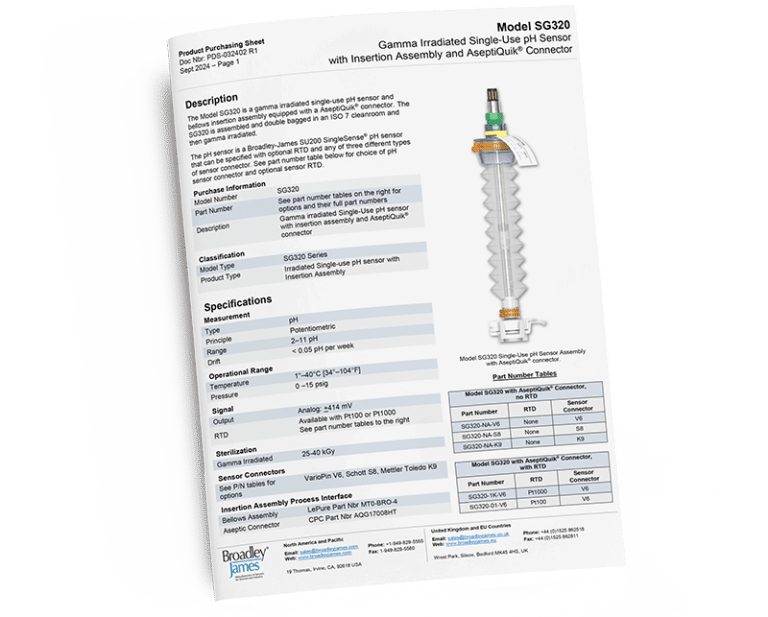

Please review the product purchasing sheet for product specifications and purchasing information.

Contact our sales team for more information.

Technical Sales

FAQs

Why choose a single-use, gamma irradiated, pH sensor assembly over a pre-installed built-in single-use pH sensor?

Improved Supply Chain Logistics: Preinstalled sensors can lead to longer deliver times from BPC providers. If the BPC design is more generic, delivers are faster.
Flexibility: Sensors can be added to BPC as needed and in the quantity needed
Redundacy: If a backup sensor is needed, the Model SG300 series pH sensor assembly can be installed in minutes into a spare ½ inch port.

Why choose a single-use, gamma irradiated, pH sensor assembly over an autoclaved pH sensor assembly?

Efficiency: Saves the time, training, equipment, and record keeping required for autoclaving sensors
Ease of use: Ready-to-Use out of the box. Installs in minutes
Security: Gamma irradiated. Less risk of less-than-perfect autoclave procedure. No 24 hour limit-of-use as necessary with autoclaved sensors
Reduced Risk: Gamma irradiation is less stressful on the sensor than the extreme heat of autoclaving

Why do I see moisture inside the bellows of my sensor insertion assembly?

Glass pH sensors have a porous ceramic junction that allows the reference electrolyte (a KCl solution) to contact the measured solution. During extended dry storage, the reference electrolyte may slowly leak from the junction by design, forming a visible drop of liquid inside the bellows.

This electrolyte is non-cytotoxic (data available on request) and diffuses very slowly into the process fluid under normal conditions, as with any glass pH sensor.
The presence of a small amount of liquid in the bellows is normal and does not indicate any damage to the sensor or create any additional exposure of the process to new materials.

Why is the pH sensor stored dry - I thought this was typically not recommended for glass pH sensors?

Glass pH sensors have a glass membrane that requires hydration to function properly. Therefore, the typical recommendation is to store pH sensors immersed in an aqueous buffer solution to ensure they are ready for use. Broadley-James SingleSense® pH sensors, however, overcome the need for continuous hydration by using a special glass formulation that can rehydrate quickly without affecting sensitivity, enabling a long dry shelf-life.
