SingleSenseTM

SU110-16

Single-Use Gas Well, Extended Length for Preinstallation in BPC

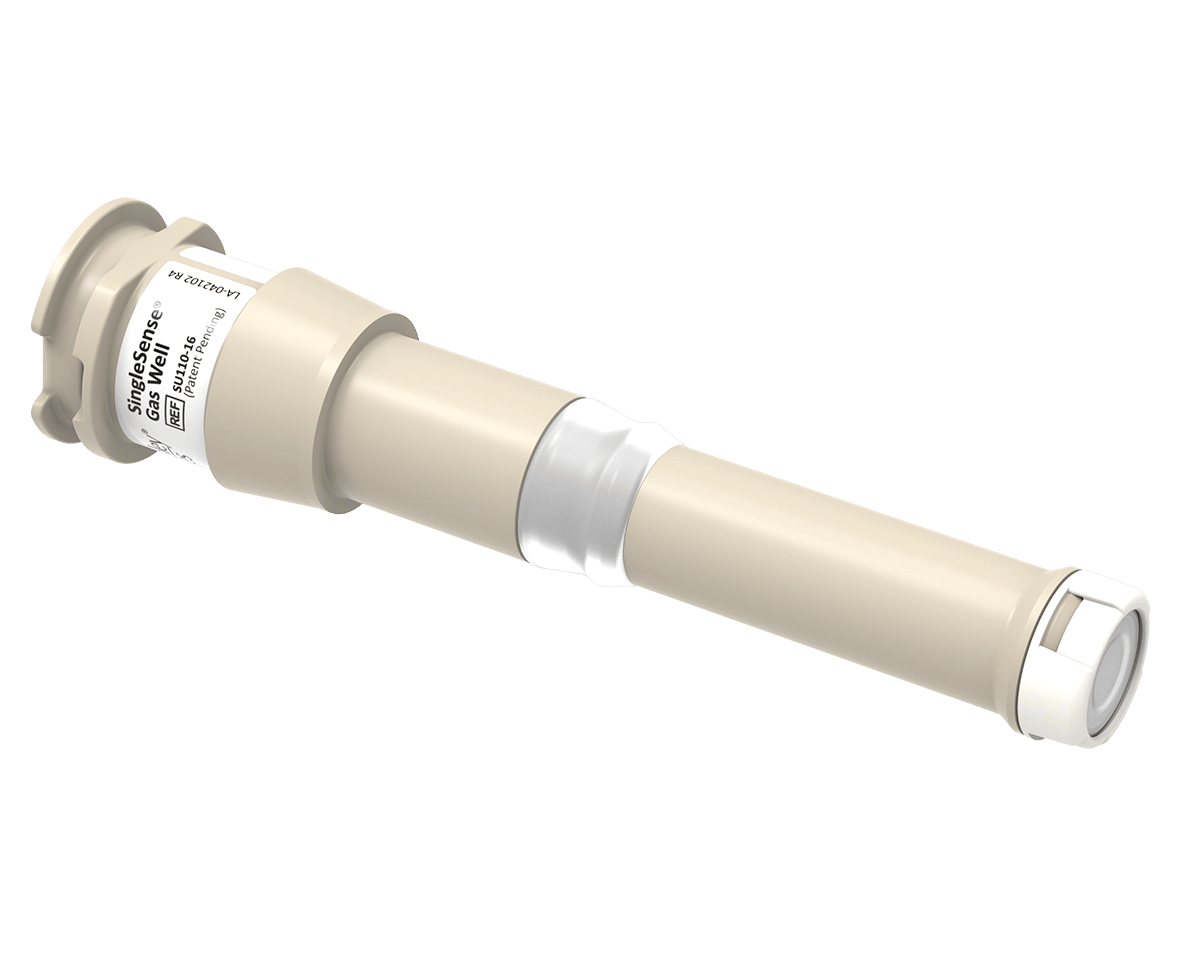

The SU110-16 is an extended length, single-use, gamma sterilizable gas well designed for preinstallation in bioprocessing containers (BPC) using a 1-inch hose barb port.

The extended length of the gas well positions the sensor’s RTD in the BPC media.

Category:
Gas well features a steel mesh reinforced gas permeable membrane rated up to 30 psig
Membrane provides a sterile barrier, eliminating the risk of sensor damage from steam sterilization or autoclaving
Gas well reduces risk of BPC media contamination from direct sensor insertion

The SU110-16 SingleSense™ Single-Use Gas Well is gamma sterilizable and designed for preinstallation into a bioprocess container (BPC) with a 1-inch hose barb port. The gas well has a silicone rubber membrane that is steel mesh reinforced and gas permeable to O2 and pCO2.

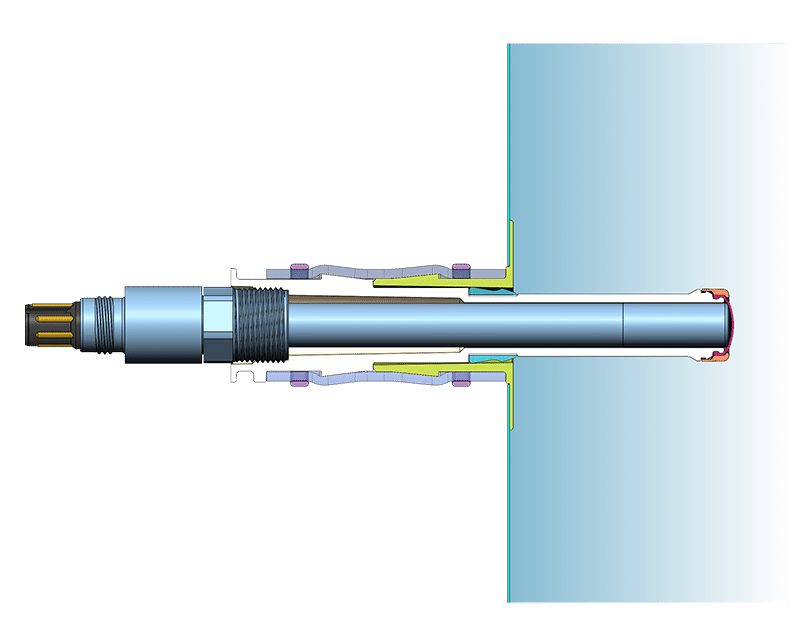

The SU110-16 gas well extends further into the BPC to ensure the sensor’s RTD is completely in the BPC media and at media temperature.

The rugged, reinforced membrane is rated to 30 psig. The membrane provides a sterile barrier that negates the need to sterilize the DO or pCO2 sensor by autoclave. Avoiding steam sterilization of the sensor greatly lessens the risk of sensor damage.

Sensor Specifications

Measurement Range Not applicable
Operational Temp. Range 15°–50° C [60°–122° F]
Storage Temperature 5°–35° C [41°–95° F]
Shelf Life 36 months
Post Gamma: 30 months
Gamma Tolerance Level 50 kGy
Sensor/Tubing Interface 1-inch Hose Barb
Sensor Connector Cable 8-pin Variopin
