SingleSense®

SU600-02

Single-Use Flow-Through pH Sensor with 1/8-Inch Hose Barbs

The SU600-02 is a single-use, flow-through pH sensor for downstream applications where process pH is continuously measured in media flowing through 1/8-inch flex tubing.

For use in perfusion systems and downstream applications including viral inactivation, protein refolding, and pH adjustment of feed suspension
30-month shelf life after preinstallation and gamma sterilization
Rugged and always ready to use with no rehydration time required

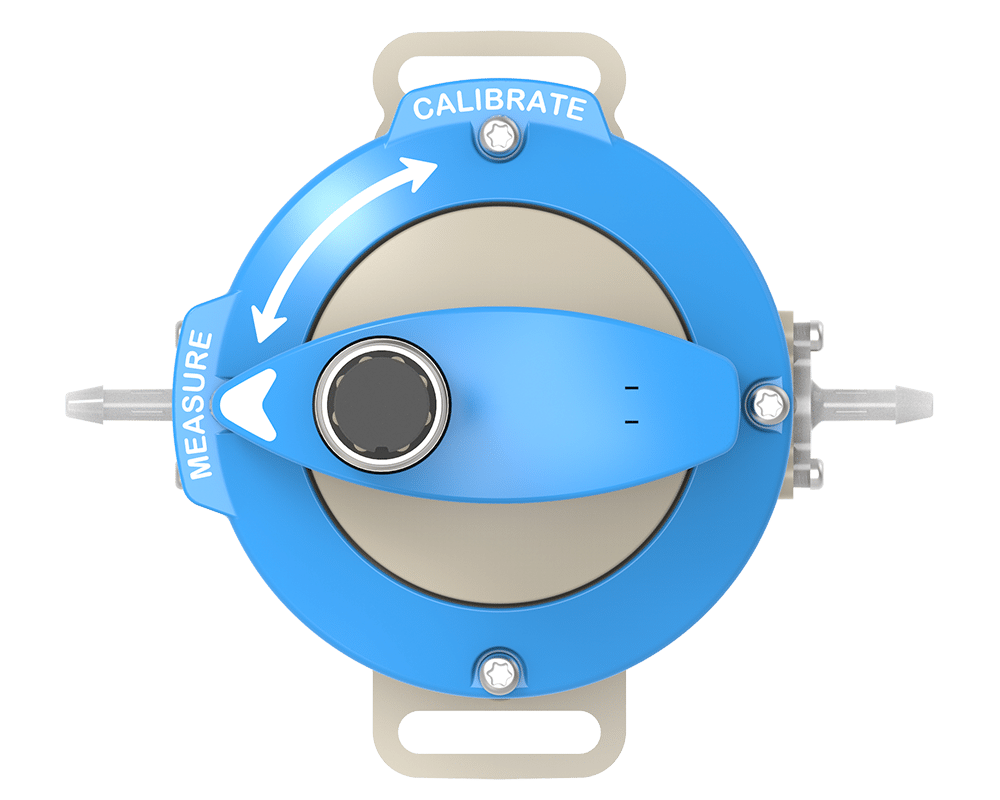

Sensor rotates into built‑in buffer storage chamber for long‑term storage and 1‑point standardization check

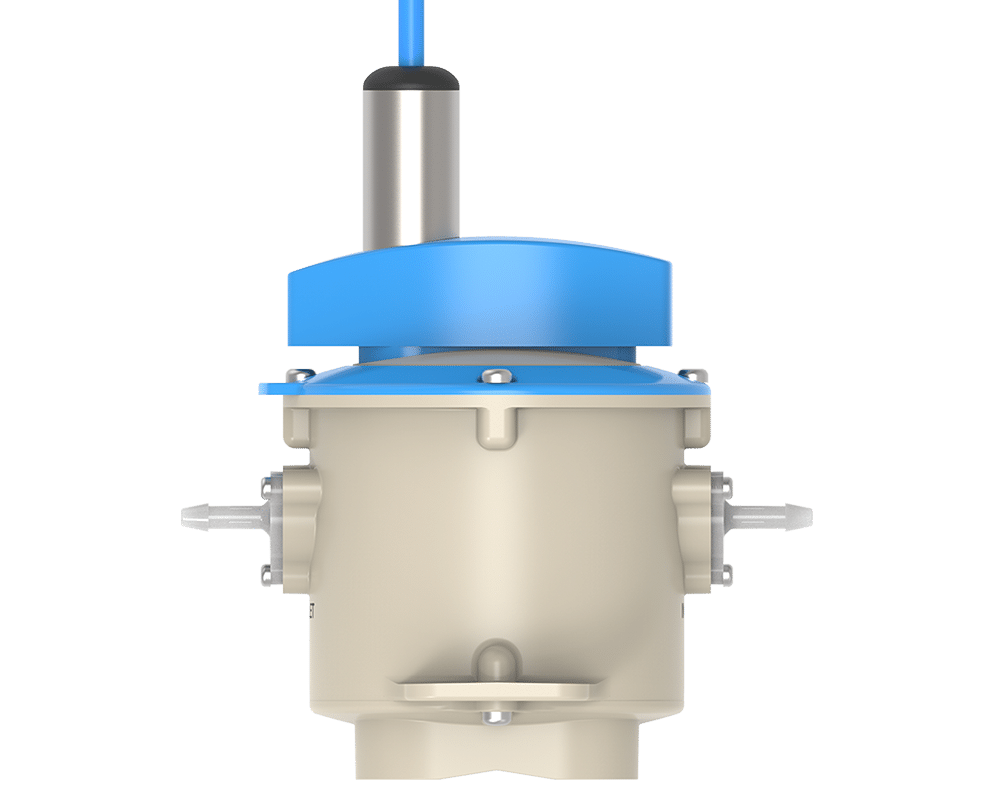

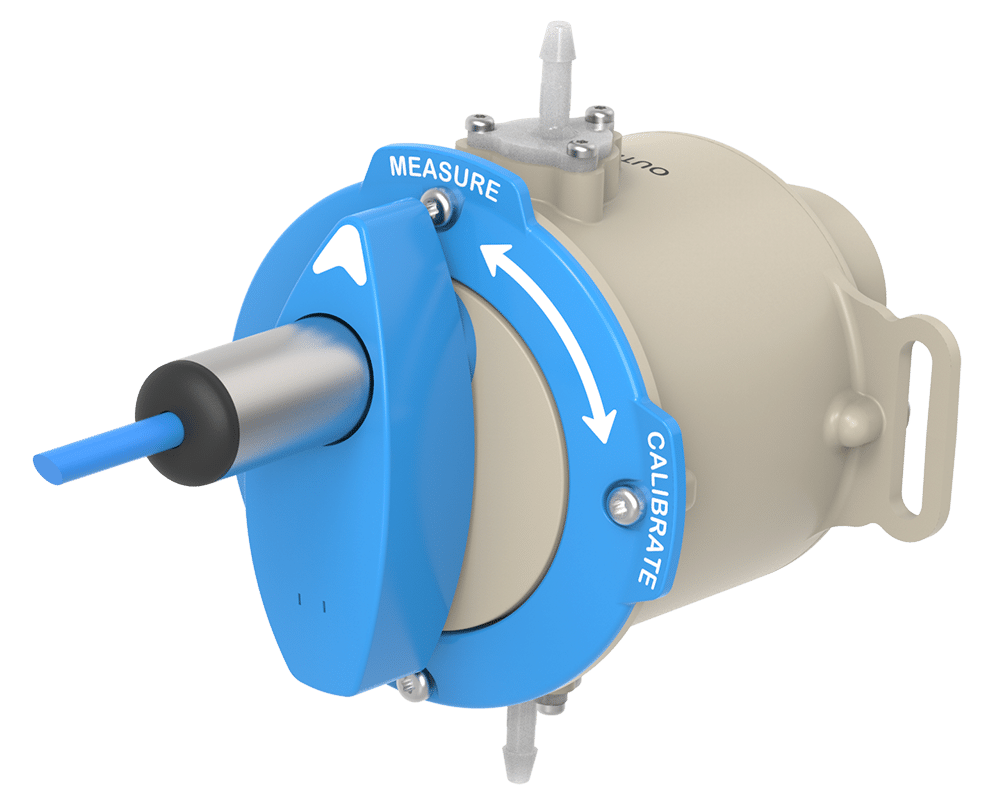

The SU600-02 SingleSense® single-use, flow-through pH sensor is designed for downstream applications where the pH must be continuously measured in process media flowing through 1/8-inch flexible tubing.

The sensor is rugged and always ready to use with no rehydration time required. A 1-point standardization check can be performed during mid-run by rotating the sensor into the built-in buffer storage chamber.

Sensor Specifications

Measurement Range 2–12 pH
Operational Temp. Range 15°–50° C [60° F–122° F]
Storage Temperature 5°–35° C [41° F–95° F]
Shelf Life 36 months
Post Gamma: 30 months
Gamma Tolerance Level 50 kGy
Sensor/Tubing Interface 1/8-inch Hose Barbs
Sensor Connector Cable 8-pin Variopin



How to Purchase

Please review the product purchasing sheet for product specifications and purchasing information.

Contact our sales team for more information.
