SG310 Irradiated pH Sensor

Name: SG310 Irradiated pH Sensor
SKU: SG310
Availability: InStock

Gamma Irradiated Single-Use pH Sensor with Insertion Assembly and Kleenpak^® Connector

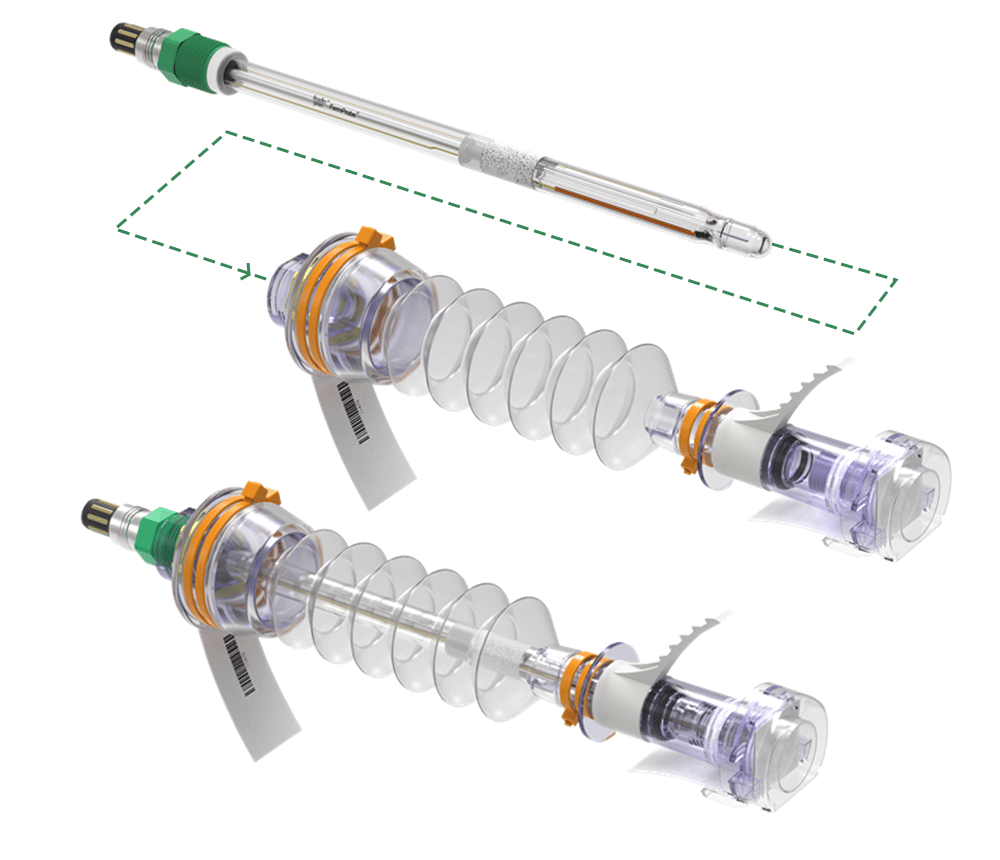

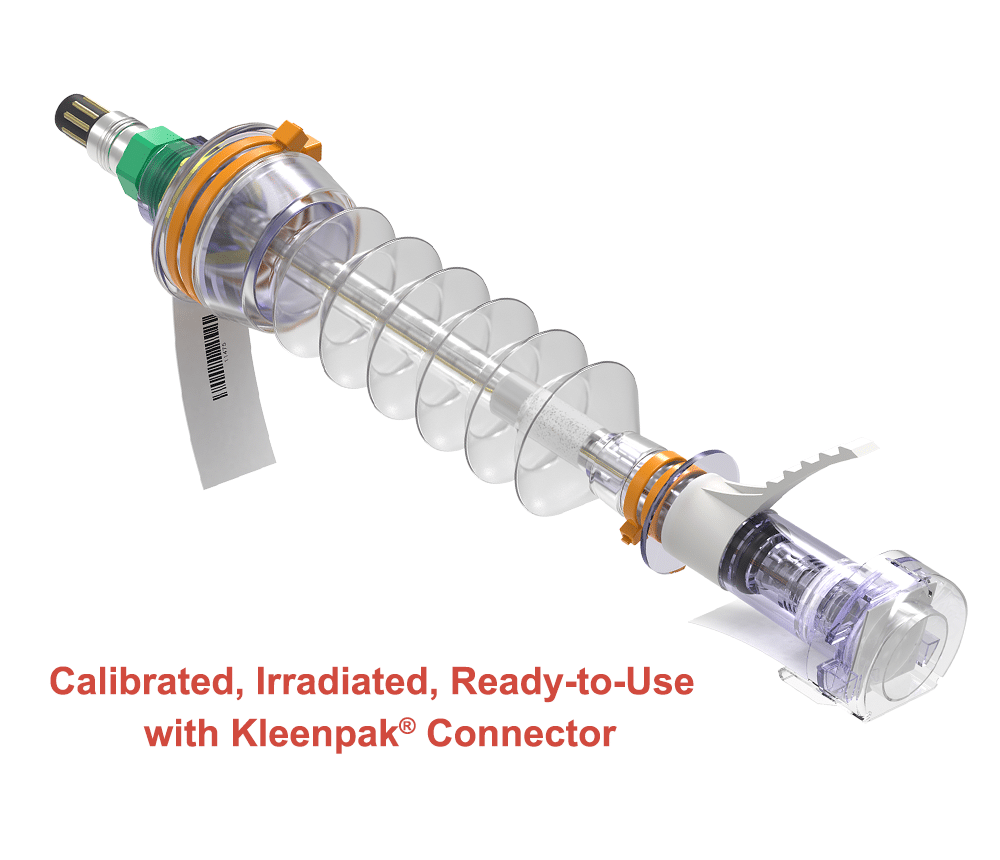

The Model SG310 is a gamma irradiated single-use pH sensor and bellows insertion assembly equipped with a Kleenpak^® connector for aseptic attachment to a bioprocess container (BPC). Enables the operator to quickly connect the pH sensor assembly to the BPC and aseptically insert the sensor into the media. Allows BPCs to be more generic in design and sensors added by operator as required.

Saves time, reduces risk

Calibration Tag Supplies Sensor Offset and Span

All Wetted Surfaces USP Class VI, BSE/TSE/ADI Free

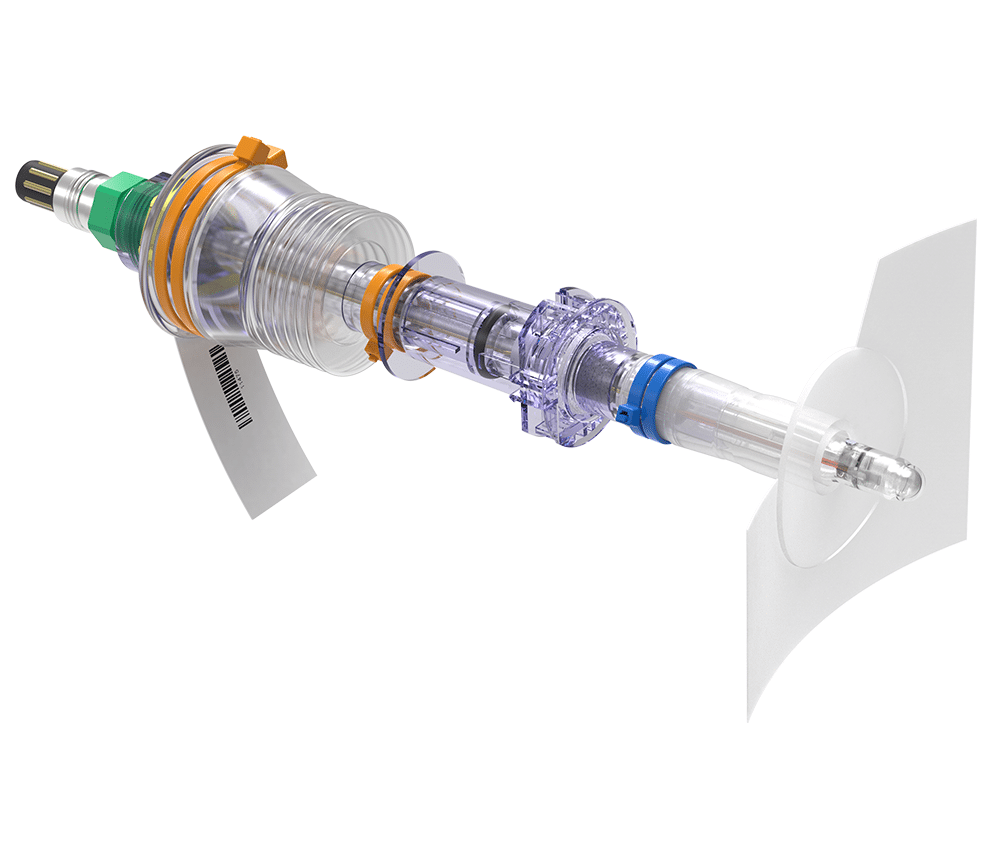

The Model SG310 is a gamma irradiated single-use pH sensor and bellows insertion assembly equipped with a Kleenpak^{^®} connector for aseptic attachment to a bioprocess container (BPC). The entire SG310 assembly is assembled and double bagged in an ISO 7 cleanroom prior to gamma irradiation. Enables the operator to quickly connect the pH sensor assembly to the BPC and aseptically insert the sensor into the media. Saves operator time and reduces risk of error.

Available with choice between three common sensor connectors, with and without RTD. See Specification Sheet for part number tables

Sensor Specifications

Measurement Range	2–11 pH
Operational Temp. Range	1°–40°C [34°–104°F]
Storage Temperature	5°–50°C [41°–122°F]
Shelf Life Post Gamma Irradiated	12 months
Gamma Tolerance Level	25-40 kGy
BPC Interface	Kleenpak^® connector (Pall Part Nbr ACD02F6)
Sensor Connectors	See P/N tables for options VarioPin V6, Schott S8, MettlerToledo K9
Sensor RTD	Available with Pt100 or Pt1000

How to Purchase

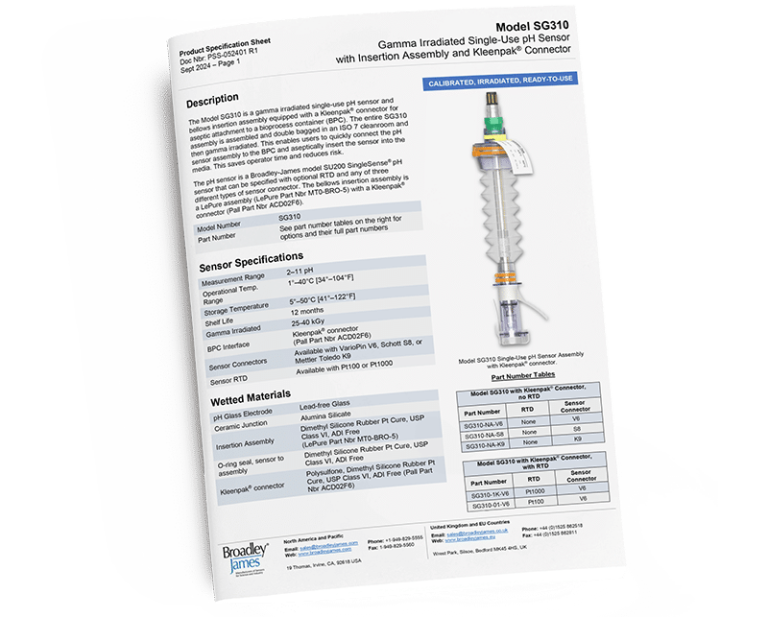

Please review the product purchasing sheet for product specifications and purchasing information.

Contact our sales team for more information.

Technical Sales

FAQs

Why choose a single-use, gamma irradiated, pH sensor assembly over a pre-installed built-in single-use pH sensor?

Improved Supply Chain Logistics: Preinstalled sensors can lead to longer deliver times from BPC providers. If the BPC design is more generic, delivers are faster.
Flexibility: Sensors can be added to BPC as needed and in the quantity needed
Redundacy: If a backup sensor is needed, the Model SG300 series pH sensor assembly can be installed in minutes into a spare ½ inch port.

Why choose a single-use, gamma irradiated, pH sensor assembly over an autoclaved pH sensor assembly?

Efficiency: Saves the time, training, equipment, and record keeping required for autoclaving sensors
Ease of use: Ready-to-Use out of the box. Installs in minutes
Security: Gamma irradiated. Less risk of less-than-perfect autoclave procedure. No 24 hour limit-of-use as necessary with autoclaved sensors
Reduced Risk: Gamma irradiation is less stressful on the sensor than the extreme heat of autoclaving

Why do I see moisture inside the bellows of my sensor insertion assembly?

Glass pH sensors have a porous ceramic junction that allows the reference electrolyte (a KCl solution) to contact the measured solution. During extended dry storage, the reference electrolyte may slowly leak from the junction by design, forming a visible drop of liquid inside the bellows.

This electrolyte is non-cytotoxic (data available on request) and diffuses very slowly into the process fluid under normal conditions, as with any glass pH sensor.
The presence of a small amount of liquid in the bellows is normal and does not indicate any damage to the sensor or create any additional exposure of the process to new materials.

Why is the pH sensor stored dry - I thought this was typically not recommended for glass pH sensors?

Glass pH sensors have a glass membrane that requires hydration to function properly. Therefore, the typical recommendation is to store pH sensors immersed in an aqueous buffer solution to ensure they are ready for use. Broadley-James SingleSense® pH sensors, however, overcome the need for continuous hydration by using a special glass formulation that can rehydrate quickly without affecting sensitivity, enabling a long dry shelf-life.
