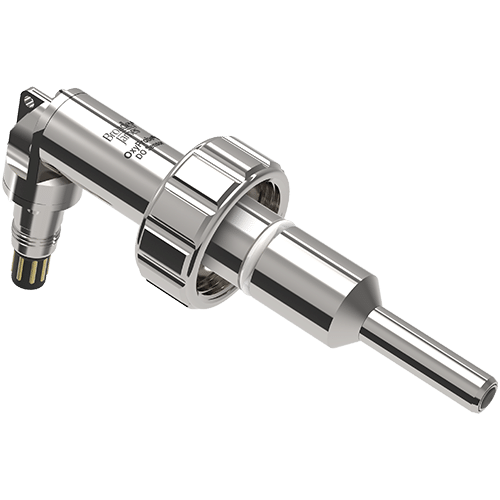

The D605-VP (25mm) Oxyprobe II Dissolved Oxygen Sensor offers the exact same functionality as the D605 but instead of our standard straight D9 connector it has a waterproof right-angled VarioPin connector for VarioPin assemblies. It is also available with a straight VarioPin connector.
The D605-VP features a right-angled connector rather than the straight connector seen in the D600-VP OxyProbe II. This low profile design provides:
- Protection against cable fatigue
- Improved grip for sensor extraction
- Increased clearance between vessels
- Reduced random sensor mobility on flat surfaces (won’t roll off the table)
Hygienic Sensor Design
- Microrganisms cannot adhere to the sensor surface due to the enhanced finish (N5/Ra15µ in Quality).
- The sensor is fully sterilizable and autoclavable.
Time-Saving Maintenance
- Membrane body and sensor inner body can be changed out very quickly. A simple membrane body replacement takes just two minutes and can be made on site by the user.
- Due to the modular design, the different sensors have basically the same spare parts. This minimises inventory stocking requirements.
D605-VP (25mm) Oxyprobe II Dissolved Oxygen Sensor Features Overview
- Autoclavable and steam sterilizable
- Accurate measurement and quick response.
- Long lasting and easy to maintain membranes.
- FDA positive listed materials of construction.
- Hygienically polished N5 surface finish (Max. Ra15µ in).
- Wetted O-rings comply with FDA and USP Class VI standards.
Other Highlights
- Comes with either waterproof VarioPin or D9 connector.
- T-Pull connector versions allow for easy removal from fermenter and reduces strain on cable.
- Straight connector version D600-VP also available.
- Variety of sensor lengths available.
Replaceable Anode/Cathode Assembly
A concept pioneered by Broadley-James, this unique assembly permits the sensor to be repaired quickly and reliably. Send your sensors to us for rebuild and save about half the price of purchasing a complete new sensor assembly!
Specification
- 316L Stainless Steel
- Serialised for traceability
- RA32 finish with electropolish on wetted parts
- Internal and external silicone o-rings
- Secured retainer ring
