Broadley-James supplies O-ring replacements for the various sensors and fittings that we manufacture.  Use the sizing chart to confirm exact dimensions.

O-rings for D.O. Sensors

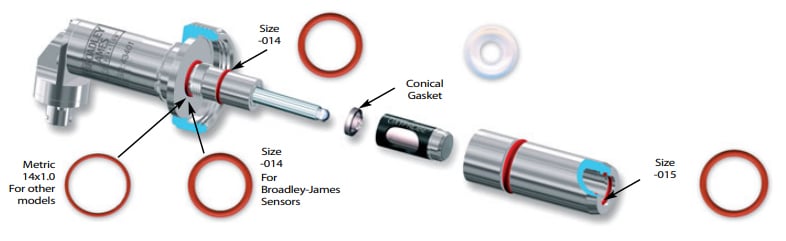

Internal O-rings for 19 mm and 25 mm D.O. Sensorso-rings for sensors

O-rings need to be replaced over time. Internal o-rings for 19 mm and 25 mm D.O. sensors are included with each membrane kit. However, bulk packs are also available.


Internal O-rings for 12 mm D.O. Sensors12 mm D.O sensor and cartridge v3

O-rings should be on hand when changing the membrane cartridge of a D.O. sensor. These internal o-rings are included in membrane cartridge kits.

However, membrane cartridge bulk packs do not include o-rings or electrolyte solution.




19 mm External O-ringsD205 oxyprobe with 016 silicone o-ring

This silicone o-ring will fit the external groove of any 19 mm D.O. sensor or housing. It should be replaced regularly to ensure that the housing or sensor fits securely into the port.

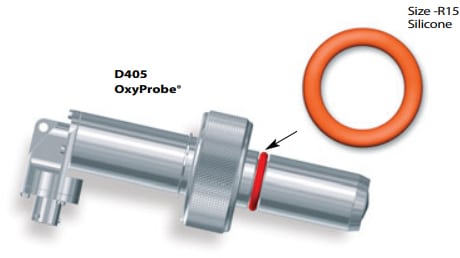

Standard 25 mm External O-ringsD405 oxyprobe with R15 silicone o-ring



The external silicone o-ring on a 25 mm D.O. sensor is the same as the one found on a 25 mm housing. It should be replaced regularly to ensure that the sensor fits securely into the port

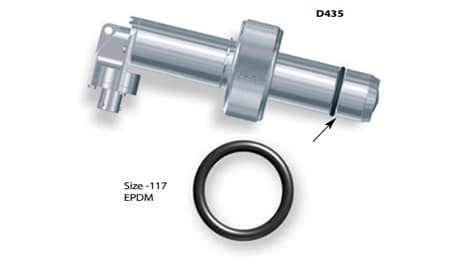

25 mm Sartorius External O-ringsD435 Sartorius DO sensor with 117 EPDM o-ring



The Sartorius D.O. sensors and housings have an EPDM o-ring seal.

The internal diameter is slightly larger and the cross-section is slightly smaller than the external silicone o-rings found on other Broadley-James 25 mm housings and D.O. sensors.




O-rings for D.O. Sensors and pH Electrodes



External O-rings for 12 mm D.O. Sensors and FermProbe® pH ElectrodesF635, F600 and D145 sensors with 111 viton o-ring and teflon washer



The Viton o-ring and Teflon washer found on 12 mm D.O. sensors is the same as those found on FermProbes with metric threads. These seals should last the lifetime of the sensor or electrode, but replacements can be purchased in sets of three.




O-rings for FermProbe ConnectorsF615 and F635 fermprobe sensors with 013 silicone o-ring



In order to keep moisture out of the connector during autoclaving, FermProbes have a small o-ring gasket at the base of the connector.

These o-rings should last the lifetime of the electrode. However, they may need to be replaced on occasion due to loss during handling.




O-rings for 25mm Housings

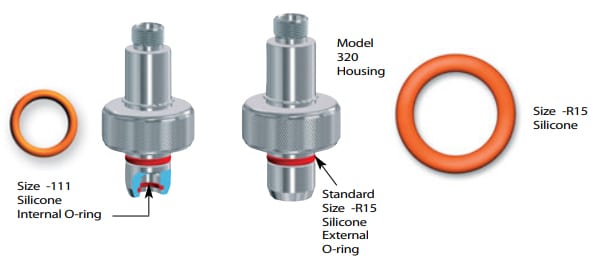

Standard 25 mm Housing O-rings320 housing with R15 and 111 silicone o-rings



Broadley-James Models 320, 330, 370 housings use the same set of o-rings. O-rings should be inspected regularly and replaced at the first sign of wear.

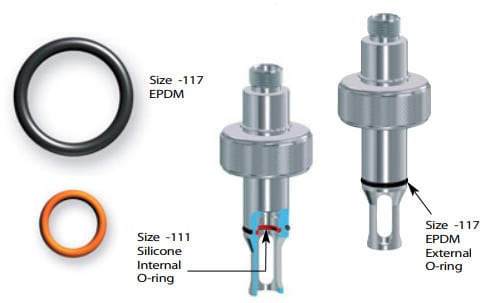

Sartorius Housing O-ringsSartorius biotech housing with 117 and 111 o-rings



The external EPDM o-ring on the Sartorius housings, Models 322, 326 and 336, has a slightly smaller cross-section than those found on other Broadley-James housings.

The internal silicone o-ring is the same on all Broadley-James housings. Regular inspection and replacement is recommended. Do not use grease on any housing o-ring.

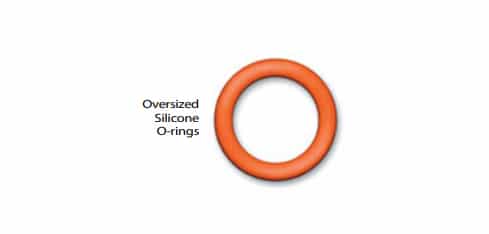

Oversized 25 mm O-ringsoversized silicone o-rings



Broadley-James also offers a thicker, more pliable o-ring for certain applications. It has a larger o.d. but is more compressible than other silicone o-rings. It can be used on any standard 25 mm housing or D.O. sensor. This unique o-ring was designed to compensate for port imperfections such as a port that is out-of-round or has an i.d. slightly greater than 25 mm.

Please see part numbers in the information table to order:

Part Image Part Number Size Material Int./Ext. Typically used in Quantity
oversized.1.0205in AG-SF25-10 (10-pack) Oversized Silicone (50 Durometer FDA Approved) External (designed to compensate for port imperfections, it has a larger o.d. and is more compressible than other silicone o-rings) 25 mm DO Sensors

25 mm pH Housings

10
oversized.1.0205in AG-SR15-50 (50-pack)

AG-SR15-25 (25-pack)

AG-SR15-10 (10-pack)

-R15 Silicone External (replace regularly to ensure the housing or sensor fits securely into the port) 25 mm DO Sensors

25 mm pH Housings

50, 25, 10
-117-epdm.9965in AG-E117-50 (50-pack)

AG-E117-25 (25-pack)

AG-E117-04 (4-pack)

-117 EPDM External (i.d. is slightly larger and cross-section is slightly smaller than silicone o-rings found on our other 25 mm D.O. sensors pH housings) 25 mm B. Braun Biotech DO Sensors

25 mm B. Braun Biotech pH Housings (326, 336)

50, 25, 4
-016-silicone.7565in AG-S016-50 (50-pack)

AG-S016-25 (25-pack)

AG-S016-10 (10-pack)

-016 Silicone External (replace regularly to ensure the housing or sensor fits securely into the port) 19 mm DO Sensors

19 mm pH Housings

(fits the external groove)

50, 25, 10
-015-silicone.6925in AG-9206-10 (10 sets) -015 Silicone Internal 19 mm and 25 mm DO Sensors 10 (1 per set)
-014-silicone.6300in AG-9206-10 (10 sets) -014 Silicone Internal 19 mm and 25 mm DO Sensors 20 (2 per set)
AM-9315-epdm.6300-in AG-E014-10 (10-pack) -014 EPDM Internal 12 mm, 19 mm and 25 mm DO Sensors 10
metric-14x1.0.6300in AG-9206-10 (10 sets) 14 x 1.0 (metric) Silicone Internal 19 mm and 25 mm DO Sensors 10 (1 per set)

(See also: KA2501 and KA2504 cartridge kits)

-111-silicone.623in AG-S111-50 (50-pack)

AG-S111-25 (25-pack)

AG-S111-10 (10-pack)

-111 Silicone Internal 25 mm pH Housings (320, 330,370)

25 mm B. Braun Biotech pH Housings (326, 336)

50, 25, 10
-111-viton.6280-in 300-P102 (3 sets)

300-P101 (3 sets)

-111 Viton External (seals should last the lifetime of the sensor) 12 mm DO Sensors

12 mm pH Electrodes
(F-615, F-635, F-695)

3 (1 per set)
-013-silicone.5785in  AG-S013-25 (25-pack)

AG-S013-04 (4-pack)

 -013  Silicone  External (fits at the base of the connector to keep moisture out during autoclaving)  12 mm pH Electrodes  25, 4
 D140Conn-epdm.490-in  AM-9316 (1-pack)  10.4 x 1.0 mm  EPDM  Internal  12 mm DO Sensors (fits the connector)  1
 -011-epdm.4405in  AG-E011-25 (25-pack)  -011  EPDM  Internal  12 mm DO Sensors (o-rings should be on hand when changing the membrane cartridge) 25

(See also: KA1201 and KA1204 cartridge kits)

 300_P101A-teflon-wash.6810  300-P101 (3 sets)  – Flat Teflon Washer  External (seals should last the lifetime of the sensor)  12 mm pH Electrodes (F-615) 3 (1 per set)
 300_P102A-bevel-teflon.6970  300-P102 (3 sets)  –  Bevelled Teflon Washer  External (seals should last the lifetime of the sensor)  12 mm DO Sensors

12 mm pH Electrodes (F-635, F-695)

3 (1 per set)
 AG-9206-conical-gasket.4965  AG-9206-10 (10 sets)  – Conical Silicone Gasket  Internal 19 mm and 25 mm DO Sensors 10 (1 per set)
