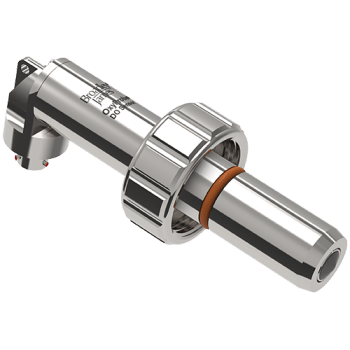

The OxyProbe D405 (25mm) Dissolved Oxygen sensor offers rugged performance for side ports. It does not need a housing as it fits directly into the vessel, therefore reducing risks of contamination.
This Broadley-James D405 dissolved oxygen sensor has a right angle connector. This low profile design provides:
- Protection against cable fatigue
- Improved grip for sensor extraction
- Increased clearance between vessels
- Reduced random sensor mobility on flat surfaces (won’t roll off the table)
Alternatively, you can have the sensor with a straight connector as D400.
Specification
Features:
- 316L Stainless Steel
- Serialised for traceability
- RA32 finish with electropolish on wetted parts
- Internal and external silicone o-rings
- Secured retainer ring
The internal seals of an Oxyprobe are all mechanical seals using o-rings. There are no adhesives to leak or fail in process, making this a more rugged and reliable sensor. Replacing the cathode is also much easier and faster since there is no sealant to clean from the threads. No sealant also makes the job of replacing the cathode much faster and cleaner.
Membrane Kits
Broadley-James offer a range of membrane kits to suit all our dissolved oxygen sensors. These include everything required to replace the membrane cartridge and internal o-rings. All kits include:
- QC Certificate
- Material Cert
The following membrane kits are suitable for use with the D405 Dissolved Oxygen Sensor:
Compatible Cables
The D405 DO Sensor uses a D4 connector. This industry standard connector was the first, and is still, the best choice for DO sensors. We recommend the following cables for use with the D405 Dissolved Oxygen sensor:
