Cable Selection guide

tpull

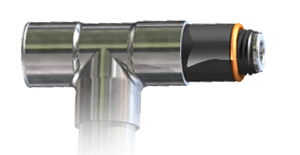

T-Pull

  • This FermProbe® style features a standard S8 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The standard metric cap is a newer autoclavable design that protects the connector pin from breakage.
  • The design requires the rotation of the electrode during installation.
Cable Type Sensor Connector & Device Connector Device Terminal
HP Plug to BNC Plug, Type A S8 cable to BNC A BNC jack
HP Plug to BNC Plug, Type M S8 cable to BNC M BNC jack
HP Plug to DIN Plug, Type M S8 cable to DIN M DIN jack
 HP Plug to Crimped Ferrules, Type M  s8 cable ferrules M  Terminal block
 HP Plug to Ferrules, Solution Ground, Type N
  s8 cable ferrules N  Terminal block

HP Plug to Spade Lugs, Type M

 s8 cable spade Terminal block

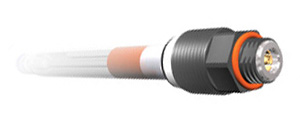

pH connector

Standard S8 Metric Cap (pH/Redox)

  • This FermProbe® style features a standard S8 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The standard metric cap is a newer autoclavable design that protects the connector pin from breakage.
  • The design requires the rotation of the electrode during installation.
Cable Type Sensor Connector & Device Connector Device Terminal
HP Plug to BNC Plug, Type A S8 cable to BNC A BNC jack
HP Plug to BNC Plug, Type M s8 cable to BNC M BNC jack
HP Plug to DIN Plug, Type M s8 cable to DIN M DIN jack
 HP Plug to Crimped Ferrules, Type M  s8 cable ferrules M  Terminal block
 HP Plug to Ferrules, Solution Ground, Type N
  s8 cable ferrules N  Terminal block

HP Plug to Spade Lugs, Type M

 s8 cable spade Terminal block

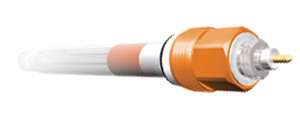

K9-connector

K9 Metric Cap (pH/Redox)

  • The original K9 autoclavable cap design is still used in many existing bioprocess systems.
  • This FermProbe® style features a K9 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The design requires the rotation of the electrode during installation.
Cable Type Sensor Connector & Device Connector Device Terminal
KP plug to BNC, Type M k9 cable to BNC M BNC jack
KP plug to DIN, Type M k9 cable to DIN M DIN-jack

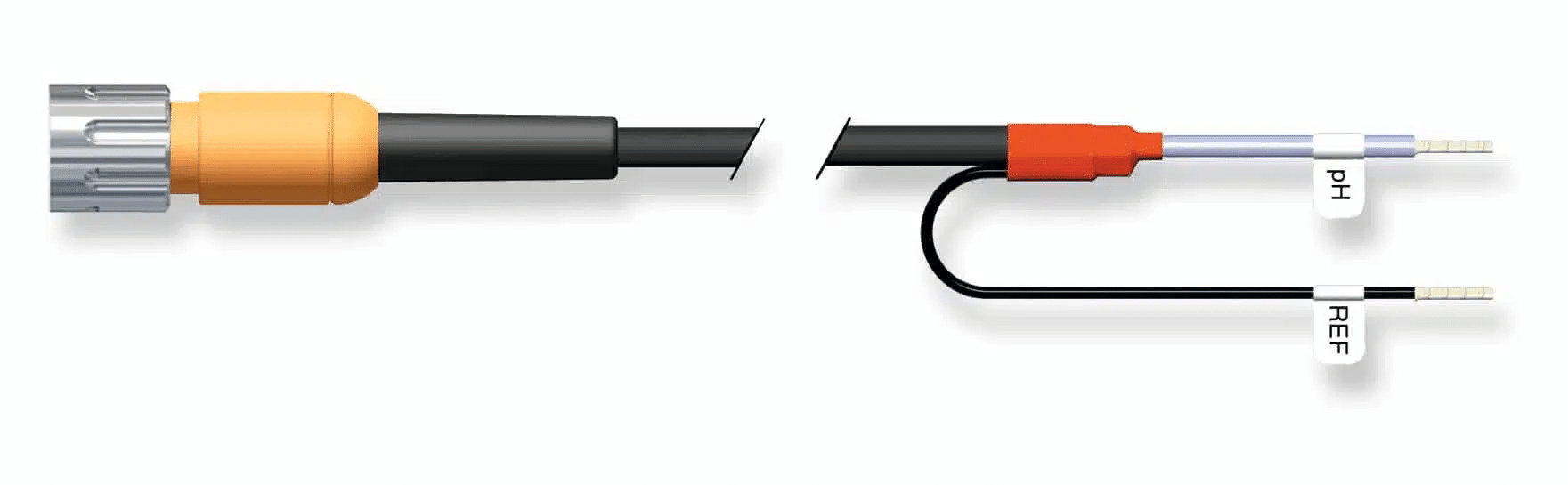

KP Plug to Ferrules, Type M k9 cable ferrule M terminal-block
KP plug to Ferrules, Solution Ground, Type N k9 cable ferrule N terminal-block
KP plug to Spade lugs, Type M k9 cable spade M terminal block

Variopin-connector-pH

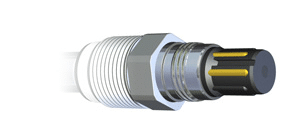

Variopin Connector (pH)

  • This multifunctional electrode is capable of both receiving and processing a number of signals at the same time.
  • The Variopin (VP) connector allows simultaneous pH and temperature readings.
  • VP plug is completely watertight in unconnected condition.
  • High temperature resistance through the use of PEEK material.
Cable Type Sensor Connector & Device Connector Device Terminal
VP plug to Ferrules variopin_cable-ferrules-m terminal-block

D4-connector

D4 Connector (DO)

  • Industry standard 4-pin connector. Hermetically sealed, gold plated contacts in a glass insulator offer the ultimate in signal isolation and transmission.
  • Less expensive molded plastic connectors are not used.
  • This industry standard connector was the first, and is still, the best choice for DO sensors.
Cable Type Sensor connector & Device Connector Device Terminal
D4 plug to Lemo 6 lemo6-d lemo6

D4 plug to BNC and Spade lugs

 bnc-d bnc-jack

D4 plug to DIN and Spade lugs

  din-d  DIN-jack
DO Cable D4 to Crimped Ferrules crimp-d terminal-block

D4 plug to Spade Lugs

 spade-d-2 terminalblock (2)

Variopin-connector-DO

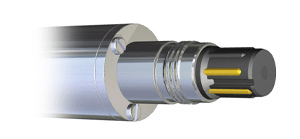

Variopin Connector (DO)

  • This multifunctional electrode is capable of both receiving and processing a number of signals at the same time.
  • The Variopin (VP) connector allows simultaneous pH and temperature readings.
  • VP plug is completely watertight in unconnected condition.
  • High temperature resistance through the use of PEEK material.
Cable Type Sensor Connector & Device Connector Device Terminal
VP plug to Ferrules variopin_DOcable-ferrules-m terminal-block
