Stock Cable Assemblies for All F-695 FermProbe® pH Electrodes

  • Stock cable assemblies feature most commonly requested cable lengths and connector schemes.
  • Cables are tagged with replacement part numbers to enhance field serviceability.
  • Cable assemblies are 100% tested for continuity, polarity, and the absence of short circuits.
Category:

Broadley-James offer a wide range of cable assemblies to connect FermProbe pH electrodes with all of today’s pH transmitters and benchtop controllers. The cables and electrodes are color coordinated so that the orange KP electrode plug will connect to the orange K9 cap on the pH electrode.

This Type N 5 mm, low noise, shielded coaxial cable for HP Plug to Crimped Ferrules, jacketed with an extra lead for connecting solution ground to differential input style transmitters. It connects to either terminal blocks or terminal strips. Cables are tagged with replacement part numbers to enhance field serviceability. Cable assemblies are 100% tested for continuity, polarity, and the absence of short circuits.

Specification for pH Cables

Cable Type Sensor Connector & Device Connector Device Terminal
pH Cable solution ground, KP plug to Ferrules, Type N K9 pH cable to ferrule terminal block

This is a Type N 5 mm, low noise, shielded coaxial cable, jacketed with an extra lead for connecting solution ground to differential input style transmitters.

Stock cable assemblies feature the most commonly requested cable lengths and connector schemes (see Ordering Information tab for part number details). For custom cable assemblies please see the tab for ordering custom cables.

A wide selection of connectors is available upon request.

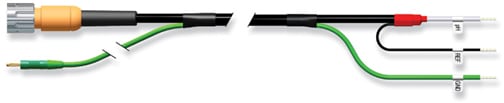

KP Electrode Plug with Solution Ground to Crimped Ferrules

  • Rugged 5 mm cable
  • Connects to either terminal blocks or terminal strips
Cable Part Number Connector A Cable Type Cable Length Connector B
AX-1000-K5-N03FF KP plug N 3 ft. (1 m) Crimped Ferrules
AX-1000-K5-N06FF KP plug N 6 ft. (2 m) Crimped Ferrules
AX-1000-K5-N10FF KP plug N 10 ft. (3 m) Crimped Ferrules

How to Order Custom Cables

Use the Custom Cable Worksheet (.pdf) to specify custom cable assembly requirements. Return it by fax or mail to receive a quotation within 24 hours.
