Specification
| pH Range | 0 – 14 pH |
| ORP Range | ± 5000 mV |
| Temp Range | 0 -140º C |
| Max Pressure/Temp | 100 psig at 120º C |
| Reference | Ag-AgCl |
| Wetted Materials | Ryton, Teflon, Glass |
| Standard cable length | 7 Feet |
ST956 Submersion & In-Line DynaProbe pH and ORP Sensors with Solution Ground

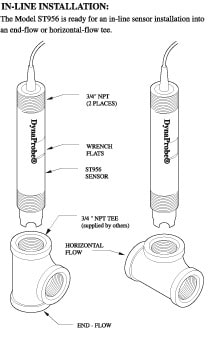

The ST956 is a rugged, sealed sensor assembly designed for in-line or submersion applications. The patented solid state reference cell features the unique IonTrap® design for extended service life in the most severe applications. The body, with an integral 3/4″ MNPT insertion thread, is moulded from chemically resistant Ryton (PPS) and the reference junction is porous Teflon. Built-in temperature compensators are available. Features include built-in sensor guard that protects the sensor tip from impact. Sensor also available in ORP (Redox) version.
Ordering Information
Looking for a quote or to discuss your needs?
Our global team are on hand to help
Get a QuoteYou can also review the documentation for technical details and purchasing information.
| Please use this information to build your part number. If you need any assistance, please contact us. | ||||||||||
| Part No. | 1 | 2 | 3 | 4 | – | 5 | 6 | 7 | 8 | 9 |
| ST956 | __ | __ | __ | __ | – | __ | __ | __ | __ | __ |
1 — Liquid Junction
- [R] Recessed Coaxial Teflon
2-3 — Measurement Sensor
- [33] pH, HT-3 Rugged Dome Bulb
- [43] pH, HT-4 High pH bulb (for pH 13 and above)
- [PB] ORP, Platinum Band
4 — Temperature Compensator: (for direct input into following manufacturer’s preamp/instrument)
- [0] T.C. not required
- [1] 3K Ohms for most older Models of TBI/Bailey, Uniloc, and other US manufacturers
- [9] 301 Ohms for older Great Lakes Models: 60, 70, 90, 570, and 690
- [D] Pt 100 Ohms for Beckman Model SoluComp, TBI/Bailey (ABB) TB82 & TB84, Uniloc 1054, Foxboro 870 & 874, Yokogawa, and most European Models
- [H] Pt 1000 Ohms for Yokogawa, Conducta, Polymetron, LTH, & many European models
5 — Cable Type:
- [N] Jacketed LowNoise Coax w/ leads for Solution Ground & T.C.
6-7 — Cable Length:
- [07] 7 ft. is standard length
- [XX] Specify length (in feet) above 7 ft. standard length
8-9 — Required Sensor Connectors:
- [BC] BNC only (for use with ORP sensors or with sensors w/o TC or solution ground)
- [FB] BNC for pH and ferrules on all other leads (for use with Terminal Block or Terminal Strip)
- [FF] All Ferrule connectors ( for use with Terminal block or Terminal Strip)
