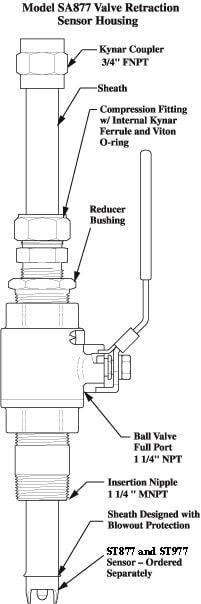

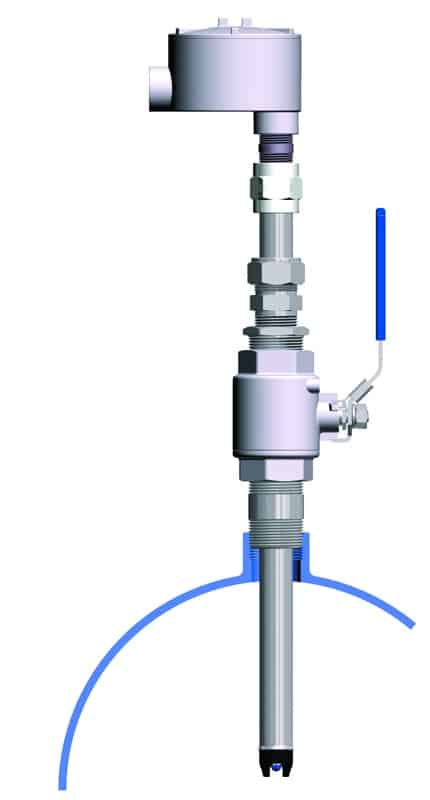

An assortment of insertion lengths are available from 2 inches to 27 inches. Viton O-ring seals are incorporated throughout this housing to prevent damage to the sensor and to retard process seepage during insertion and retraction procedures. The sheath is designed with blowout protection, should the compression fitting be loosened at the process operating pressure. The SA877 sensor housing is designed with replaceable components providing simple and economic servicing.
Specification
pH Range: 0-14 pH (w/DynaProbe)
ORP Range: ± 5000 mV (w/DynaProbe)
Temp Range: 0 -120º C
Max Pressure/Temp: 100 psig at 90º C
Wetted Materials: 316 SS, Kynar (PVDF), and Viton O-Rings, with an optional Titanium Sheath version available
