Better control of reagents invariably produces chemical savings and improved recovery rates. The sensor produces a reduction potential of -200 to -500 mV over a 10ppm to 300ppm concentration range. It’s solid-state, quadruple reference (Patent 5147524 by Broadley-James Corp.) provides stability and durability in measuring CN- concentration in mining slurries.

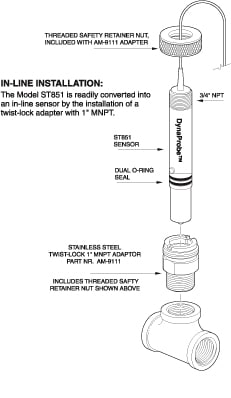

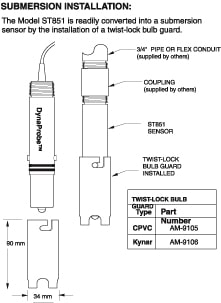

A 3/4″ MNPT process connection on the cable side of the sensor allows easy submersible installation of this compact, rugged sensor.
Specification
ORP Range: ± 5000 mV
Temp Range: 0 -120º C
Max Pressure/Temp: 50 psig at 120º C
Reference: Ag-AgCl
Wetted Materials: Ryton, Teflon or Wood, Glass, Viton O-Rings

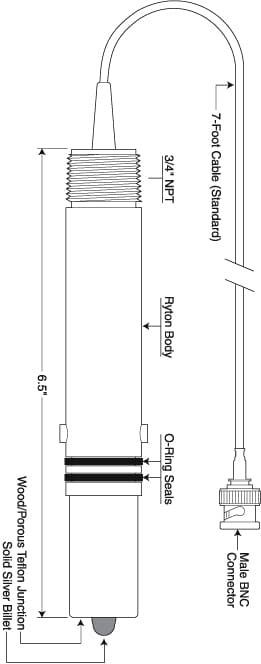

Standard cable length: 7 Feet
