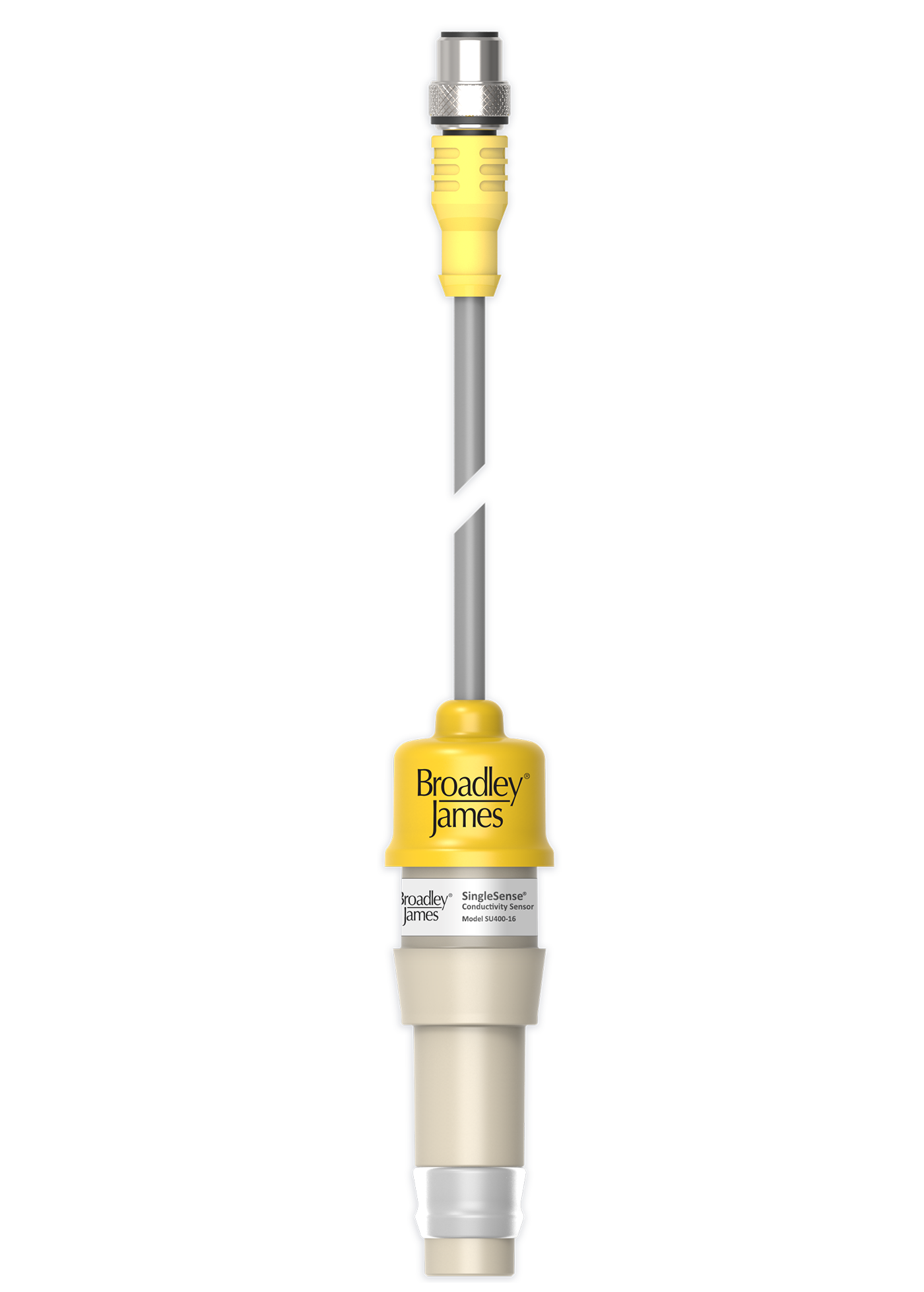

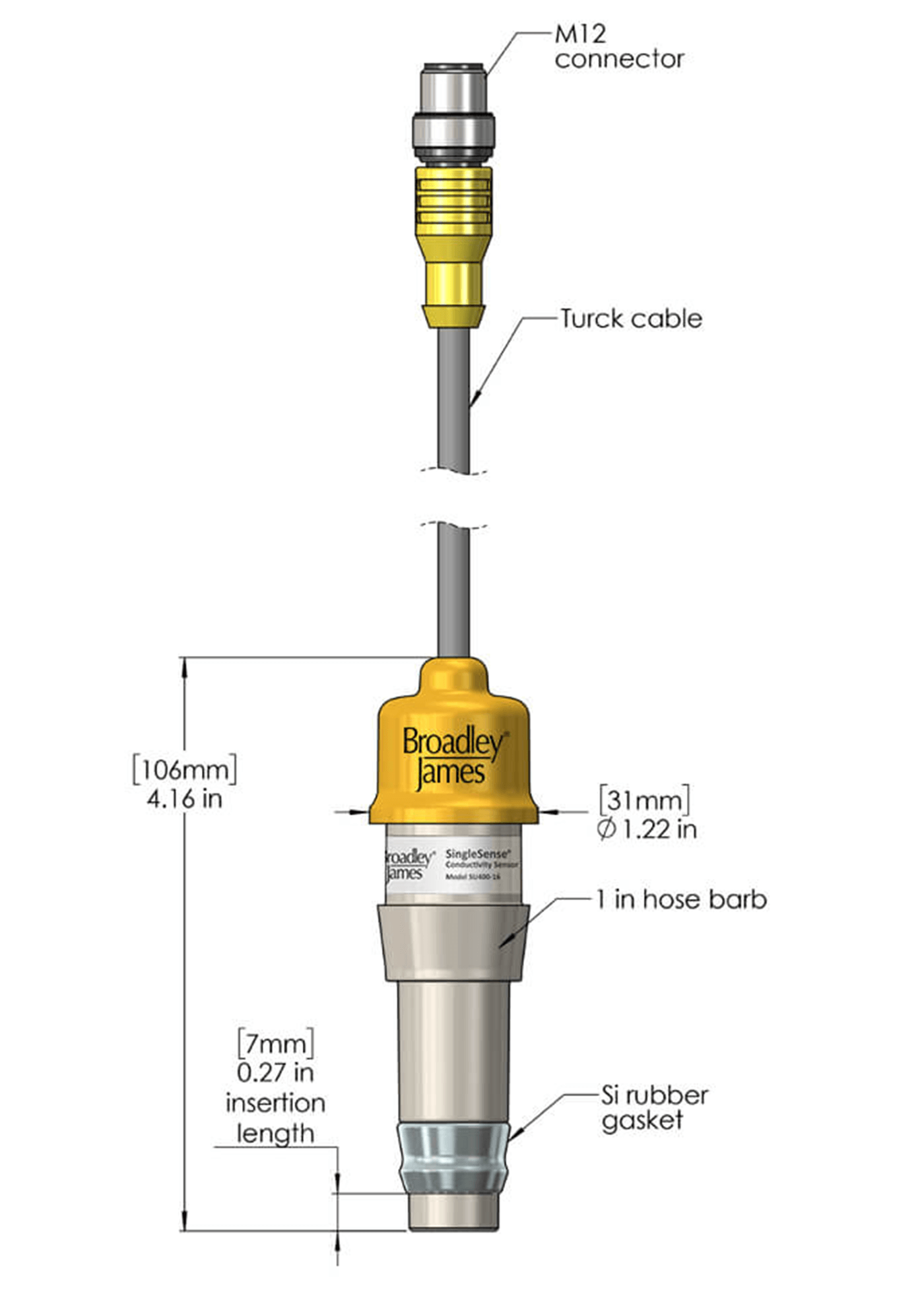

The SingleSenseĀ® Model SU400 Single-Use Conductivity Sensor is gamma irradiation compatible and designed for preinstallation into a bioprocess container (BPC) via a 1-inch hose barb port. Ideally suited for upstream applications such as media prep and cell culture.
Sensor Specifications
|
Measurement Principle |
4-electrode sensor |
|
Output Signal |
Analog |
|
Measurement Range |
0.1 – 100 mS/cm |
|
System Accuracy |
0.1 – 1 mS/cm +/- 0.05 mS/cm 1 – 100 mS/cm +/- 5% |
|
Operating temperature |
4Ā°C – 50Ā°C [39Ā°F – 122Ā°F] |
|
Temperature Accuracy |
+/- 0.1 Ā°C |
|
Shelf Life |
30 months |
|
Gamma Tolerance Level |
50 kGy |
|
Process Connection |
1-inch hose barb port |
|
Sensor Connector |
M12-8 |
|
Temperature Sensor |
Pt 1000 |
Wetted Materials
| Main Sensor Body |
PEEK |
| Electrodes |
Stainless steel 316L |
|
Port Gasket |
Dimethyl silicone rubber Pt cure |
Regulatory Compliance
| USP Class VI | Yes, all wetted parts |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| BSE/TSE/ADI Free | Yes |
