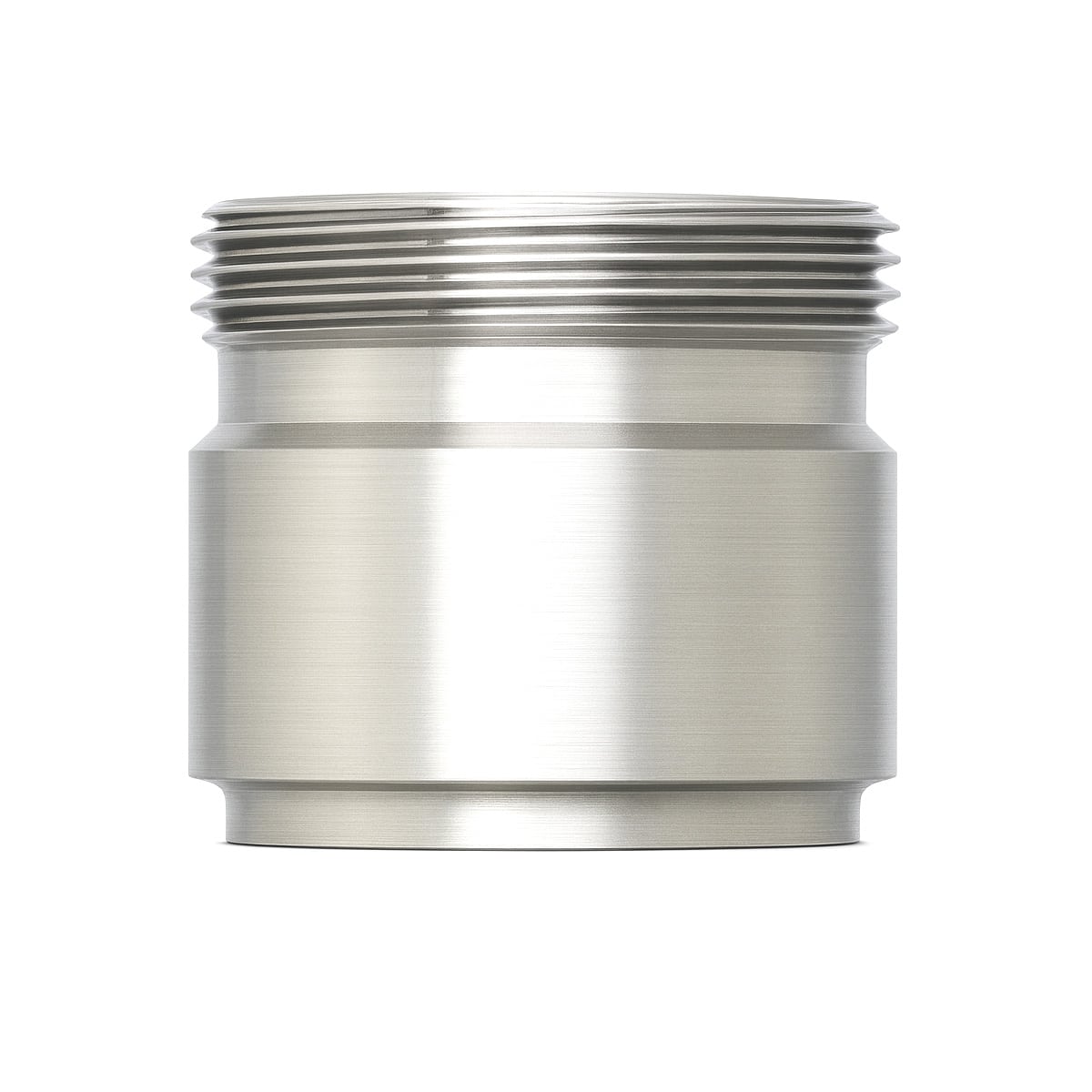

Internal diameters vary to accommodate two different approaches to welding a port to a vessel.

Get Quote / More Info

Model 100 (AF-100-60-L040) Has an inner diameter of 25 mm to allow immediate use after welding.

Model 105 (AF-105-60-L040 Undersized) Has a slightly smaller i.d. to allow the port to be honed out to the proper diameter after it has been attached to the vessel. This second approach is more forgiving of different welding techniques.

Part Number Size and Material Compatible Plugs Compatible Housings Installation Certs
Model 100 (AF-100-60-L040) 25 mm Straight Threaded Ports316L Stainless SteelTop Mount Model 300
Model 303
Model 320
Model 330
Installation Guide A Material Technical Report is sent with each order
Model 105 (AF-105-60-L040 Undersized) 25 mm Straight Threaded Ports316L Stainless SteelTop Mount Model 300
Model 303
Model 320
Model 330
Installation Guide A Material Technical Report is sent with each order



The electrode housing is designed to hold and protect the pH electrode while inserting it into the bioprocess vessel. There are various types of side entry ports and different groups of housings to fit each port type. The size and make of the port must first be identified in order to narrow the selection process.

111aStandard 25mm Side Port

Found on nearly all vessels other than those manufactured by B. Braun Biotech. The port bore is 25 mm i.d. and the housing o-ring seals to the inside of the port. The housing is then secured to the port by a threaded retainer ring. The port is installed at a 15° angle for better electrode performance. See the cutaway drawing to the right for typical installation dimensions.

111bB. Braun Biotech 25 mm Safety Port

Found exclusively on vessels manufactured by B. Braun Biotech. This style of port is longer than the standard port and needs a special housing to fit correctly. (Note: the port opening on newer tanks is 30 mm i.d. and the port narrows down to 25 mm i.d. at the critical point where the housing o-ring seals to the inside wall of the port.) Again, the port is installed at a 15° angle for better electrode performance. See the cutaway drawing to the right for typical installation dimensions.
