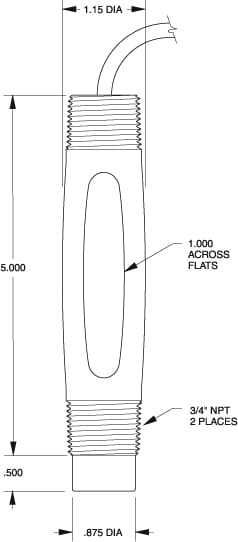

S410 pH/ORP Sensor 3/4″ Threads & Recessed Bulb

1 — 2 Body Style

• [10] Standard Insertion, No Guard, 3/4″ NPT

3 — Body Material

• [R] Ryton
• [G] Grounded

4 — Liquid Junction

• [T] Coaxial Teflon^®
• [R] Recessed Coaxial Teflon^® (only available on probes without T.C.)

5 — 6 Measurement Electrode:

• [33] pH, HT-3 Rugged Dome Bulb
• [43] pH, HT-4 High pH Bulb (for pH 13 and above)
• [53] pH, TX4 HF resistant bulb
• [PB] ORP, Platinum Band
• [17] pH, General Purpose, Flat Bulb

7 — Temperature Compensator:

• [0] T.C. not required
• [1] 3K Ohms, used on older models of TBI/Bailey & Uniloc transmitters
• [9] 301 Ohms for use with older Great Lakes models, such as 60, 70, 90, 570 and 690
• [D] Pt 100 Ohms for Rosemount (Uniloc) 1054, Beckman SoluComp, TBI/Bailey TB82 & TB84, Foxboro 870 & 874, Yokogawa and many European models
• [H] Pt 1000 Ohms for Yokogawa, Conducta, Polymetron and many European models

8 — Cable Type:

• [A] 3 mm Low Noise Coax, for pH without built-in TC, or for ORP
• [M] 5 mm Low Noise Coax, for pH without built-in TC, or for ORP
• [E] Jacketed Coax w/ TC leads
• [N] Jacketed Coax w/ TC and solution ground leads

9 — 10 Cable Length:

• [10] 10 ft – standard length
• [XX] Specify length (in feet)

11 — 12 Sensor Connectors:

• [BC] BNC only (for use with ORP electrodes or with sensors w/o TC or solution ground)
• [FB] BNC for pH and Ferrules on all other leads (for use with Terminal Block or Terminal Strip)
• [FF] All Ferrule connectors (for use with Terminal Block or Terminal Strip)
