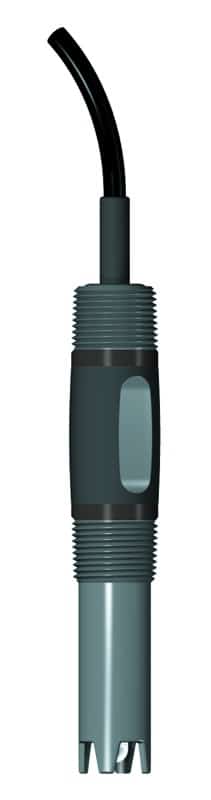

In-Line & Submersion
Maximum Flow Rate
10 ft (3 m) per second
Chemical-resistant Wetted Materials
These high quality sensors are constructed of corrosion-resistant wetted materials including Ryton®, Teflon® and glass.
Coaxial Porous Teflon® Reference Junction
The large annular junction resists fouling. Also, the sealed, double-junction reference electrode is highly resistant to poisoning.
pH Range: 0-14 pH
Redox Range: ± 5000 mV
Temp Range: 0 -105º C
Max Pressure/Temp: 150 psig at 100º C
Wetted Materials: Ryton, Teflon & Glass
Standard cable length: 3 meters (10 Ft)
