FermProbe^® pH Sensors

The FermProbe Double Junction Reference System

All FermProbes have two built-in electrolyte chambers that act to protect and isolate the sensitive inner AgCl reference half-cell. This "double junction", dual-chamber design effectively prevents the most common failure modes of pH sensors in biopharmaceutical applications.

Only the inner, smaller chamber contains silver ions in the electrolyte. The larger chamber is free of silver ions. This design prevents silver ions from coming into contact with proteins or sulfide ions in the sample media. Reactions between proteins or sulfide ions and the silver ions will cause the formation of substances that will clog the outer ceramic reference pin junction.

All pH and Redox FermProbes have this double junction reference system as a standard feature to insure maximum service life over the widest range of operating conditions.

Wetted Material List for all FermProbes

(A) Glass Outer Body: Potash soda lead glass

(B) Glass Bulb: Silica glass made with small percentages of alkali elements. The exact formulation is proprietary and confidential.

(C) Porous Ceramic Liquid Junction: Silica plus complex mineral compounds fired at high temperature to form an inert, porous ceramic matrix. The exact formulation is considered proprietary and confidential.

(D) Internal Electrolyte Gel:

1. Potassium Chloride, 3.8 M
2. Cellulose thickening agent, USP Grade

(E) All wetted materials are compliant with applicable FDA regulations.

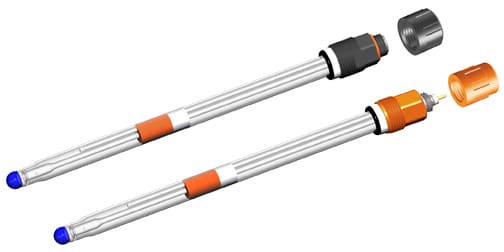

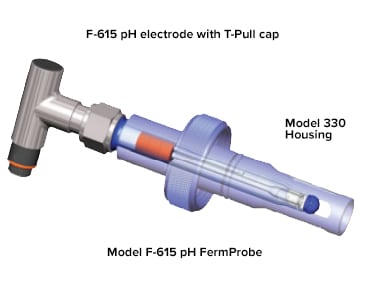

FermProbe^® pH sensors with T-Pull^® Cap

The T-Pull cap eases installation and removal of the sensor from the housing and greatly reduces fatigue of the extension cable. The sensor can be removed from the housing without rotating the sensor and twisting the cable, further reducing cable fatigue.

Features:

• Rugged T-Pull cap eases sensor removal. No tools required.
• T-Pull design greatly reduces cable fatigue.
• Sensor retainer nut is part of handle. Cannot be lost or misplaced.
• Standard S8 detachable cable connection.
• Available in both disconnect cap and integral cabled versions.

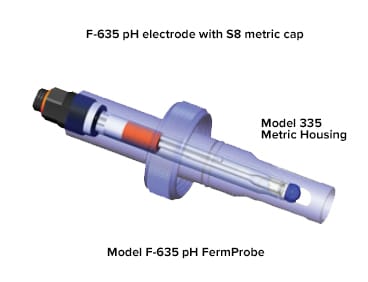

FermProbe^® pH sensors with Standard S8 Metric Cap

This FermProbe style features a standard S8 detachable cable connection on a metric threaded polymer cap that allows the sensor to be used with European style sensor housings. The design requires the rotation of the sensor during installation. It is compatible with Eurodesigned housings requiring a metric Pg13.5 threaded sensor cap.

Features:

• Standard S8 detachable cable connection
• Polymer disconnect cap with metric Pg13.5 threads.
• Compatible with European designed bioprocess housings.

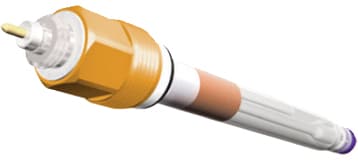

FermProbe^® pH sensors with K9 Metric Cap

This FermProbe style features a K9 detachable cable connection on a
metric threaded polymer cap that allows the sensor to be used with
European style sensor housings. The design requires the rotation of
the sensor during installation. It is compatible with Euro-designed
housings requiring a metric Pg13.5 threaded sensor cap.

Features:

• K9 detachable cable connection
• Polymer disconnect cap with metric Pg13.5 threads.
• Compatible with European designed bioprocess housings.

T-Pull Cap

The T-Pull handle eases installation and removal of the sensor from the housing and greatly reduces fatigue of the extension cable. The sensor can be removed from the housing without rotating the sensor and twisting the cable. Also, the retainer nut is part of the handle and cannot be lost or misplaced. This FermProbe^® style has a standard S8 detachable cable connection on a metric threaded polymer cap that allows it to be used with European style sensor housings.

Features:

- Rugged T-Pull cap design eases removal of sensor from housing. No tools required.
- Greatly reduces cable fatigue.
- Sensor retainer nut is part of the handle. Cannot be lost or misplaced.
- Available with integral cable.

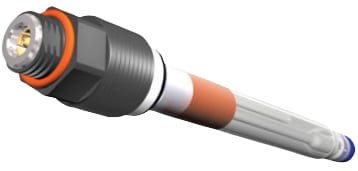

Standard S8 Metric Cap

This FermProbe^® style features a standard S8 detachable cable connection on a metric threaded polymer cap that allows the sensor to be used with European style sensor housings. The standard metric cap is a newer autoclavable design that protects the connector pin from breakage. The design requires the rotation of the sensor during installation. It is compatible with Euro-designed housings requiring a metric Pg13.5 threaded sensor cap.

Features:

- Metric threaded cap is compatible with nearly all European designed bioprocess sensor housings.
- Steam sterilizable and autoclavable.
- First choice for use with small autoclavable vessels.
- Available in a variety of lengths for different insertion length requirements and applications.

K9 Metric Cap

The original K9 autoclavable cap design is still used in many existing bioprocess systems. This FermProbe^® style features a K9 detachable cable connection on a metric threaded polymer cap that allows the sensor to be used with European style sensor housings. The design requires the rotation of the sensor during installation. It is compatible with Euro-designed housings requiring a metric Pg13.5 threaded sensor cap.

Features:

- Metric threaded cap is compatible with nearly all European designed bioprocess sensor housings.
- Steam sterilizable and autoclavable.
- First choice for use with small autoclavable vessels.
- Available in a variety of lengths for different insertion length requirements and applications.

TRIS buffers are used by biochemists to control pH in the physiological range (about 7 to 8 pH) because phosphates cause undesirable side reactions with the biological substances in their test samples.

However, when pH measurements are to be made on these solutions, another type of "undesirable side reaction", involving the pH sensor system, must be recognized. The common Silver-Silver Chloride reference sensor used with most combination pH sensors has a Potassium Chloride salt-bridge which is saturated with Silver Chloride. This salt-bridge system works well in most samples, but not in biological samples containing proteins or related materials. The quite low concentration of Silver ion (about 0.0001 M) is sufficient to react with proteins and produce an insoluble precipitate in the porous liquid junction structure of the sensor and thus cause errors in pH measurement due to the development of substantial "liquid junction" potentials across this plug of precipitate.

This problem can be avoided quite simply by using a sensor with a calomel reference internal element, or a "double-junction" design. Either reference internal cell is contained in its own glass tube structure within the salt-bridge, and the Potassium Chloride solution does not contain heavy metals. Thus, none of the undesirable precipitates form, the reference junction remains unplugged, and the liquid junction potential remains negligible.

Dr. John E. Leonard, Broadley-James Corporation

10/81

Accurate pH Measurements in Tris Buffer Solutions

Introduction

Tris, or tris (hydroxymethyl) aminomethane, has been widely used as a pH buffer in biological media for approximately thirty-five years. The almost ideal characteristics of this physiological buffer account for its popularity. Tris is not hydroscopic is easily dissolved in water, and is available in high purity. It does not precipitate calcium salts, is stable in solution at room temperature for months, and does not appear to inhibit many enzyme systems. During the late '60s, it was reported that incorrect pH readings were obtained when the reference sensor used to measure the pH of tris had a linen fiber liquid junction. This problem, though easily eliminated, has raised a number of questions concerning the proper reference for use with tris buffers. Additionally, because of the chemical and physical properties of tris buffers, improper use may lead to erroneous pH measurements. The purpose of this bulletin is to point out the possible sources of error and to recommend the most appropriate sensor system for pH measurement when tris buffers are used.

Effect of Chemical & Physical Properties of Tris Buffers on pH

Table I contains compositions, buffer values, dilution values, and an approximate temperature coefficient of tris buffer over its practical buffer range (pH 7 to 9). The data in Table I indicates that tris in the pH range frequently used for physiological measurements (pH 7 to 7.5) does not have a large buffering capacity. Therefore, caution should be exercised when using tris buffers to control sample pH. The rather large temperature coefficient of tris (- 0.028 pH/°C) also warrants consideration. For example, if a tris buffer is used to standardize a meter, and the tris temperature is 20°C, using the pH value at 25°C will result in an error of

Clearly, for best results, the temperature pH dependency must be used when standardizing with tris. It directly follows that when tris is used to control the pH of a sample, the degree of control will be dependent on sample temperature. If the sample temperature varies by 2°C, the pH control varies by approximately 0.06 pH units. The desired pH control will dictate the maximum allowable temperature fluctuations.

Tris is a primary aliphatic amine and can react with some samples. When tris is used to control sample pH, the possibility of a reaction with the sample should be considered. For example, tris forms a stable complex with Silver ion. The presence of Silver ion in the sample may rule out using tris to control the pH of the sample.

PH Measurements Using Tris Buffers

1. Use an sensor pair or combination with a ceramic or sleeve-type junction.
2. Calomel or Silver/Silver Chloride type references will be satisfactory for most measurements. However, the possibility of introducing heavy metal ions (Ag+, Hg22+) should be considered. This problem is less likely to occur when a calomel reference is used due to the lower solubility of Mercurous Chloride versus Silver Chloride. Introducing heavy metals into the sample can be eliminated by using a double junction system with either reference.
3. Tris buffers should be prepared from high purity tris and HCl using C02-free distilled or deionized water.
4. The pH of tris buffers is temperature dependent. For most accurate work, all solutions should be thermostated.

Table 1

COMPOSITIONS, BUFFER VALUES ß, AND DILUTION VALUES ApH I/2,
OF SOME TRIS BUFFER SOLUTIONS AT 25°C

50mL 0.1 M tris (hydroxymethyl)-aminomethane, x mL 0.1 M HCI,
Diluted to I00mL dpH/dt = – 0.028 unit deg.-1; I = 0.001X

a) From R.G. Bates, Determination of pH Theory and Practice, 2nd ed., p. 161, John Wiley and Sons; Inc., Now York, 1962.

References

1. R. G. Bates, Part 1. Physiochemical Properties of Amine Buffers, Amino Buffers for pH Control. Ann. N.Y. Acad. Sci., 92,341 (1961).
2. R. E. Benesch and R. Benesch, The Stability of the Silver Complex of Tris (Hydroxymethyl) Aminomethane, J. Am. Chem. Chem Soc., 77,2749 (1955).
3. J. H. Fossum ot. al., Tris (Hydroxymothyl) Aminomethane as an Acidimetric Standard, Anal. Chem. 23,491 (1951).
4. W. F. Koch et. al., Tris (Hydroxymethyl) Aminomethane - A Primary Standard?, Talanta 32,637 (1975).
5. Sigma Technical Bulletin 106B (3-72), Sigma Chemical Go., St. Louis, MO.

Suggested Readings

• N. E. Good et. al., Hydrogen Ion Buffers for Biological Research, Biochemistry 5,467 (1966).
• R.A. Durst and B. R. Staples, Tris/Tris HCI: A Standard Buffer for Use in the Physiologic pH Range, Clin. Chem. 18,206 (1972).
• R. G. Bates ot. al., pH Standard for Bood and Other Physiologic Media, Clin. Chem. 7,292 (1961).

Never store a pH sensor dry. The first choice for storing FermProbes is KCl solution. We recommend any concentration between 2.0 M and 3.8 M. Another good choice is buffer solution. A pH 4 buffer solution is best since it will keep longer, but pH 7 is also acceptable. If it is necessary to clean a FermProbe with acid, caustic, solvent or other cleaning solution, it is best to soak the sensor in KCl solution after cleaning and prior to use or calibration. This will re-condition the bulb and reference, extending the sensor life and improving calibration accuracy.

Remove Junction Coating

Plugged or Dry Junction

• Remove observed contaminant
• Place in KCI solution, 2M or stronger
• Heat slowly to 50ºC
• Let cool to room temperature
• Repeat 2 or 3 times if necessary

Proper Storage When Not In Service

Keep Bulb Hydrated

• Store in 2M KCl or stronger
• Use soaker bottles or storage containers
• Do NOT use D.I. water for storage

Cleaning

FermProbes which are physically intact can often be restored to an improved level of performance by one of the following cleaning procedures:

1. General: It is good practice to wash the tip of the sensor with a solution made from dish soap and/or enzyme detergent and warm clean water. An alternative is to use a caustic, such as Sodium Hydroxide, or CIP 100, typically a diluted solution with a pH of around 12 to 13 pH. Use a soft toothbrush or a clean soft cloth wetted in the solution to carefully scrub the tip of the sensor . Thoroughly rinse the sensor tip with distilled or D.I. water and soak in KCl solution, 2M or stronger, for a minimum of 30 minutes before recalibration or returning sensor to service. Do not store in distilled or D.I. water.
2. Inorganic Deposits: Try to dissolve deposit by immersing the sensor bulb in 0.1N Hydrochloric acid for a few minutes followed by a thorough rinse with D.I. or clean tap water. Then proceed with the general cleaning in Step 1 of this section.
3. Organic Oil, Grease Films or Fingerprints: Wash sensor bulb with the solution in Step 1 of this section. Wash the tip with acetone. Follow with the general cleaning procedure in Step 1 of this section. Note: Depending on the extent of the oil and/or grease contamination, the sensor may be damaged beyond recovery.
4. Plugged or Dry Ceramic Liquid Junction: Try at least one of the previous 3 steps in this section. Place the sensor in KCI solution, 2M or stronger. Heat slowly to 50ºC then let cool to room temperature. Repeat as necessary.

General Practice Information

1. Try to always store the sensor in KCl solution, 2M or stronger. Buffer solution of pH 4 is also acceptable. Do NOT store a sensor in distilled or D.I. Water.
2. Cracked or broken sensor are not repairable.
3. Inspect cable for cuts or other holes. Torn cable insulation or kinked and knotted cables can be the cause of poor performance. Inspect the connector for signs of corrosion.

Storage

1. Short-Term (hours/days): Immerse the sensor tip in KCI solution, 2M or stronger (Broadley-James Part No. AS-3120-C20-0500). Buffer solution of pH 4 is also acceptable. Do not store in distilled or D.I. water.
2. Long-Term (weeks or months): Fill storage container (BJC P/N: 301-P109-H070) or “soaker bottle” (BJC P/N: AM-1000) with KCI solution, 2M or stronger, and insert sensor. Wipe off any excess storage solution. Do not store in distilled or D.I. water.

pH Sensor Test Procedure

The purpose of this test is to determine if a pH sensor is functioning within acceptable limits. The asymmetry potential (A.P) and slope (efficiency) can be used as guidelines to judge a sensor's performance. Typically a sensor is replaced when the A.P is greater than ±20 mV and/or the slope drops below 91%. Consideration should also be given to the sensor's speed of response. Please follow this step-by-step procedure to determine the performance of a sensor . Required test equipment includes 7.00 and 4.01 pH buffer solutions with a pH meter that has an mV readout.

1. Set the pH/mV switch on the pH meter to the mV position.
2. Connect a shorting plug to the input on the pH meter, or connect a precision mV generator with a 0 mV input. Adjust the standardize/zero control on the pH meter for a reading equal to 0.0 mV.
3. Disconnect the shorting plug/precision mV generator, and connect the sensor that will be tested.
4. Rinse the sensor thoroughly with DI water to remove all traces of storage solution, process medium, or previous test solution. Thoroughly rinse the sensor after each buffer test to prevent carry over contamination of the pH buffer solutions. Gently blot the sensor on a soft tissue to remove the excess rinse water. Do not rub the bulb since it can cause a static charge build-up.
5. Insert the sensor and the ATC (automatic temperature compensator) in 7.00 pH buffer solution. Allow 30 seconds for the sensor/ATC to reach thermal equilibrium with the buffer solution. Record the polarity and the mV reading. This is the asymmetry potential of the sensor. A perfect sensor would have an A.P equal to 0 mV, but most sensors read between ±30 mV. Note: If the meter does not have an ATC, place a thermometer along with the sensor in the 7.00 pH buffer solution. Allow 30 seconds for the pair to reach thermal equilibrium with the buffer. Adjust the temperature setting on the meter to correspond with the thermometer reading. Record the polarity and the mV reading to determine the A.P
6. Repeat Step 4, and insert the sensor and the ATC in a 4.01 buffer solution. Allow 30 seconds before recording the mV reading.
7. Determine the mathematical difference between the two mV readings. This is the sensor's span.
8. Divide the sensor's span by the theoretical span of 176.9 mV (at 25ºC) and multiply by 100. This determines the slope of the sensor.

Note: For best results, the pH buffer solutions should be used at 25ºC. Otherwise, record the temperature of the buffer and determine the temperature adjusted pH with the temperature coefficient charts printed on the buffer container.

Example: Download this calculator in an Excel file

Reading in a 7.00 pH buffer solution: -7.4 mV Reading in a 4.01 pH buffer solution: +164.6 mV

Asymmetry Potential = -7.4 mV Span = +164.6 - (-7.4) = 172.0 mV

Slope = Span = 172.0 mV

Theoretical Span 176.9 mV X l00 = 97%

Sensor Test Results:

Reading in a 7.00 pH buffer solution: ___________ mV (max/min range ±40 mV)
(Asymmetry Potential)

Span = ___________mV - ___________mV = ___________mV (min 150.4 mV)
(Reading in 4.01 pH) (Asymmetry Potential)

Slope = Span ÷ Theoretical Span (176.9 mV) X l00 = _______________% (min 85%)

Date Tested:______________ Initial:_______ Identification:_________________________________
(Sensor P/N, Vessel Location/No.)

All sensors have a finite life, and should be tested from time to time to determine acceptable performance.

Housings and FermProbe^® pH sensors are offered in a variety of lengths. This enables fermentation operators to select the optimum insertion length for the application at hand. The housing ordering information box lists the suitable sensor models and lengths for each particular housing style.

There is another way to match sensors to housings. Each housing length is given a letter classification, i.e. “A”, “B”, “C”. Each sensor length is given a similar letter classification. Any Class “A” pH sensor will fit any Class “A” housing listed in this catalog. Similarly, any Class “B” sensor will fit any Class “B” housing. By matching the classifications, the sensor and housing will match.

The class information is found in the ordering information box for any sensor or housing in this catalog. If the class letters are the same for any sensor and housing then the two can be used together. See the illustrated example below:

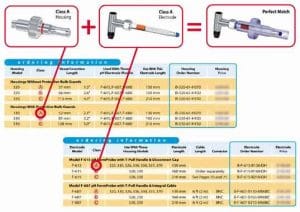

For a Perfect Match Every Time

1. Choose a housing for the vessel and application.
2. Note the class of the housing (i.e. A, B) in the ordering information box.
3. Choose a style and model of sensor (see opposite page).
4. Find the class of sensor that matches the class of the chosen housing.

Example

The sensor housing is designed to hold and protect the PH sensor while inserting it into the bioprocess vessel. There are various types of side entry ports and different groups of housings to fit each port type. The size and make of the port must first be identified in order to narrow the selection process.

The two most common types of entry ports found on pilot and production scale vessels are as follows:

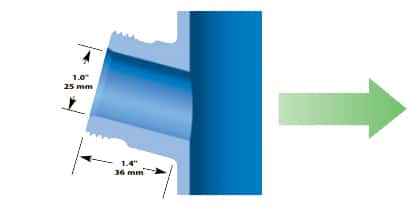

STANDARD 25 mm SIDE PORT

Found on nearly all vessels other than those manufactured by Sartorius^®. The port bore is 25 mm i.d. and the housing o-ring seals to the inside of the port.
The housing is then secured to the port by a threaded retainer ring. The port is installed at a 15° angle for better sensor performance. See the cutaway drawing to the right for typical installation dimensions.

Sartorius^® 25 mm SAFETY SIDE PORT

Found exclusively on vessels manufactured by Sartorius^®. This style of port is longer than the standard port and needs a special housing to fit correctly. (Note: The port opening on newer tanks is 30 mm i.d. and the port narrows down to 25 mm i.d. at the critical point where the housing o-ring seals to the inside wall of the port.) Again, the port is installed at a 15° angle for better sensor performance. See the cutaway drawing to the right for typical installation dimensions.

Additional sanitary installations

In addition to the standard types of entry ports featured above, there are other options for sanitary ports. These sensor housings are designed to hold and protect the pH sensor while insertion into sanitary pipe tees and NovAseptic's sanitary side ports. Both entry ports require a unique housing with a narrow front end. Specifically housing models 357 and 367.

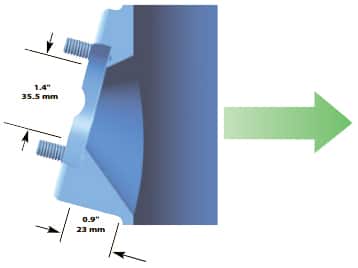

NOVASEPTIC SANITARY SIDE PORT

Sometimes found on vessels in biotech facilities, this style of port is flush to the vessel wall to minimize crevices. The unique design of the port offers increased drainage around the port and more effective Clean-In-Place (CIP).

The NA-connect^® port from NovAseptic is compatible with a special sanitary housing, which is secured to the port by a clamp. The port is installed at a 15° angle to allow for proper sensor performance. See the cutaway drawing to the right for typical installation dimensions.

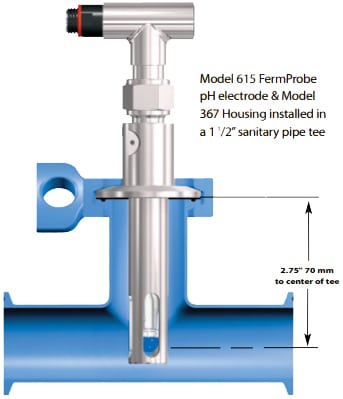

SANITARY PIPE TEE

In-line measurements in a sanitary pipe tee require sanitary flange housings. Since the sanitary gasket is the primary seal, no o-ring is required on the outer portion of the housing.
Commonly used in both the food and pharmaceutical industries, the Model 357 and 367 housings are suitable for sanitary pipe systems with CIP requirements. These housings are most often found in downstream processes such as purification.

The housings are secured into a sanitary pipe tee with a standard flange clamp sealed with a flange gasket. The pH sensor is then inserted into the housing for on-line measurements. When using a standard sanitary tee, the sensor is positioned such that the tip of the sensor is in the middle of the process flow.

A pH sensor must be at least 15° above horizontal to consistently function properly. DO NOT install sensors in a port perpendicular to the vessel wall. The liquid in the sensor contains small air bubbles. If not inclined slightly above horizontal, a bubble can adhere to the pH bulb where it will affect the sensor’s performance.

To yield the most accurate pH measurement, it is important to compensate for temperature. Temperature has two significant effects on pH readings. The solution pH and the sensor output will both change at different temperatures. These two effects, either together or separately, can lead to errors in calibration, measurement and control.

1. Always use fresh buffer. The pH of buffers will change quickly due to air, dilution and carry-over.
2. After rinsing a pH sensor between buffers, blot the sensor dry, do not wipe it. Rubbing the sensor can build up a static charge, just like rubbing your feet on the carpet. This charge can prevent proper calibration. (If this happens, wait and let the sensor stand in solution so the charge can dissipate.)
3. Always consider the effects of temperature on the measurements. Many pH measurements are temperature dependent. Please call us for a copy of our newsletter on temperature compensation and pH measurements.

All pH sensors (and DO sensors) can be mounted vertically, into a vessel headplate. Sensors can also be installed on large vessels, through a side port. For side-entry installations, the sensor must be at least 15° above horizontal to insure proper operation. Remember, there is liquid inside all pH and DO sensors. This slight 15° incline is enough to prevent a bubble from lodging itself at the tip of the sensor, preventing the sensor from operating properly.

During storage, salt crystals will often form on the sensor, around the soaker bottle. Sometimes the formation is so extensive there will be crystals under the soaker bottle and on the foam inside the box. This will not affect the performance, accuracy or life of the sensor. Rinse off the crystals with water prior to use.

FermProbes can be stored up to one year from date of shipment, with no appreciable change in their performance or expected service life. It is recommended to rotate inventory regularly and to follow FIFO (First-in, First-out) inventory management practices to avoid retention of aging sensors.

Over time, the high temperatures of sterilization will discolor the gel in a FermProbe. This is often referred to as caramelisation. It is normal, and in no way affects the performance of the sensor. This color change can also be used to approximate the age of the sensor.

Typically a benchtop application is less than 5L, and uses a glass vessel or flask. Usually the entire vessel can be placed or wheeled into an autoclave for sterilization prior to a run. Not only is there a range of different vessel sizes used in benchtop bioprocess applications, but also the volume of the media in the vessel will often change during the process. Accordingly, the sensors for benchtop vessels are available in a wide variety of lengths. The operator must choose a sensor length that ensures the sensor tip is submerged at all times during operation. Some sensor models have been configured to thread directly into the headplate and various access ports found on small vessels. Detachable cables and other design features allow these products to withstand the demands of autoclaving requirements.

The sensor housing is designed to hold and protect the pH sensor while inserting it into the bioprocess vessel. There are various types of side entry ports and different groups of housings to fit each port type. The size and make of the port must first be identified in order to narrow the selection process.

The most common types of entry ports found on pilot and production scale vessels are as follows:

Standard 25mm Side Port

Found on nearly all vessels other than those manufactured by B. Braun Biotech. The port bore is 25 mm i.d. and the housing o-ring seals to the inside of the port. The housing is then secured to the port by a threaded retainer ring. The port is installed at a 15° angle for better sensor performance. See the cutaway drawing to the right for typical installation dimensions.

B. Braun Biotech 25 mm Safety Port

Found exclusively on vessels manufactured by B. Braun Biotech. This style of port is longer than the standard port and needs a special housing to fit correctly. (Note: the port opening on newer tanks is 30 mm i.d. and the port narrows down to 25 mm i.d. at the critical point where the housing o-ring seals to the inside wall of the port.) Again, the port is installed at a 15° angle for better sensor performance. See the cutaway drawing to the right for typical installation dimensions.

Preface: There are potential problems when comparing a laboratory pH analysis or grab sample measurement with on-line pH measurement. In order to obtain reliable data when making comparisons between these two types of pH measurements, it is essential that the proper apparatus and procedures be incorporated as outlined below:

Apparatus: There are many types of pH sensors and pH meters used in the laboratory and the proper selection of this equipment is important. In order to obtain valid comparative data, the lab grab-sample pH equipment used must be as capable as the on-line pH equipment.

1. Lab pH Meter — A top quality pH meter, portable or benchtop design, with automatic temperature compensation and an input impedance greater than 1012 is required. The direct readout of the pH sensor output signal in mV is a desired feature for this pH meter.
2. Lab pH sensor — Many lab pH sensors are not suitable for making comparative measurements due to their physical design, their electrochemical design (e.g. type of glass membrane, type and viscosity of reference electrolyte, number of salt bridges), type of element (e.g. Ag/AgCl or Hg/Hg2Cl2), and the type, size, and material of construction used for the reference liquid junction.

A lab or grab sample pH sensor should be selected which closely matches all of the design characteristics of the pH sensor used in the on-line pH sensor. Often times the same design of sensor or sensor used in the process is also used for the lab grab sample. Many lab pH sensors will not tolerate the on-line process conditions or the rugged handling required to obtain a 'representative' grab sample. The difference in the performance of two dissimilar sensor designs will contribute to a difference in the pH readings obtained. When combined with the concerns listed below, this can add up to a significant comparison 'error'.

Considerations: Following a simple, but rigorous procedure every time will improve the repeatability in the data obtained from comparative grab sample and on-line pH measurements. Disagreements between these two comparative pH measurements are often caused by:

1. Temperature — In addition to the automatic temperature compensation, care should be taken to ensure that the temperature of the grab sample is kept at the exact temperature as the on-line process temperature. Each process media may have a significant pH temperature coefficient depending upon its chemical constituency. The pH value of a given solution may change due to a change in the grab sample temperature (i.e. the automatic temperature compensator device does not correct for this). Avoid time delays between grabbing the sample and measuring its pH value.
2. Volatile Constituents — Grab samples, when exposed to the atmosphere, will permit the off-gassing of any volatile constituents which could alter the pH of the grab sample. When this is a concern, grab samples should be collected in a properly designed and sealed chamber which contains the sample’s pH and T.C. sensors . Time delays between grabbing the sample and measuring its pH value should be avoided.
3. Atmospheric Contamination — Permitting the grab samples with a pH greater than 7.0 to be exposed to the CO2 in the atmosphere could result in the additional formation of carbonic acid in the sample, resulting in a lowering of the sample's pH value. This situation most often occurs when the grab sample is first taken in an open container or when the lab pH sensors are introduced to the sample after opening a sealed container. Standard laboratory practices often call for the sample to be stirred before and/or during the measurement of its pH value. If stirring occurs in an open container, volatile constituents will off-gas and CO2 will be absorbed.

pH Calibration Technique: When a grab sample pH measurement is used to calibrate or validate the on-line pH measurement, the technique used should not introduce an error. The most common cause found for discrepancies between grab sample and on-line pH measurements is a faulty technique. The following pH calibration technique is recommended:

1. The laboratory pH measurement equipment should be routinely verified by performing a two-point pH buffer calibration.
2. The on-line pH measurement equipment should receive a two-point pH buffer calibration when first put into service or when the pH sensors are replaced.
3. Record the on-line pH meter reading at the same instant the grab sample is taken.
4. The grab sample pH should be measured without time delays.
5. Record the pH value of the grab sample and compare it to the on-line reading in step # 3 above.
6. Adjust the on-line pH meter for the change in pH measurements between the readings in steps #3 & #5. A common mistake is to adjust the on-line meter to read the same pH value as the lab meter. This would introduce a significant 'error' especially if there had been a time delay between the comparison pH readings during which the on-line pH value had actually changed.
7. Establish a limit for the allowable change in pH between the comparison pH measurements before the on-line pH instrument is to be adjusted (e.g. maximum allowable change in pH is < 0.1 pH unit). Attempting to adjust for smaller pH values (e.g. ±0.005 pH units) often introduces an error for the sake of 'fine tuning' the pH reading.

When small changes in pH readings occur and one is in doubt as to which pH reading is correct, we favor accepting the on-line pH reading since its measurement sensor is acclimated to the process conditions while the lab pH sensor is usually not.

Put the cap on the sensor before autoclaving it. This keeps the connector dry, which insures proper sensor performance.

pH Sensor Calibration Procedure

All pH sensors require calibration from time to time. A two point calibration characterizes a sensor with a specific pH meter. Once a sensor is characterized, the sensor/meter pair can be used to determine the pH of a solution. Please follow the step-by-step procedure outlined below to perform a two point calibration. A 7.00 pH buffer solution and a 4.01 pH buffer solution are required.

1. Rinse the sensor thoroughly with DI water to remove all traces of storage solution, process medium, or previous test solution. Thoroughly rinse the sensor after each buffer test to prevent carry over contamination of the pH buffer solutions. Gently blot the sensor on a soft tissue to remove the excess rinse water. Do not rub the bulb since it can cause a static charge build-up.
2. Insert the sensor and the automatic temperature compensator (ATC) in 7.00 pH buffer solution. Allow 30 seconds for the sensor/ATC to reach thermal equilibrium with the buffer solution. Adjust the pH meter with the standardize/zero control for a pH indication equal to 7.00.Note: If the meter does not have an ATC, place a thermometer along with the sensor in the 7.00 pH buffer solution. Allow 30 seconds for the pair to reach thermal equilibrium with the buffer. Adjust the temperature dial on the meter to correspond with the thermometer reading. Then adjust the pH meter with the standardize/zero control for a pH indication equal to 7.00.
3. Repeat Step 1, and insert the sensor and the ATC in a 4.01 buffer solution. Allow 30 seconds before adjusting the pH meter with the slope/span control for a pH indication equal to 4.01.
4. Repeat Steps 2 and 3 to maximize the precision of the calibration.

Notes:

• Always use fresh pH buffer solutions for the most accurate results.
• A 10.00 pH buffer solution may be substituted for the 4.01 pH buffer solution in Step 3. All pH buffer solutions above 7.00 pH are less stable and have a limited life. These high pH buffers will more readily absorb CO2 from the atmosphere and will typically change to a lower pH value when left open. For this reason, a 4.01 buffer solution is recommended to perform a reliable two point calibration. Also, the buffers should bracket the desired pH range.
• When a pH sensor is calibrated with an autocalibration meter, consult the meter’s operation manual for the required calibration procedure.

Is it possible to receive a "calibration certificate" for pH sensors?

Broadley-James^® sensors are tested in NIST-traceable buffer solutions and their output is measured to see if it falls within an acceptable range. If so, the sensor receives a Quality Assurance Certificate which specifies the performance criteria. However, the sensor is not "calibrated"; rather, it is proven to be "calibratable" when used together with a good quality instrument and known buffer solutions.

While a pH measurement system can be calibrated once installed in a lab or plant setting, a sensor by itself cannot. The sensor has to be placed in a buffer solution and connected to a pH meter in order for the system to be calibrated. And then, it is only the "system" that is calibrated, not the sensor independently. Any change in the characteristics of the system, and the calibration is lost.

Secondly, the calibration drifts with time, so frequent re-calibration of the system is necessary. In critical lab samples, calibrations are performed between each measurement, sometimes as often as hourly. In process applications it is sometimes done once per shift, once per day, or once a week. In either case, it is always the "system" which is calibrated, not the sensor. The sensor's output is never changed by the system calibration; any changes attributable to calibration occur within the electronics of the instrument.

Then is it possible to receive a "calibration certificate" for an instrument, if purchased as a "system", complete with sensor?

Here the answer would still be "no", due to the variable nature of the system; it may or may not hold its calibration during shipment. in addition, it is always necessary to re-calibrate a system once it is installed where it will be used for actual measurements. So, "pre-calibration" is not possible.

The conventional approach is to verify the functionality of the instrument using electronic simulation. The sensor is compared to known standards, as described above. Given the acceptable performance of both instrument and sensor, it is a given that the two can be calibrated using NIST buffer solutions.

The McGraw-Hill Dictionary of Scientific and Technical Terms defines “accuracy” as:

“The extent to which the results of the readings of an instrument approach the true values for the measured quantities, and are free from error.”
This is not possible to do with pH or ORP (Redox) sensors, because they are not instruments, but sensors that only provide a value when combined together with an instrument. Then, it is the accuracy of the instrument and the solutions used to calibrate the instrument (buffers) that determines the accuracy of the system.

Unlike many sensors today, such as temperature, pressure, flow, etc., it is not possible to pre-calibrate pH sensors, so it is not possible to have an accuracy value. Each sensor needs to be matched to a specific instrument with buffer solutions. In laboratory tests the sensors have always been able to attain the maximum accuracy possible with a particular system. That is to say they are the “strongest link” in the measurement chain. If the instrument has an accuracy statement of ±0.01 pH units, and the buffers are specified as ±0.01pH units, and the procedures are followed properly, then the system and therefore the sensor, has an accuracy of ±0.01 pH units.

BJC sensors are tested in NIST traceable buffer solutions, and their output is measured to see if it falls within an acceptable range. If so, the sensor receives a Quality Assurance Certificate that specifies the performance criteria. However, the sensor is not checked for “accuracy”. Rather, it is proven to be “calibratable” when used together with a quality instrument and precise buffer solutions.

So, any pH sensor by itself is not accurate. To establish accuracy requires the simultaneous use of the sensor , pH meter and buffer solutions. Only when used concurrently with all of these components can accuracy be determined.

Is it possible to receive a “calibration certificate” for an instrument, if purchased with a sensor as a complete “system”?

Here the answer still turns out to be “no”. Due to the variable nature of the system; it may or may not hold its calibration during shipment. It is always necessary to re-calibrate a system once it is installed where it will be used for actual measurements. So, “pre-calibration” is not possible.

The conventional approach is to verify the functionality of the instrument using electronic simulation. The sensor is compared to known standards, as described above. Given the acceptable performance of both instrument and sensor, the two can be calibrated using NIST buffer solutions.

How long should a sensor last in storage?

Fermprobes can be stored for up to one year from date of shipment with no appreciable change in their performance or expected service life. After a year, the sensors are still good but their potential for optimum performance slowly erodes until they finally become totally non-functional. This would usually take many years of storage. Most customers try to rotate stock so sensors are put into service prior to one year from shipment, and this would be our strong recommendation for most customers.

How long should a sensor last in actual service?

Fermprobe pH sensors exhibit a fairly predictable "lifetime vs. temperature" performance ratio. The higher the temperature, the shorter the life; and, the longer the duration of exposure to elevated temperature, the shorter the life. Maximum temperature advisable is 135°C.

For example:

• A Fermprobe may last 40 sterilization cycles at 121°C for 30minutes. (20 hours at 121°C)
• A Fermprobe may last 20 sterilization cycles at 121°C for 60minutes. (20 hours at 121°C)
• A Fermprobe may last 20 sterilization cycles at 135°C for 30minutes. (10 hours at 135°C)
• A Fermprobe may last 10 sterilization cycles at 135°C for 60minutes. (10 hours at 135°C)

The actual service life attained will depend upon all other considerations, such as whether or not there is a CIP cycle (strong, hot caustics can dissolve the glass and the ceramic), whether or not the sensor is exposed to high pressure or fast flow rates, whether or not there are abrasives in the sample, etc.. Since there are so many variables and factors involved in determining sensor life, an operator can best determine the life for his particular vessel and set of conditions experimentally. By careful recording of when the sensors are installed and a statistical analysis of typical life, one can determine the optimum number of cycles.

There is a normal variance in sensor life and most operators of production vessels will search out a number, perhaps 10 cycles, that gives them a maximum confidence in the ability to run a cycle without failure. It is a helpful exercise to take the cost of the sensor and divide it by the number of cycles, then look at this "cost per cycle" to see if it is justifiable for a particular product.

The gel in a FermProbe^® is a non-toxic, USP grade, organic material. Other manufacturers may use different materials such as polyacrylamide. Please call us for more information or an MSDS.
