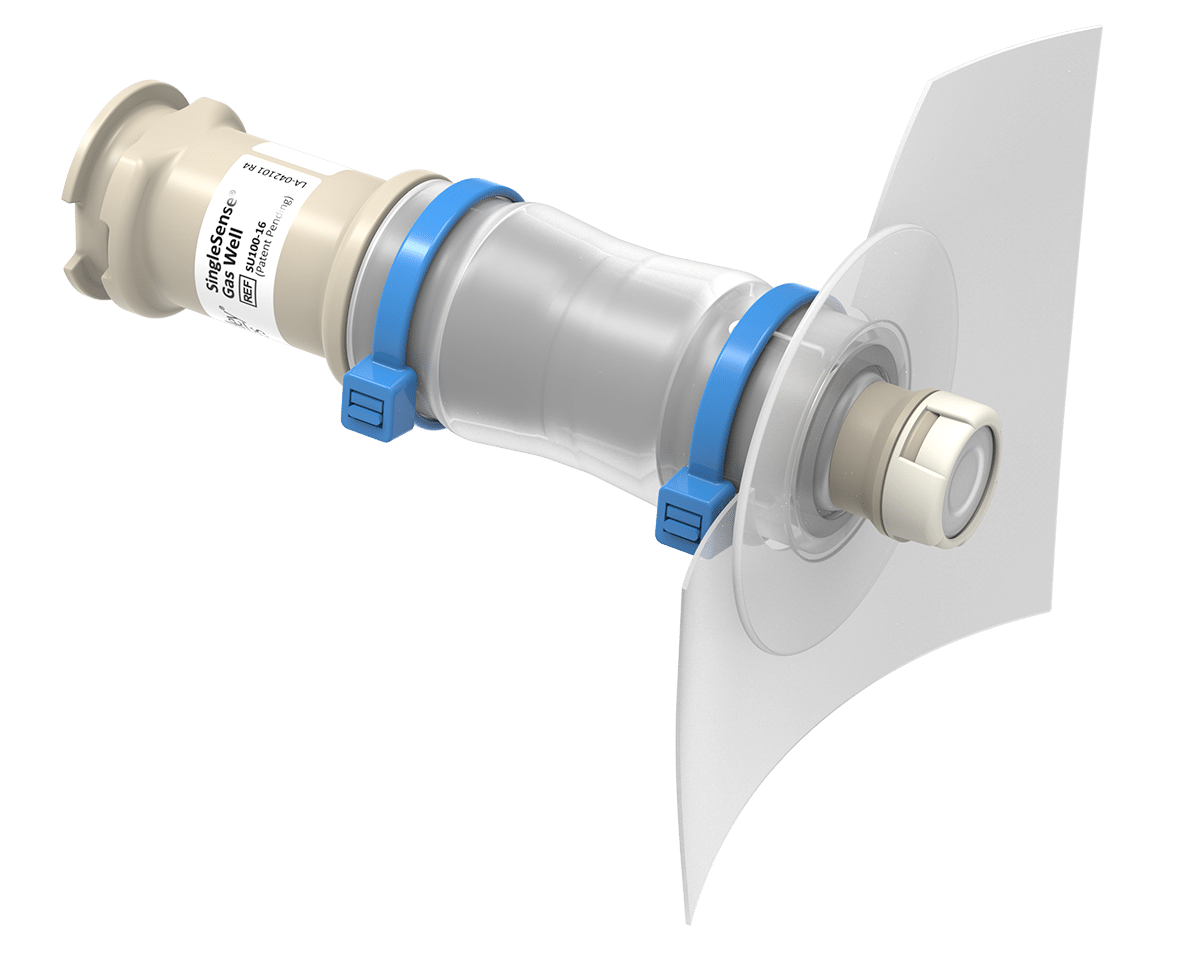

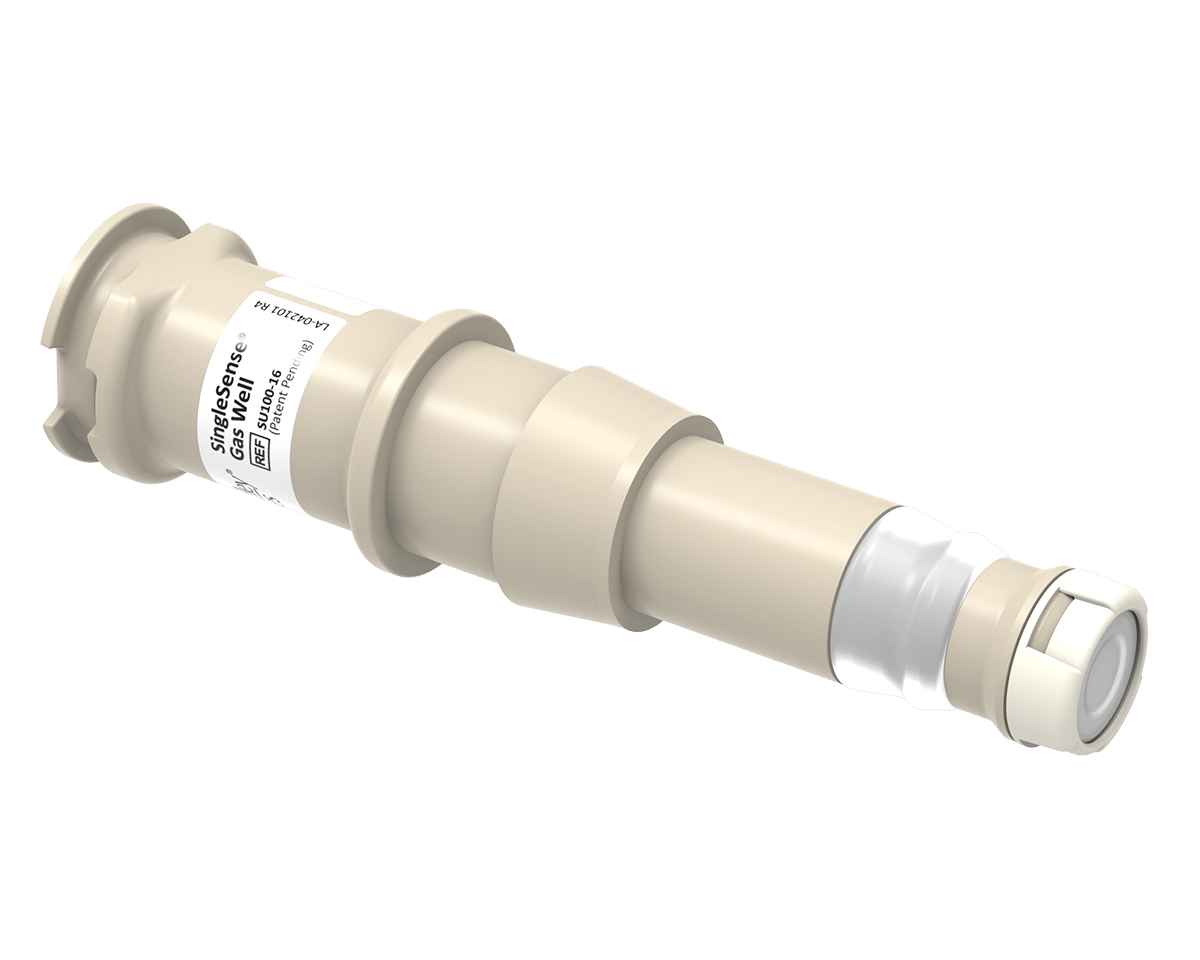

The SU100-16 SingleSense® Single-Use Gas Well is gamma sterilizable and designed for preinstallation into a bioprocess container (BPC) with a 1‑inch hose barb port. The gas well has a silicone rubber membrane that is steel mesh reinforced and gas permeable to O2 and pCO2.
The rugged, reinforced membrane is rated to 30 psig. The membrane provides a sterile barrier, eliminating the need to sterilize the DO or pCO2 sensor by autoclave. Avoiding steam sterilization of the sensor greatly lessens the risk of sensor damage.
Sensor Specifications
| Measurement Range | Not applicable |
| Operational Temp. Range | 15°–50° C [60°–122° F] |
| Storage Temperature | 5°–35° C [41°–95° F] |
| Shelf Life | 36 months Post Gamma: 30 months |
| Gamma Tolerance Level | 50 kGy |
| Sensor/Tubing Interface | 1-inch Hose Barb |
| Sensor Connector Cable | 8-pin Variopin |
