Application

In-Line

Description

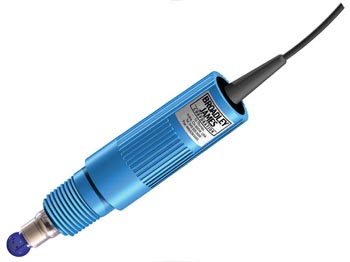

Fertigation pH Sensor
Combination glass pH electrode, 12 mm O.D.
Sealed Ag/AgCl reference with coaxial ceramic junction
Single junction reference design (1X)
3 metre (10 ft) cable, BNC Connector

Additional Notes:

Combination electrodes are designed such that both the pH measuring electrode and the reference electrode are built into one probe. Ease of handling and small size make this a very popular design.

pH sensor is threaded to fit directly into the pipe.

Part No.: C1121K-32A-A10BC

Standard 1/2″ Tee joint

Specification

pH Range: 0–13 pH

ORP Range: ± 5000 mV

Temp Range: -5º to 105ºC

Max Pressure/Temp: 100 psig at 100ºC, 150 psig at 25ºC

Reference System: Ag/AgCl

Reference Electrolyte: 3.8M KCl, Saturated with AgCl

Glass Membrane Type: HT-3, Low Sodium Ion error

Membrane Resistance: 100 Megohms

Zero Potential: 7.0 pH

Wetted Materials: Glass and Ceramic

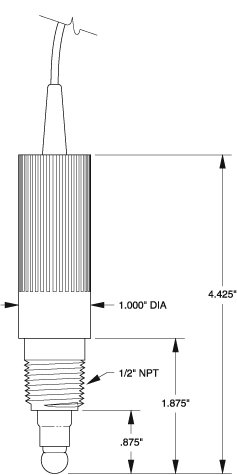

Cap: 1/2″ NPT

Connector: BNC Plug

Standard cable length: 3 metre (10 ft) low noise cable

One of the most common problems that growers encounter with pH sensors in agricultural applications is corrosion of the connectors due to moisture. If the connectors get wet, the output of the sensor will be shorted making calibration of the pH sensor impossible. To prevent the sensor from malfunctioning, it is very important to keep the connectors dry in a water-culture system.

Note: All sensors come standard with a 10 foot (3 meter) low noise coaxial cable and either a BNC Plug or a crimped Ferrule connector.

To order a sensor with the fully ferruled connector, simply change BC to FF at the end of any sensor part number.

Broadley-James pH Electrodes for Agricultural Applications are:

Economical

Broadley-James pH electrodes are a cost-effective component of hydroponics systems. Whether pH is measured as part of an in-line nutrient dosing unit or the pH of the hydroponics bays is tested manually, the affordable pH electrode is a vital part of a nutrient management system. Broadley-James pH electrodes can be used with nearly all systems that are available on the market. The company has more than two decades of experience in horticultural pH measurement and control applications.

Long Lasting

Broadley-James pH electrodes are durable and designed for maximum performance. With proper care and maintenance, Broadley-James pH electrodes will continually help maintain optimal growing conditions in hydroponics bays. Accurate measurement of pH is critical to provide precise pH control and dosing of the nutrients to achieve the highest yields. Easy to maintain and exchange when needed, these pH sensors can be quickly replaced to minimize loss in production time.

Compatible

Broadley-James is the most complete source of replacement pH electrodes for hydroponics, and has an extensive selection of pH sensors to fit the most widely used systems. Whether using a conventional housing, the newer twist-lock housing, or measuring pH manually, Broadley-James has pH sensors that are compatible with all brands of electronics and controllers.

If you do not see your style of pH sensor pictured here, call a Broadley James representative today for further assistance.

High Pressure In-Line pH Sensor with Integral Housing

Ordering Information
