ST951 DynaProbe Industrial pH Sensor with Solution Ground

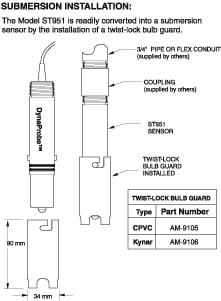

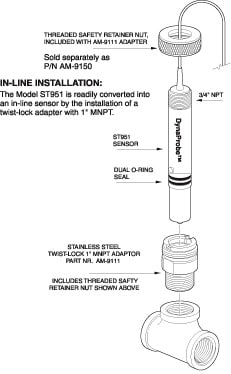

The ST951 is a rugged, sealed industrial pH sensor assembly with built in solution ground, designed for in-line or submersion applications in most industrial measurements, including waste water. They have proven ability to outperform conventional sensors in the toughest process applications. The patented solid state reference cell features the unique IonTrap™ design for extended service life in the most severe applications. The body is moulded from chemically resistant Ryton (PPS) and the reference junction is either porous Teflon or wood. Built-in temperature compensators are available. Optional sensor guard locks onto the front of the sensor and protects the sensor tip from impact. Sensor also available in Redox (ORP) version.

Specification

pH Range: 0-14 pH

ORP Range: ± 5000 mV

Temp Range: 0 -120º C

Max Pressure/Temp: 50 psig at 120º C

Reference: Ag-AgCl

Wetted Materials: Ryton, Teflon, Glass and Viton O-rings

Standard cable length: 3 metres (10 Ft)

ST851-2

Please use this information to build your part number. If you need any assistance please call us on +44 (0) 1525 862 518.
Part No.	1	2	3	4	–	5	6	7	8	9
ST-951	__	__	__	__	–	__	__	__	__	__

1 — Liquid Junction

[W] Recessed Coaxial Wood
[T] Coaxial Teflon
[R] Recessed Coaxial Teflon

2-3 — Measurement Electrode

[33] pH, HT-3 Rugged Dome Bulb
[43] pH, HT-4 High pH bulb (for pH 13 and above)
[17] pH, GP Flat Bulb (available only with style “T” Teflon Junction) (100ºC Max. Temp.)
[PB] ORP, Platinum Band

4 — Temperature Compensator: (for direct input into following manufacturer’s preamp/instrument)

[0] T.C. not required
[1] 3K Ohms for most older Models of TBI/Bailey, Uniloc, and other US manufacturers
[D] Pt 100 Ohms for Beckman Model SoluComp, TBI/Bailey (ABB) TB82 & TB84, Uniloc 1054, Foxboro 870 & 874, Yokogawa, and most European Models
[H] Pt 1000 Ohms for Yokogawa, Conducta, Polymetron, LTH, & many European models

5 — Cable Type:

[N] Jacketed L-N Coax w/ Solution Ground and TC leads

6-7 — Cable Length:

[07] 7 ft. is standard length
[XX] Specify length (in feet) above 7 ft. standard length

8-9 — Required Sensor Connectors:

[B5] BNC with MOLEX on T.C. leads (use w/TBI connections)
[FB] BNC for pH and ferrules on all other leads (for use with Terminal Block or Terminal Strip)
[FF] All Ferrule connectors ( for use with Terminal block or Terminal Strip)
