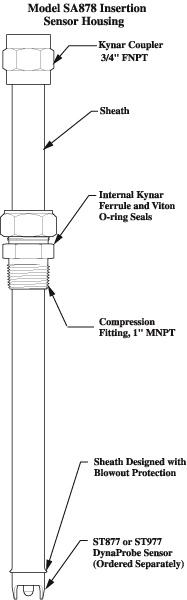

An assortment of insertion lengths are available from 2 inches to 27 inches. Viton O-ring seals are incorporated throughout this housing to prevent damage to the sensor and to prevent process seepage during normal operation. The sheath is designed with blowout protection while operating under pressure. The SA878 sensor housing is designed with replaceable components providing simple and economic servicing. A completely illustrated instruction manual is supplied with each Model SA878.

Specification

pH Range: 0-14 pH (w/DynaProbe)

ORP Range: ± 5000 mV (w/DynaProbe)

Temp Range: 0 -120º C

Max Pressure/Temp: 100 psig at 90º C

Wetted Materials: 316 SS, Kynar (PVDF), and Viton O-Rings, with an optional Titanium Sheath version available

ST877 or ST977 DynaProbes must be ordered separately

DynaProbe^® pH and ORP Sensors must be Ordered Separately. Select the DynaProbe^® sensor for pH or ORP (Redox) measurement which is compatible with the host pH/ORP Instrument. A wide selection of DynaProbe^® sensors both with and without automatic temperature compensation are available for most makes and models of pH/ORP instruments. Refer to the ST857 DynaProbe^® Data Sheet for detailed ordering information or call +44 (0) 1525 862 518 for assistance.

DD878-c

Please use this information to build your part number. If you need any assistance please call us on +44 (0) 1525 862 518.
Part No.	1	2	3	4	–	5	6	7
SA-878	__	__	__	__	–	__	__	__
