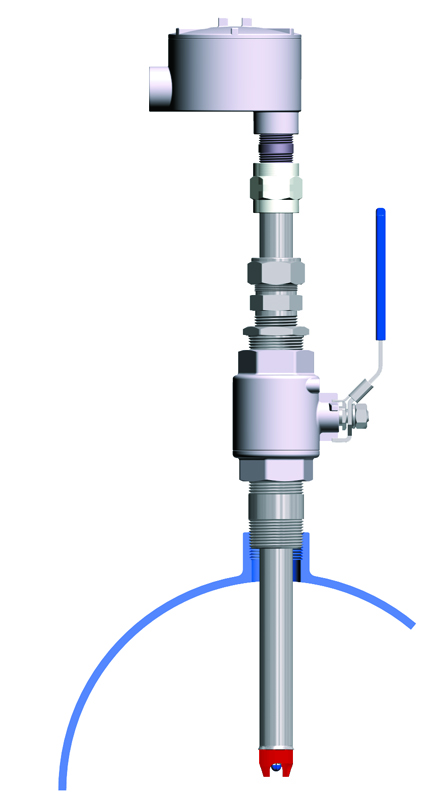

An assortment of insertion lengths are available from 2 inches to 27 inches. Viton O-ring seals are incorporated throughout this housing to prevent damage to the sensor and to retard process seepage during insertion and retraction procedures. The sheath is designed with blow-out protection, should the compression fitting be loosened at the process operating pressure. The SA857 sensor housing is designed with replaceable components providing simple and economic servicing. A completely illustrated instruction manual is supplied with each Model SA857.
Specification
pH Range: 0-14 pH (w/DynaProbe)
ORP Range: ± 5000 mV (w/DynaProbe)
Temp Range: 0 -120º C
Max Pressure/Temp: 100 psig at 90º C
Wetted Materials: 316 SS, Kynar (PVDF), and Viton O-Rings, with an optional Titanium Sheath version available
