The C3030 is a potentiometric dissolved CO2 (pCO2) sensor designed for use with the SU100 series BPC gas wells. The sensor performs continuous measurement behind the rugged, sterile, steel-mesh reinforced membrane barrier of the gas well, eliminating the need to heat sterilize the sensor. The sensor has no wetted materials as the gas well prevents the sensor from direct contact with the BPC media.
The C3030 millivolt output is compatible with all millivolt input pCO2 transmitters and similar instrumentation. The sensor output can be converted to Modbus RTU with a SmartSync™ signal conditioner.

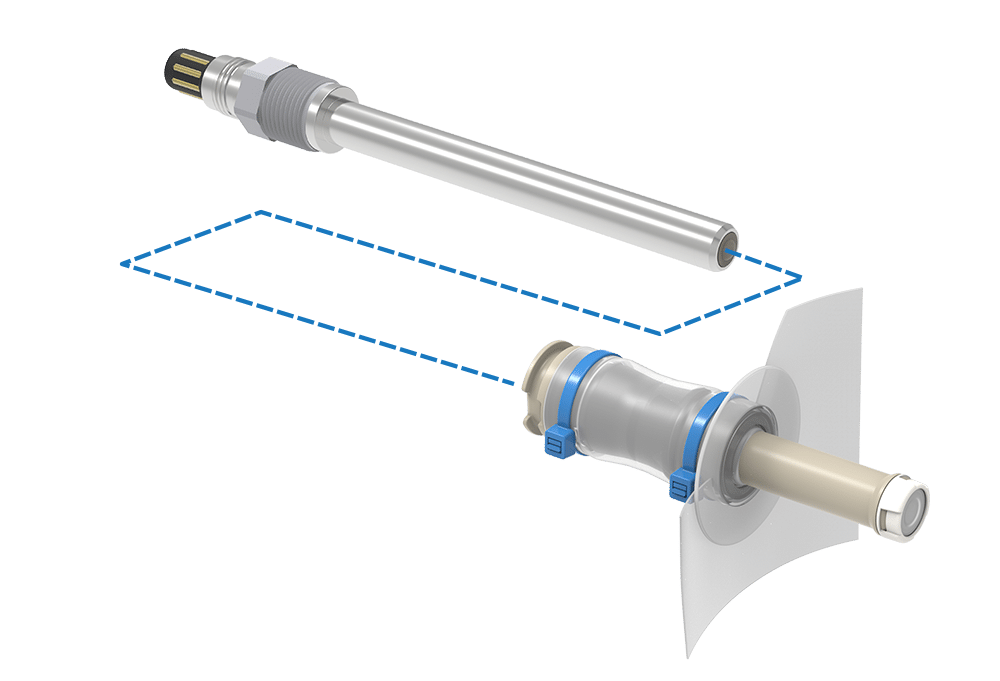

The C3030 threads directly into any SU100 series BPC gas well using the sensor’s Pg13.5 threaded fitting. Hand tightened. No tools needed.
|Measurement Range||0–30% SAT [0–250 mmHg]|
|Operational Temp. Range||5°–50° C [41°–122° F]|
|Pressure Range||0–5 bar|
|Response Time:||T90 < 100 seconds at 37° C|
|Accuracy||+8% of reading|
|Sterilization Temperature||Not heat sterilizable. For use only with SU100 series single-use BPC gas wells.|
|Insertion Length||120 mm|
|Sensor/BPC Gas Well Interface||Pg13.5 Threads|
|Sensor Connector||8-pin Variopin|
|Power Supply||Not applicable|
|Storage Temperature||5°–35° C [41°–95° F]|
|Shelf Life||60 months|
